C Band 100G DWDM Mux Demux Module , 8 Channel Mux With Plastic Box

Product Details:
Place of Origin: China
Brand Name: HILINK
Certification: CE FCC Rohs
Model Number: HL-DW-Mux-Nch
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Box & carton or customized package
Delivery Time: 1-6working days
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 5000pcs/month
  • Detail Information
  • Product Description

Detail Information

Product Name: DWDM Mux Demux Module Channel: 4/8/16/18/22/32/40CH
Connector: SC FC LC/PC Logo: Can Be Customized
RoHS: Compliant Warranty: 1 Year
High Light:

dwdm multiplexer

,

dwdm filter

Product Description

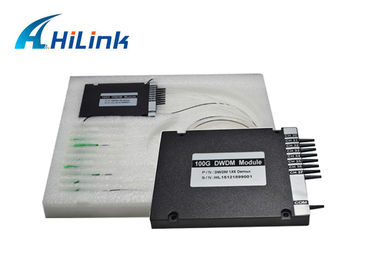

C Band 100G DWDM Mux Demux Module , 8 Channel Mux With Plastic Box





1. Features:


High Channel Isolation

Low Insertion Loss

Optical Path Epoxy Free

Telcordia 1221 Compliant

Ultra Low TDL

Compact Design

DWDM MUX is based on the use of the wavelength ITU grid

C Band

Channel spacing: 0.8nm(100GHz Grid)
Protocol transparent (10Mbps to 100Gbps)
Compliant to G.657A1 standard
ISO 9001 manufacturing facility
Wide Operating Temperature: -40~+85℃







2. Applications

Dense WDM System

PON Networks

CATV Links

Telecommunication

Fiber optical amplifier

Metro/Access/FTTH







Performance Specifications



1×N DWDM Mux/Demux Module

Parameters
Channel Space (GHz) 100 200
Channel Number 1*4 1*8 1*16 1*4 1*8 1*16
Center Wavelength (nm) ITU Grid
Center Wavelength Accuracy (nm) ± 0.05 ± 0.1
Channel Passband (@-0.5dB) (nm) 0.22 0.5
Fiber Type SMF-28e with 900um loose tube or customer specified
IL (dB) 1.8 3.0 4.0 1.7 2.9 3.8
Passband Ripple (dB) 0.35 0.4 0.5 0.35 0.4 0.5
Isolation (dB) Adjacent Channel 25 28
Non-Adjacent Channel 40
PDL (dB) 0.2
PMD (ps) 0.1
RL (dB) 45
Directivity (dB) 50
Maximum Optical Power (mw) 300
Operating Temperature (°C) -40~85
Storage Temperature (°C) -40~85
BOX Package (mm) 100*80*10 or 140*115*18
LGX Package 1U,2U
19’’ Rack mount Package 1U



above specification are for device without connector.




Order Information

CWDM Channel Configuration 1st Channel Fiber Type Fiber Length Connector
  16=16 Channel M=Mux
D=DeMux
51=1510nm
53=1531nm
55=1551nm
57=1571nm

L=900um loose tube



S=2.0mm loose tube



R=3.0mm loose tube

1=1M 00=None
FC=FC/PC FA=FC/APC
SC=SC/PC SA=SC/APC
ST=ST/PC
LC=LC/PC

2~44Channels available.
Com port: simplex or duplex.
Fiber connector: LC/SC or other.
Package: ABS plastic box, LGX metal cassette box, 19inch rack mount.
DWDM Solutions and DWDM SFP/XFP.
