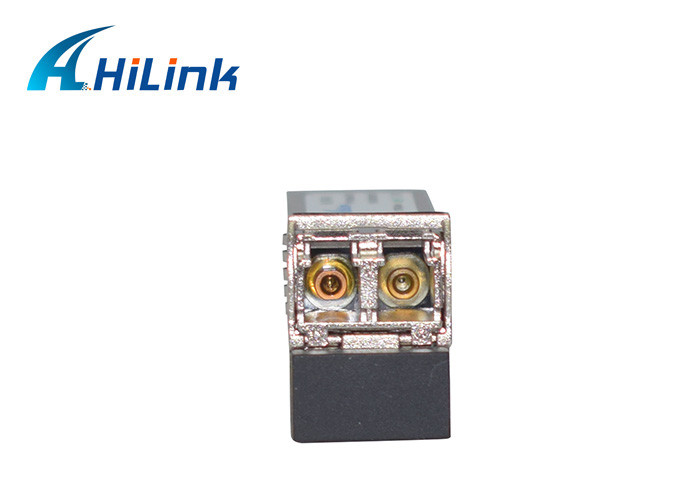

Name: 10GBASE-SR CISCO SFP+ Compatible SFP-10G-SR Multimode SFP+ Transceiver Module
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: HL85B60910024
Price: 893.00 USD
Availability: InStock

Home > Products > SFP+ Transceiver Module >

10GBASE-SR CISCO SFP+ Compatible SFP-10G-SR Multimode SFP+ Transceiver Module

sfp+ optical module

10g sfp+ module

Place of Origin:

Guangdong, China

Brand Name:

HILINK

Certification:

CE FCC Rohs

Model Number:

HL85B60910024

Request A Quote

10GBASE-SR CISCO SFP+ Compatible SFP-10G-SR Multimode SFP+ Transceiver Module

Product Details

Wavelength:

850nm

Date Rate:

Distance:

150m

Form Type:

Sfp+

Cable Type:

Multimode Fiber

TX Power:

-6~-1dBm

Receiver Sensitivity:

<-11.1dBm

DDM:

Yes

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Price

Negotiable

Packaging Details

Blister Packaging, 10pcs/ tray

Delivery Time

1-3 days

Payment Terms

T/T, Western Union

Supply Ability

1000pcs/ week

25Gb/s SFP28 BIDI 60km 1295/1309nm LC DDM Transceiver

Get Best Price

Video

10G-ZR4-80KM 10G BIDI Transceiver Module 80KM 1490nm/1550nm SFP+ STM-64 WDM 8SFP+ SMF

Get Best Price

HL-SFP-BX-10KM 10G SFP+ Transceiver Module BIDI 20km 1270nm 1330nm LC Connector RoHS

Get Best Price

BIDI 10G WDM SMF Optical Transceiver SFP+ 100KM Tx1490nm/Rx1550nm with LC Fiber Optic Transceivers for FTTH Networks

Get Best Price

Contact Now

Product Description

The Hilink 10GBASE SFP+ modules offer customers a wide variety of 10 Gigabit Ethernet connectivity options for data center, enterprise wiring closet, and service provider transport applications.It is a mallest 10G form factor

Supports 10GBASE Ethernet and OTU2/OTU2e

Hot-swappable input/output device that plugs into an Ethernet SFP+ port of a switch. Provides flexibility of interface choice .Supports "pay-as-you-populate" model. Supports digital optical monitoring capability

Cisco Compatible	HL-SFP-10G-SR	Vendor Name	Hilink
Form Type	SFP+	Max Data Rate	10Gbps
Wavelength	850nm	Max Cable Distance	300M
Interface	LC duplex	Optical Components	VCSEL 850nm
Cable Type	MMF	DOM Support	Yes
TX Power	-6~-1dBm	Receiver Sensitivity	<-11.1dBm
Commercial Temperature Range	0 to 70°C (32 to 158°F)	HTS-Harmonized Code	8517706000

Features

10Gb/s serial optical interface compliant to 802.3ae 10GBASE-SR
Electrical interface compliant to SFF-8431 specifications for enhanced 8.5 and 10 Gigabit small form factor pluggable module “SFP+”
850nm VCSEL transmitter, PIN photo-detector
2-wire interface for management specifications compliant with SFF 8472 digital diagnostic monitoring interface for optical transceivers
Operating case temperature: 0 to 70°C
ll-metal housing for superior EMI performance
Low power consumption
Advanced firmware allow customer system encryption information to be stored in transceiver
Cost effective SFP+ solution, enables higher port densities and greater bandwidth
RoHS compliant

Form	Data Rate	Wavelength	Distance	Media Type	Interface
SFP+	10Gbps	850nm	300m	MMF	LC

Packing
1. Neutral Package 10 or 20 pcs/Plastic Tray.
2. According to Customer's request.

10GBASE-SR CISCO SFP+ Compatible SFP-10G-SR Multimode SFP+ Transceiver Module 0

Competitive advantage:

1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (CISCO/HP/Extreme/Juniper/H3C…)
4. OEM/ODM Customized label
5. Keep stock,Fast delivery

10GBASE-SR CISCO SFP+ Compatible SFP-10G-SR Multimode SFP+ Transceiver Module 1
