Name: Hot Pluggable 10G SFP+ DAC Cable For Storage Area Networks / Ethernet
Brand: HILINK
SKU: HL-SFP-H10GB-CU5M
Rating: 4.6 (189 reviews)

Home > products > Direct Attach Copper Cable >

Hot Pluggable 10G SFP+ DAC Cable For Storage Area Networks / Ethernet

dac copper cable

active copper cable

Place of Origin:

China

Brand Name:

HILINK

Certification:

CE FCC Rohs

Model Number:

HL-SFP-H10GB-CU5M

Request A Quote

Hot Pluggable 10G SFP+ DAC Cable For Storage Area Networks / Ethernet

Product Details

Data Transfer Rate:

10.5G

Length:

0.5m,1m,2m,3m,4m,5m

Connector:

SFP+/SFP+

Operating Temperature:

0°C To +70°C

Warranty:

1 Year

RoHS:

Compliant

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Price

Negotiable

Packaging Details

Static bag, Plastic bag, Retail box or by required

Delivery Time

3-7 working days

Payment Terms

T/T, Western Union, MoneyGram,Paypal

Supply Ability

5000pcs/month

100G DAC Direct Attach Cable QSFP28 To QSFP28 3M For Data Center

Get Best Price

QSFP DAC 40G Breakout Cable QSFP+ to 4 SFP+ For QDR Infiniband

Get Best Price

Video

25G DAC QSFP28 1M Passive Direct Attach Copper Cable 1M SFP Cable

Get Best Price

Customized Passive Direct Attach Copper Cable 40G QSFP+ to 4x10G SFP+

Get Best Price

86-755-8317-6243

Contact Now

Product Description

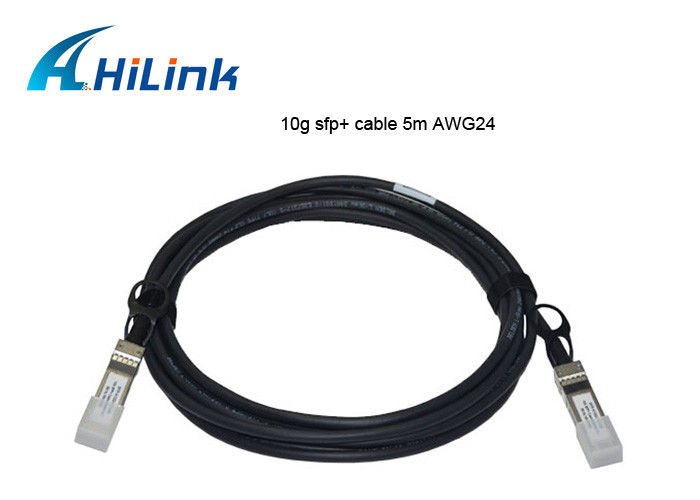

Hot Pluggable 10G SFP+ DAC Cable For Storage Area Networks / Ethernet

10G SFP+ passive cable assemblies are high performance, cost effective I/O solutions for 10G Ethernet and 10G Fiber Channel applications. SFP+ copper modules allow hardware manufactures to achieve high port density, configurability and utilization at a very low cast and reduced power budget. The high speed cable assemblies meet and exceed Gigabit Ethernet and Fiber Channel industry standard requirements for performance and reliability.

Features

Support for multi-gigabit data rates up to 10.5Gbps
Data rates backward compatible to 1Gbps
Hot-pluggable SFP 20PIN footprint
I/O Connector designed for high speed
Differential signal applications
Improved Pluggable Form Factor(IPF)
Compliant for enhanced EMI/EMC performance
Compatible to SFP+ MSA
Temperature Range: 0~ 70 °C

Specification

Cisco Genuine	SFP-H10GB-CU*M	Vendor Name	Hilink
Connector Type	SFP+ to SFP+	Max Data Rate	10Gbps
Cable Type	Passive Copper Cable	Wire AWG	AWG30/AWG24
Cable Length	0.5m-5m	Jacket Material	PVC(OFNR)
Temperature	0 to 70°C	Compatibility	Cisco/Huawei/Mikrotik etc

Applications

10Gigabit Ethernet
Data center cabling infrastructure
High capacity I/O Storage Area Networks
Storage Area Networks( SAN)
Network Attached Storage
Storage Servers
1G/2G/4G/8G Fiber Channel
High density connections between networking equipment

10G SFP+ Copper Cables

Part Number	Description
SFP-H10GB-CU1M	SFP+ Direct Attach Passive Cable 1m, 0ºC ~ +70ºC
SFP-H10GB-CU2M	SFP+ Direct Attach Passive Cable 2m, 0ºC ~ +70ºC
SFP-H10GB-CU3M	SFP+ Direct Attach Passive Cable 3m, 0ºC ~ +70ºC
SFP-H10GB-CU4M	SFP+ Direct Attach Passive Cable 4m, 0ºC ~ +70ºC
SFP-H10GB-CU5M	SFP+ Direct Attach Passive Cable 5m, 0ºC ~ +70ºC

Related Products:

SFP+ DAC cable for Cisco

for Cisco SFP-H10GB-CU1M, 10Gbps, SFP+ Twinax, direct-attach copper cable, 1-Meter

for Cisco SFP-H10GB-CU3M, 10Gbps, SFP+ Twinax, direct-attach copper cable, 3-Meters

for Cisco SFP-H10GB-CU5M, 10Gbps, SFP+ Twinax, direct-attach copper cable, 5-Meters

for Cisco SFP-H10GB-ACU7M, 10Gbps, SFP+ Twinax, active cable, 7-Meters

for Cisco SFP-H10GB-ACU10M, 10Gbps, SFP+ Twinax, active cable, 10-Meters
