10G XFP Transceiver 20km BiDi LC Network

XFP Transceiver
January 19, 2026
Category Connection: XFP Transceiver
Chat Now Contact Us
Tags:
#xfp fiber transceiver #xfp optical transceiver #xfp optical module
Brief: Get an inside view of features that deliver consistent results in daily use. This video provides a detailed walkthrough of the Hot Pluggable Simplex LC XFP Transceiver, demonstrating its bi-directional 10G data transmission over 20km. You'll see how this network transceiver operates with specific wavelengths and its compatibility with major brands like Cisco and Huawei.
Related Product Features:
  • Supports bi-directional 10G data transmission up to 10.3Gbps over single-mode fiber.
  • Features a simplex LC connector interface for efficient optical connectivity.
  • Hot-pluggable design allows for easy installation and removal without system shutdown.
  • Operates with specific wavelength pairs: TX1270nm/RX1330nm or TX1330nm/RX1270nm.
  • Includes optional digital diagnostics monitoring (DDM/DOM) for real-time performance tracking.
  • Compliant with IEEE 802.3ae 10GBASE-BX and MSA XFP specifications for interoperability.
  • Designed for reliable performance across operating temperatures from 0°C to 70°C.
  • Compatible with a wide range of networking equipment from Cisco, Huawei, Mikrotik, and others.
FAQs:
  • What is the transmission distance of this 10G XFP transceiver?
    This BiDi XFP transceiver supports a transmission distance of up to 20 kilometers over single-mode fiber.
  • Is digital diagnostics monitoring (DDM) available on this transceiver?
    Yes, digital diagnostics monitoring (DDM/DOM) is available as an optional feature, allowing for real-time performance tracking via a 2-wire serial interface.
  • Which networking brands is this transceiver compatible with?
    The transceiver is compatible with a wide range of equipment from major brands including Cisco, Huawei, Mikrotik, and others, ensuring broad interoperability.
  • What are the operating temperature ranges for this transceiver?
    It operates within a standard temperature range of 0°C to +70°C, with industrial grade options available from -40°C to +85°C for harsh environments.
Related Videos

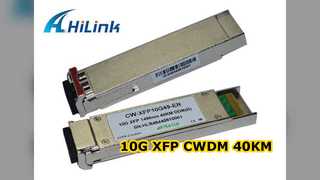

10G XFP CWDM Module 40KM 1490nm LC DDM 00:03

10G XFP CWDM Module 40KM 1490nm LC DDM
XFP Transceiver
January 19, 2026

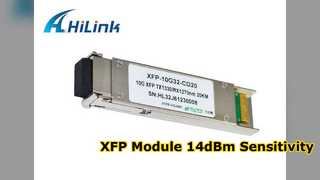

XFP Module Gigabit Ethernet -14dBm Receiver 00:06

XFP Module Gigabit Ethernet -14dBm Receiver
XFP Transceiver
January 19, 2026

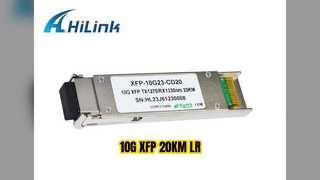

10G XFP Transceiver 20KM LR Module 00:06
