Place of Origin:
Guangdong, China
Brand Name:
HILINK
Certification:
CE FCC Rohs
Model Number:
HL-SFP-10G-ER

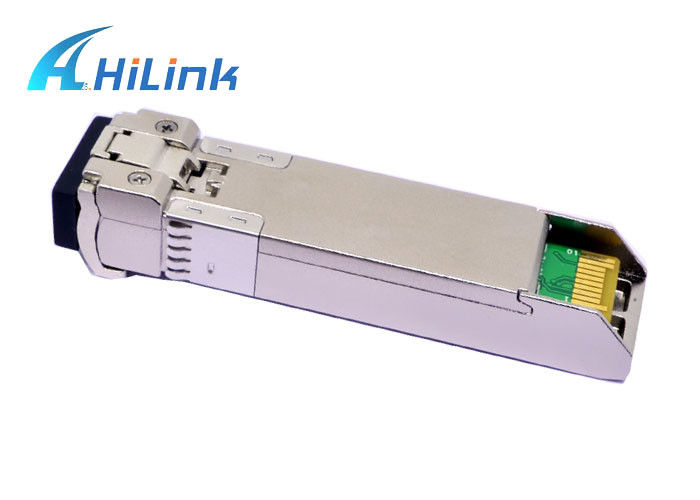

Mikrotik 10G 1550nm 40Km DDM SFP+ Transceiver Module ER Duplex LC Connector
Feature
● Duplex LC Connector
● Support hot-pluggable
● Metal with lower EMI
● Excellent ESD protection
● 1550nm EML Transmitter and PIN Receiver
● Typical Center Wavelength:1550nm
● Max link length up to 40Km on SMF
● RoHS Compliant and Lead-Free
● Digital diagnostic compatible with SFF-8472
● Case Operation Temperature:-5℃~+70℃
● Single 3.3V power supply and Low power dissipation
Application
● 10GBASE-ER/EW 10G Etherne
● Other optical link
Description
SFP+ ER transceiver is specifically designed for the high performance integrated duplex data transmission over single mode optical fiber. This transceiver module is compliant with
Enhanced Small Form Factor Pluggable Module SFP+ Multisource Agreement (SFF-8431).This transceiver type is specifically optimized for transport of serial data at 10.3125Gbps.
SFP+ Transceivers
| Cisco Part Number | Application | Data Rate | Wavelength | Distance |
Connector Type |
| SFP-10G-SR | SFP+ 10GBASE-SR | 10G | 850nm | 300m | LC |
| SFP-10G-LR | SFP+ 10GBASE-LR | 10G | 1310nm | 10km | LC |
| SFP-10G-LRM | SFP+ 10GBASE-LRM | 10G | 1310nm | 220m | LC |
| SFP-10G-ER | SFP+ 10GBASE-ER | 10G | 1550nm | 40km | LC |
| SFP-10G-ZR | SFP+ 10GBASE-ER | 10G | 1550nm | 80km | LC |
Product Details
| Item No. | SFP-10G-ER | Vendor Name | Hilink |
| Form Type | SFP+ | Max Data Rate | 10Gbps |
| Wavelength | 1550nm | Max Cable Distance | 40KM |
| Interface | LC duplex | Optical Components | EML1550nm |
| Cable Type | SMF | DOM Support | Yes |
| TX Power | -3~3dBm | Receiver Sensitivity | < -15.8dBm |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) | HTS-Harmonized Code | 8517706000 |
