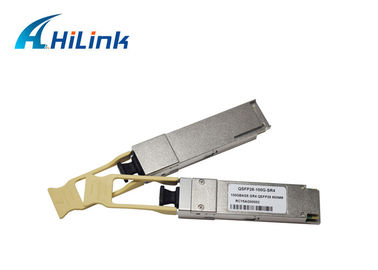

100G 850nm Wavelength QSFP+ Transceiver , PIN Receiver QSFP Optical Module

100G 850nm Wavelength QSFP+ Transceiver , PIN Receiver QSFP Optical Module

qsfp transceiver module

qsfp optical module

Place of Origin:

Guangdong, China

Brand Name:

HILINK

Certification:

CE FCC Rohs

Model Number:

QSFP28-SR4 100G

Contact Us
Request A Quote
Product Details
Transmitter:
4x VCSEL
Voltage:
3.3v
Wavelength:
850nm
Diagnostics:
N/A
Connector Type:
MPO
Temperature:
0-70
Receiver:
PIN
Distance:
100M
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
Blister Packaging, 10pcs/tray
Delivery Time
3-6 days
Payment Terms
T/T, Western Union
Product Description

100G 850nm QSFP+ MPO Optical Transceiver QSFP28-SR4 With DOM Function



Hilink's 100G QSFP28 transceiver modules are designed for use in 100 Gigabit Ethernet links over multimode fiber. They are compliant with the QSFP28 MSA and IEEE 802.3bm 100GBASE-SR4 and CAUI-4. Digital diagnostics functions are available via the I2C interface, as specified by the QSFP28 MSA and Finisar Application Note AN-2141. The optical transceiver is compliant per the RoHS Directive 2011/65/EU.



Feature

100G 850nm Wavelength QSFP+ Transceiver , PIN Receiver QSFP Optical Module 0



Application



  • 100GBASE-SR4 100G Ethernet



Mechanical Specifications



100G 850nm Wavelength QSFP+ Transceiver , PIN Receiver QSFP Optical Module 1





Specifications



  • Hot-pluggable QSFP28 form factor
  • Supports 103.1Gb/s aggregate bit rate
  • 3.5W maximum power dissipation
  • RoHS-6 compliant
  • Single 3.3V power supply
  • Maximum link length of 100m on OM4 Multimode Fiber (MMF)
  • 4x25Gb/s 850nm VCSEL-based transmitter
  • 4x25G electrical interface
  • Single MPO12 receptacle


Warranty

We promise all the advertised optical transceivers are brand new with new components and parts.
We absolutely never use old and refurbished materials.
All the optical transceivers have been through functional test and aging test.
We provide 3 years warranty for all the optical transceivers from the date of shipment.






100G 850nm Wavelength QSFP+ Transceiver , PIN Receiver QSFP Optical Module 2

100G 850nm Wavelength QSFP+ Transceiver , PIN Receiver QSFP Optical Module 3




Shipment

Hilink can provide the both ourselves forwarder and customer appointed forwarder in the way of by FedEx, DHL, UPS, TNT and EMS.


Some items in stock can be shipped out the same day . The Items with no stock, then the shipment would be done in 3-7 days.


DHL will take 2-4 business days for delivery and FedEx just needs 1-3 business days.


For Spain, Italy, Brazil and some other countries, items will take longer time to arrive due to customs clearance period.
