CH17-CH61 DWDM 100km DOM LC Dulplex 10G SFP Optical Transceiver For Fiber Communication Equipment

CH17-CH61 DWDM 100km DOM LC Dulplex 10G SFP Optical Transceiver For Fiber Communication Equipment

Product Details:

Place of Origin: China
Brand Name: HILINK
Certification: CE FCC Rohs
Model Number: DW-SFP+-100

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Blister Packaging, 10pcs/ tray
Delivery Time: 3-6 days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs/ week
Get Best Price Contact Now

Detail Information

Form Type: SFP+ Wavelength: CH17-61
Data Rate: 10Gbs Optical Components: Eml Dwdm
Cable Type: SMF DOM Support: Yes
TX Power: 0-4dBm Temperature Range: 0 To 70°C
Distance: 100km
High Light:

sfp+ optical transceive

,

10g sfp+ module

Product Description

Hilink DWDM SFP/SFP+ optical transceiver series support 1.25G -10Gbits/s and 40Km/80km/120km transmission. It adopts standard LC interface and standard SFP/SFP+ metal case and has good EMI/ESD performance.

Hilink DWDM SFP/SFP+ optical transceiver series conform to the international standards (ITU-T and IEEE), and strictly follow the MSA

(Multi-Source Protocol), which are compatible with the interfaces of all brands optical equipment manufacturers.

They are widely used in optical transport network (DWDM/OTN equipment), 5G back haul and front haul network, and cloudy, data center interconnection.



Features

DWDM PON network

ITU-T DWDM grid wavelengths

Data rate selectable ≤4.25Gbps or 9.95Gbps to 11.3Gbps bit rates

Temperature Stabilized DWDM eml Transmitter

Multi channels optional

Low Power Dissipation 1.5W Maximum

-5ºC to 70ºC Operating Case Temperature

Single 3.3V power supply

Diagnostic Performance Monitoring of module temperature,

Supply Voltages, laser bias current, transmit optical power,

receive optical power

RoHS compliant and lead free




Applications

DWDM upto 10GBASE-ZR/ZW (with/without FEC)

10G Fiber Channel (with/without FEC)

DWDM PON network



P/N

HL-SFP+DW-xx100

Datarate

10G/ps

Wavelenth

DWDM 100-GHz 1530.33-1561.42nm

Distance

100KM

Transmitter

EML

Receiver

APD

Media

SMF

DDM/DOM

YES

Connector

LC

Application

Datacom 10G Ethernet/ 2x 4x 8x FC

Operating Temperature

0℃~ +70℃

Voltage Supply

3.3V

Certification

CE/FCC/RoHS/TUV/UL

Brand

Hilink/Neuter, OEM





Spectral Attenuation Measurement

WDM systems are divided into different wavelength patterns, conventional/coarse (CWDM) and dense (DWDM). Conventional WDM systems provide up to 8 channels in the 3rd transmission window (C-Band) of silica fibers around 1550nm.

Dense wavelength division multiplexing (DWDM) uses the same transmission window but with denser channel spacing. Channel plans vary, but a typical system would use 40 channels at 100 GHz spacing or 80 channels with 50 GHz spacing.

Dense wavelength division multiplexing (DWDM) refers originally to optical signals multiplexed within the 1550nm band so as to leverage the capabilities (and cost) of erbium doped fiber amplifiers (EDFAs), which are effective for wavelengths between approximately 1525–1565nm (C band), or 1570–1610nm (L band).

Fs 20160606174047_413.jpg
Related Picture:

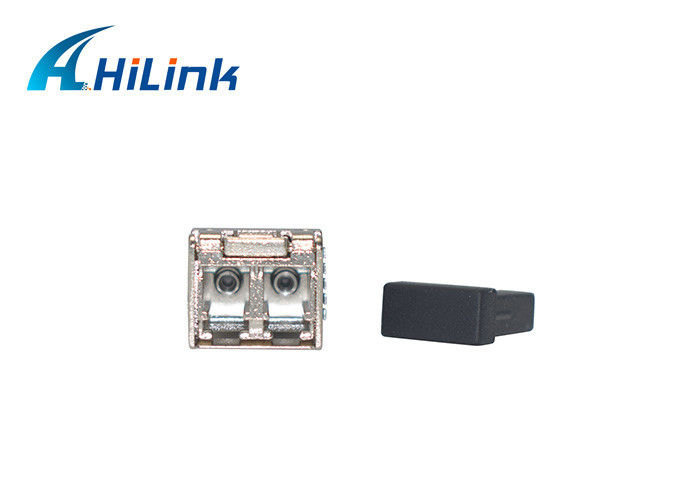

CH17-CH61 DWDM 100km DOM LC Dulplex 10G SFP Optical Transceiver For Fiber Communication Equipment 1
CH17-CH61 DWDM 100km DOM LC Dulplex 10G SFP Optical Transceiver For Fiber Communication Equipment 2
CH17-CH61 DWDM 100km DOM LC Dulplex 10G SFP Optical Transceiver For Fiber Communication Equipment 3
CH17-CH61 DWDM 100km DOM LC Dulplex 10G SFP Optical Transceiver For Fiber Communication Equipment 4CH17-CH61 DWDM 100km DOM LC Dulplex 10G SFP Optical Transceiver For Fiber Communication Equipment 5
