Place of Origin:
Guangdong, China
Brand Name:
hilinksys
Certification:
CE FCC Rohs
Model Number:
HL-SFP-SX-MM

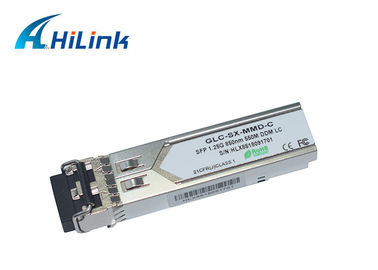

Hilinksys Multimode 1000Base SX SFP Transceiver Module1.25G Short reach optical transceiver
Features:
♦ Dual data-rate of 1.25Gbps/1.063Gbps operation
♦ 850nm VCSEL laser and PIN photodetector for 550m transmission
♦ Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
♦ DDM or DOM Fuction
♦ Internal Calibration or External Calibration
♦ Compatible with SONET OC-24-LR-1 and ROHS
♦ Operating case temperature range of 0°C to +70°C(Commercial)
2 Application:
1 Gigabit Ethernet
2 Switch to Switch interface
3 Switched backplane applications
4 Router/Server interface
5 Other optical transmission systems
3 General
The optical transceiver is compliant with the Small Form-Factor Pluggable (SFP) Multi-Source Agreement (MSA) and SFF-8472. SFP SX Features a 1000Base-SX (short haul) connector for Gigabit connectivity over fiber optic cabling. It's for multimode fiber and works at 850nm wavelength, transmission can reach 550m distance. The SFP SX is fit for Gigabit Ethernet port and link the port with the network. We supply quality compatible CISCO GLC-SX-MMD transceiver modules at very competitive prices. And delivery will be fast.
Quick Specifications:
| P/N | HL-GLC-SX-MMD |
| Datarate | 1.25Gbps |
| Wavelenght | 850nm |
| Distance | 0.5km |
| Transmitter | VCSEL |
| Receiver | PIN |
| DDM/DOM | Yes |
| Media | MMF |
| Operating Temperature | 0°C to +70°C |
| Available Compatible Brand | Cisco,Alcatel,Juniper,Huawei etc... |
Gigabit Ethernet Transceivers Module
Reference Specification
| Cisco Part Number | Description |
| GLC-T= | 1000BASE-T SFP transceiver module for Category 5 copper wire, RJ-45 connector |
| GLC-SX-MM= | 1000BASE-SX SFP transceiver module for MMF, 850-nm wavelength, dual LC/PC connector |
| GLC-LH-SM= | 1000BASE-LX/LH SFP transceiver module for MMF and SMF, 1310-nm wavelength, dual LC/PC connector |
| GLC-ZX-SM= | 1000BASE-ZX SFP transceiver module for SMF, 1550-nm wavelength, dual LC/PC connector |
| GLC-BX- D= | 1000BASE-BX10 SFP module for single-strand SMF, 1490-nm TX/1310-nm RX wavelength, single LC/PC connector |
| GLC-BX-U= | 1000BASE-BX10 SFP module for single-strand SMF, 1310-nm TX/1490-nm RX wavelength, single LC/PC connector |
| GLC-2BX-D= | Dual-channel 1000BASE-BX10 SFP module for single-strand SMF, 1490-nm TX/1310-nm RX wavelength, two single LC/PC connectors |
| SFP-GE-S= | 1000BASE-SX SFP transceiver module for MMF, 850-nm wavelength, extended operating temperature range and DOM support, dual LC/PC connector |
| SFP-GE-L= | 1000BASE-LX/LH SFP transceiver module for MMF and SMF, 1300-nm wavelength, extended operating temperature range and DOM support, dual LC/PC connector |
| SFP-GE-Z= | 1000BASE-ZX SFP transceiver module for SMF, 1550-nm wavelength, extended operating temperature range and DOM support, dual LC/PC connector |
| SFP-GE-T= |
1000BASE-T SFP transceiver module for Category 5 copper wire, extended operating temperature range, RJ-45 connector |
Competitive Advantages:
1. Excellent quality and 3 years warranty
2. Competitive price
3. Full compatible (CISCO/HP/Extreme/Juniper/H3C…)
4. OEM/ODM Customized
5. Keep stock,Fast delivery
Shipment
International Express: DHL, FedEx,EMS,TNT, UPS and so on. It takes 3-7 days.
