25Gb/s 10Km SFP28 BIDI Transceiver RoHS Compliant for High-Speed Fiber Optic Communication

25Gb/s 10Km SFP28 BIDI Transceiver RoHS Compliant for High-Speed Fiber Optic Communication

Place of Origin:

Guangdong, China

Brand Name:

HILINK

Certification:

CE FCC Rohs

Model Number:

HL-SFP28-25G-U/D10

Contact Us
Request A Quote
25Gb/s 10Km SFP28 BIDI Transceiver RoHS Compliant for High-Speed Fiber Optic Communication 25Gb/s 10Km SFP28 BIDI Transceiver RoHS Compliant for High-Speed Fiber Optic Communication 25Gb/s 10Km SFP28 BIDI Transceiver RoHS Compliant for High-Speed Fiber Optic Communication 25Gb/s 10Km SFP28 BIDI Transceiver RoHS Compliant for High-Speed Fiber Optic Communication 25Gb/s 10Km SFP28 BIDI Transceiver RoHS Compliant for High-Speed Fiber Optic Communication 25Gb/s 10Km SFP28 BIDI Transceiver RoHS Compliant for High-Speed Fiber Optic Communication 25Gb/s 10Km SFP28 BIDI Transceiver RoHS Compliant for High-Speed Fiber Optic Communication 25Gb/s 10Km SFP28 BIDI Transceiver RoHS Compliant for High-Speed Fiber Optic Communication
Product Details
Products Name:
25G SFP28 BIDI 10km
Connetor:
Simplex LC
Data Rate:
25G
Distance:
10KM
Wavelength:
1270nm/1330nm
Temperature Range:
0℃ ~ +70℃/-40°C To +85°C
Certification:
CE RoHS FCC
Type:
Fiber Optic Transceivers, 25GSFP
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
Static bag, Plastic Flat, Retail box, by requires
Delivery Time
5-8workingdays
Payment Terms
Western Union,T/T,L/C
Supply Ability
100pcs/month
RELATED PRODUCTS
Good price HL-SFP28-LR-10KM 25G SFP28 Transceiver with 10km Transmission Distance, 25.78Gbps Data Rate, and Low Power Consumption <1.2W online

HL-SFP28-LR-10KM 25G SFP28 Transceiver with 10km Transmission Distance, 25.78Gbps Data Rate, and Low Power Consumption <1.2W

Get Best Price
Good price HL-SFP28-25G-SR 25G SFP28 SR Dual LC Transceiver with 25Gbps Data Rate 100m Distance and 850nm Wavelength online

HL-SFP28-25G-SR 25G SFP28 SR Dual LC Transceiver with 25Gbps Data Rate 100m Distance and 850nm Wavelength

Get Best Price
Good price 25Gb/s SFP28 BIDI Transceiver with 80km Reach and RoHS 6 Compliance Hot-Pluggable Single LC DDM online

25Gb/s SFP28 BIDI Transceiver with 80km Reach and RoHS 6 Compliance Hot-Pluggable Single LC DDM

Get Best Price
Good price 25Gb/s 60km SFP28 BIDI Transceiver with 1295/1309nm Wavelength for High-Speed Bi-Directional Fiber Optic Communication online

25Gb/s 60km SFP28 BIDI Transceiver with 1295/1309nm Wavelength for High-Speed Bi-Directional Fiber Optic Communication

Get Best Price
Contact Us
86-755-8317-6243
Contact Now
Product Description
25Gb/s 10Km SFP28 BIDI Transceivers Commercial/Industrial Temperature RoHS Compliant
The 25G SFP28 BIDI 10km Transceiver is designed for 10km reach service from 24.33Gb/s to 25.78Gb/s bi-directional single mode high-speed communications equipment where low-cost, extraordinary performance and reliability are essential. It consumes low power, operates on 3.3V DC power supply and is offered in industrial temperature range. They are compliant with SFP28 MSA, SFF-8431 and SFF-8432.
The low jitter and low bit error rate optical assembly features a DML laser transmitter and PIN/TIA receiver. It utilizes internal clock and data recovery (CDR) units on transmitter and receiver chains for low jitter compliance. The differential AC coupled Tx and Rx data interfaces are CML compatible. The device is Class I laser safety compliant.
Key Features
  • Operating data rate up to 25.78Gbps
  • Up to 10km transmission distance
  • High sensitivity PIN photodiode and TIA
  • Rate Adaptation
  • LC single connector
  • Hot pluggable 20-pin connector
  • Low power consumption <1.2 W
  • Single +3.3V±5% power supply
  • Compliant with SFF-8472
  • Fully RoHS Compliant
  • Operating temperature range:
    • Commercial: 0°C to +70°C
    • Industrial: -40°C to +85°C
Applications
  • 25GE BASE-LR Ethernet
  • CPRI Option 10/eCPRI
Product Images

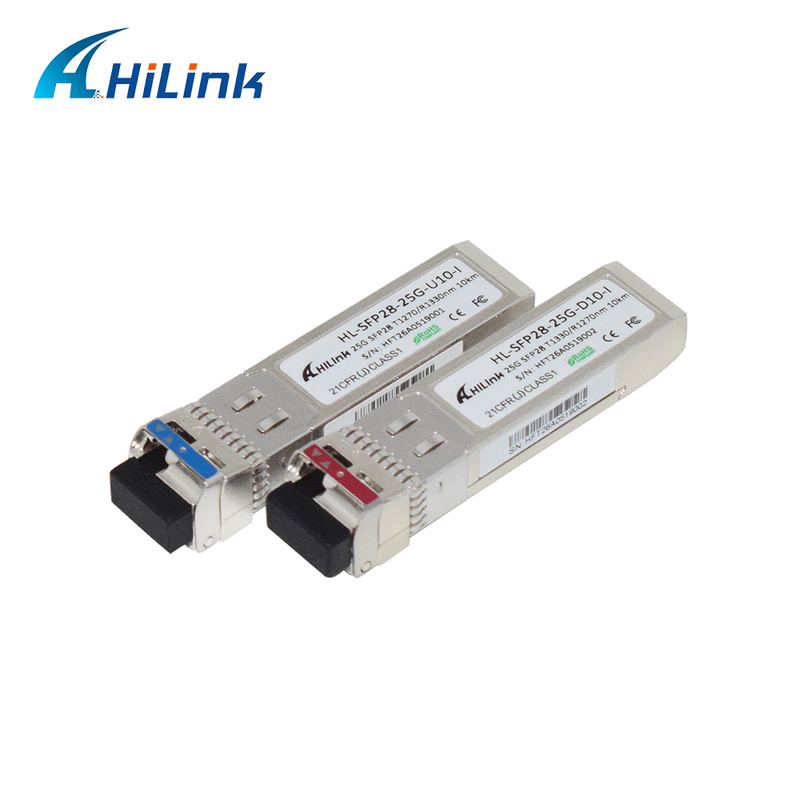

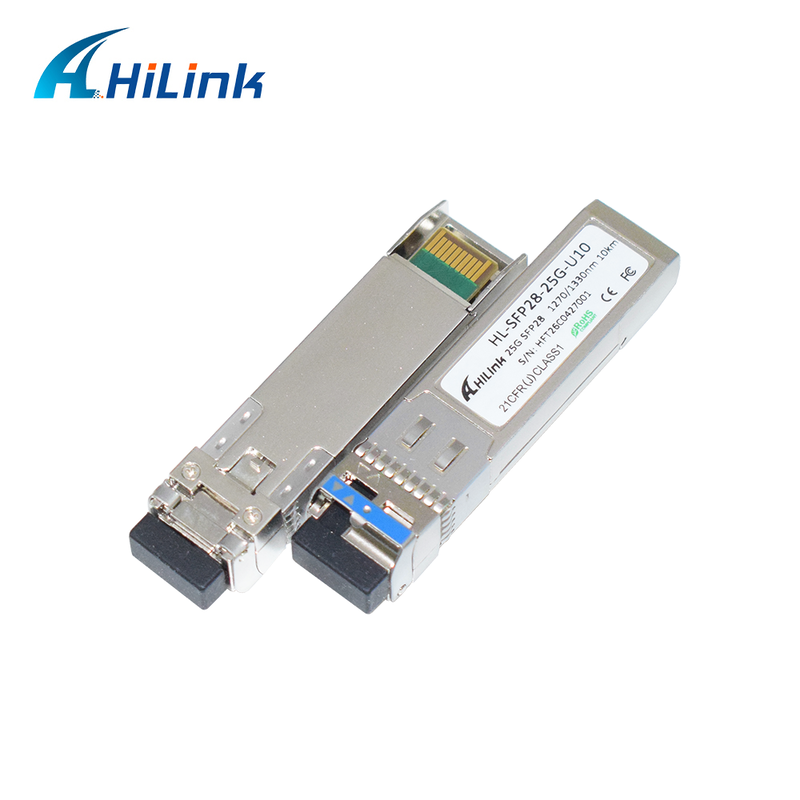

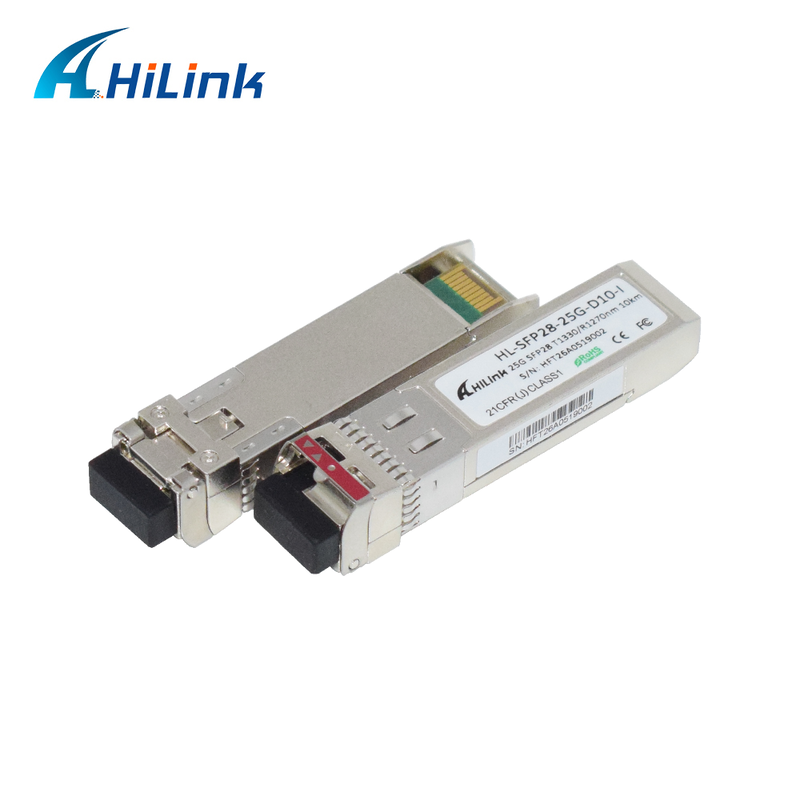

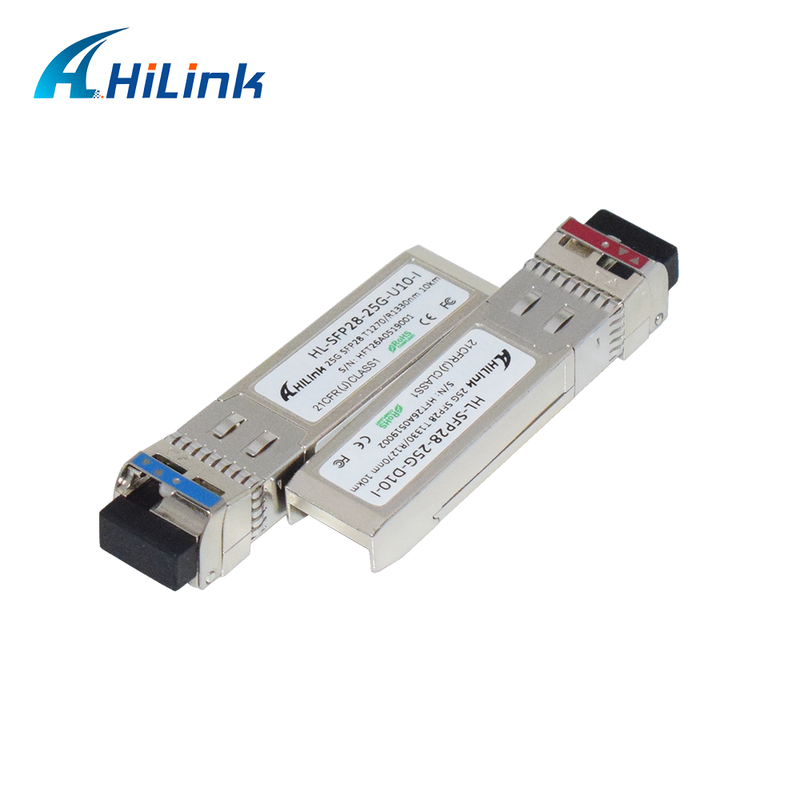

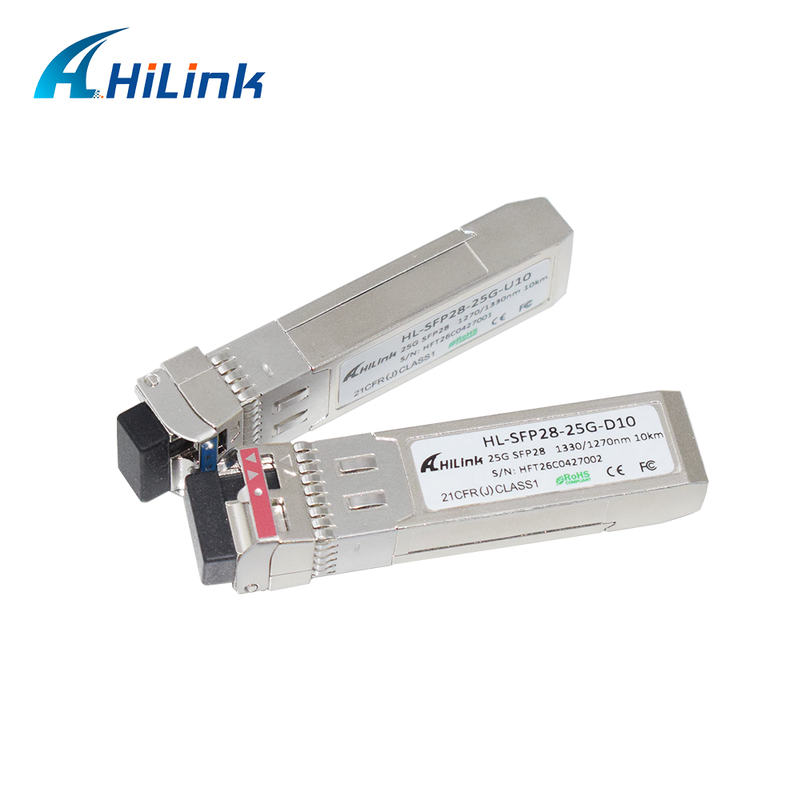

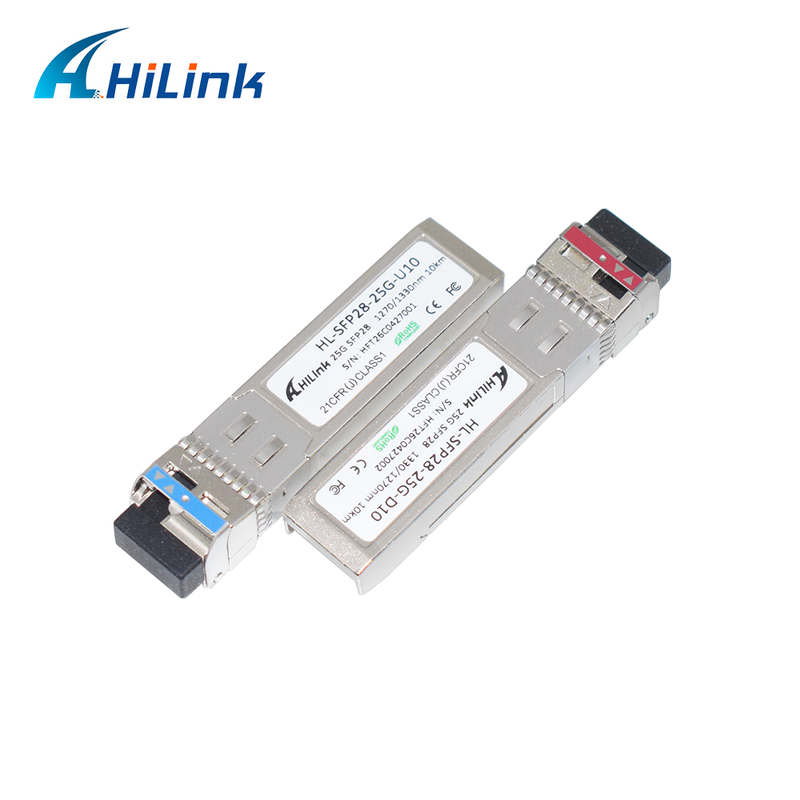

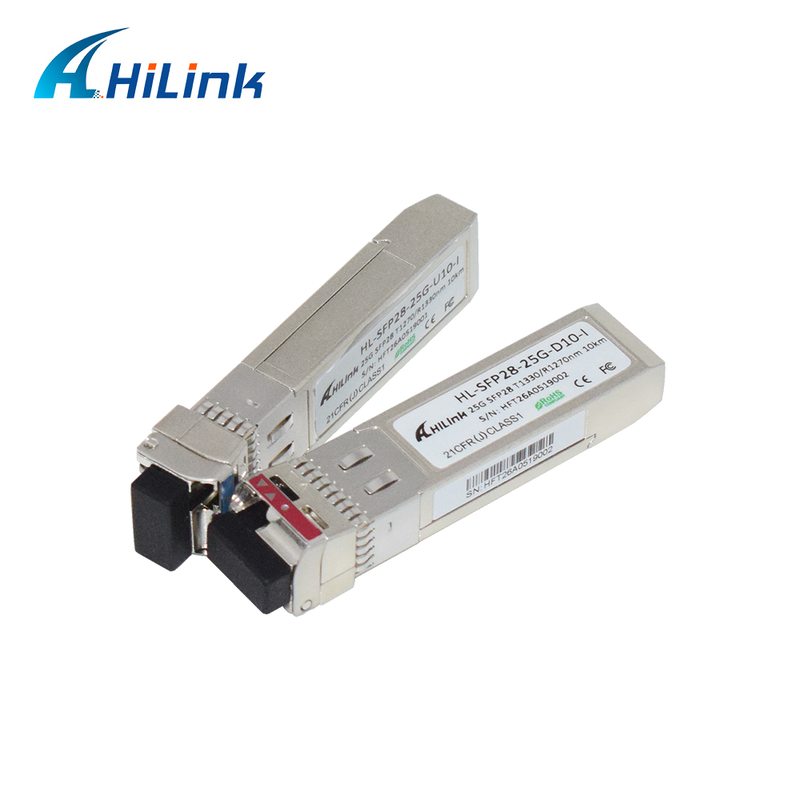

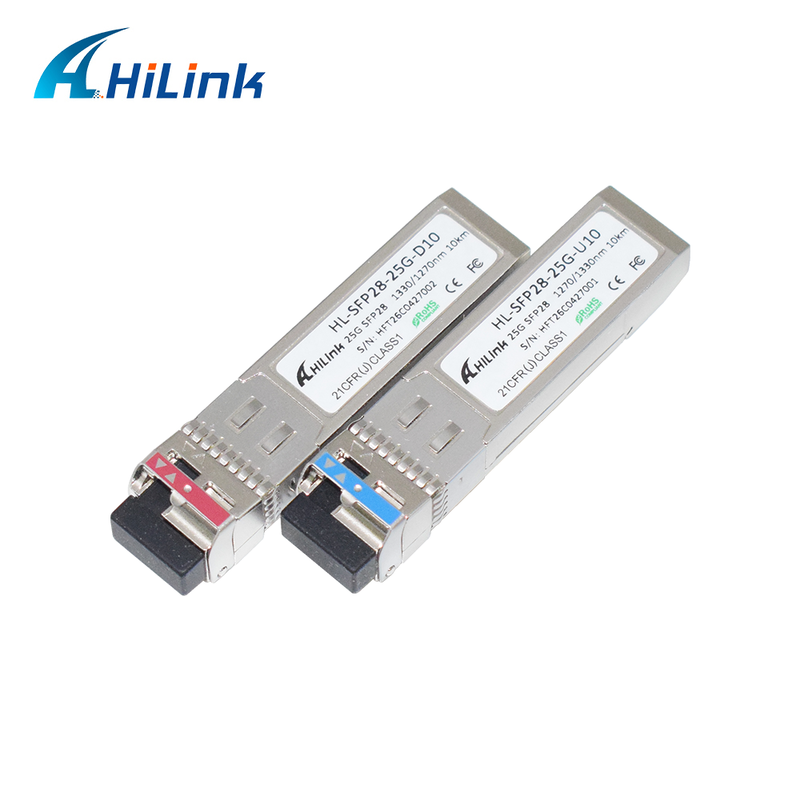

25G SFP28 BIDI Transceiver front view 25G SFP28 BIDI Transceiver side view 25G SFP28 BIDI Transceiver technical diagram 25G SFP28 BIDI Transceiver specifications
