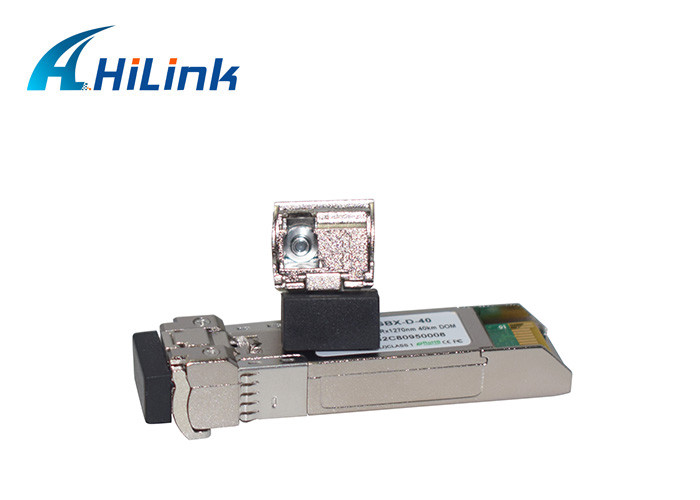

GBIC 10G BIDI WDM SFP+ Transceiver Module 40KM 1270/1330nm LC Optical Interface

GBIC 10G BIDI WDM SFP+ Transceiver Module 40KM 1270/1330nm LC Optical Interface

Product Details:

Place of Origin: China
Brand Name: HILINK
Certification: CE,ROHS,FCC
Model Number: HL-BIDI

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Static bag, Plastic bag, Retail box
Payment Terms: L/C, T/T, Western Union,Paypal
Supply Ability: 100/pcs/month
Get Best Price Contact Now

Detail Information

Data Transfer Rate: 10G Optical Interface: LC
Product Type: 40KM 10Gb BIDI SFP Temp: 0-70
Distance: 40KM Wavelength: 1270/1330
High Light:

sfp+ optical transceive

,

sfp+ optical module

Product Description

GBIC 10G BIDI WDM SFP+ Transceiver Module 40KM 1270/1330nm LC Optical Interface

GBIC 10G BIDI 1270/1330nm WDM SFP+ 40KM Transceiver Module



40Km 10Gb BIDI SFP



Tx: 1270nm/ Rx: 1330nm BIDI SFP+ Transceiver for 10GbE

Tx: 1330nm/ Rx: 1270nm BIDI SFP+ Transceiver for 10GbE



Features

Operating data rate up to10.3Gbps

Type: 1330nmDFB Tx/1270nmRx 1270nmDFB Tx/1330nmRx

1270nm DFB Transmitter/ 1330nm Receiver

Distance up to 40km

Power budget 9dB at least

Single 3. 3V Power supply and TTL Logic Interface

Simplex LC Connector Interface

Hot Pluggable

Operating Case Temperature

Standard: 0°C~+70°C
Industrial:-40°C~+85°C

Compliant with MSA SFP Specification

DDM function



Applications

10GBASE-LR at 10.3125Gbps

10GBASE-LW at 9.953Gbps

Other Optical Links



PRODUCT DESCRIPTION
10G BIDI SFP+ 40KM is hot pluggable 3.3V Small-Form-Factor transceiver module. It designed expressly
for high-speed communication applications that require rates up to 10.7Gb/s,it designed to be compliant
with SFF-8472 SFP+ MSA. The module data link up to 40km in 9/125um single mode fiber. The optical
output can be disabled by a LVTTL logic high-level input of Tx Disable. Tx Fault is provided to indicate
that degradation of the laser. Loss of signal (LOS) output is provided to indicate the loss of an input
optical signal of receiver or the link status with partner.





Also for 1.25Gbps



  HAILI BIDI SFP (155M/1.25G LC Interface) With or without DDMI
BIDI SFP 155MB LC/SC available BSFP-L155M-SU 155M 1310/1550 3km BIDI SFP 0~70 FP+PIN
BSFP-L155M-SD 155M 1550/1310 3km BIDI SFP 0~70 FP+PIN
BSFP-L155M-LU 155M 1310/1490 20km BIDI SFP 0~70 FP+PIN
BSFP-L155M-LD 155M 1490/1310 20km BIDI SFP 0~70 DFB+PIN
BSFP-L155M-E1U 155M 1310/1550 40KM BIDI SFP 0~70 FP+PIN
BSFP-L155M-E1D 155M 1550/1310 40KM BIDI SFP 0~70 FP+PIN
BSFP-L155M-E2U 155M 1310/1490 40KM BIDI SFP 0~70 FP+PIN
BSFP-L155M-E2D 155M 1490/1310 40KM BIDI SFP 0~70 DFB+PIN
BSFP-U80 155M 1310/1550 80KM BIDI SFP   DFB+PIN
BSFP-D80 155M 1550/1310 80km BIDI SFP   DFB+PIN
BIDI SFP 1.25GB LC/SC available BSFP-L1.25G-SU 1.25G 1310/1550 2KM BIDI SFP 0~70 FP+PIN
BSFP-L1.25G-SD 1.25G 1550/1310 2KM BIDI SFP 0~70 FP+PIN
BSFP-L1.25G-LU 1.25G 1310/1550 20KM BIDI SFP 0~70 FP+PIN
BSFP-L1.25G-LD 1.25G 1550/1310 20KM BIDI SFP 0~70 DFB+PIN
BSFP-L1.25G-EU 1.25G 1310/1550 40KM BIDI SFP 0~70 DFB+PIN
BSFP-L1.25G-ED 1.25G 1550/1310 40KM BIDI SFP 0~70 DFB+PIN
BSFP-U80 1.25G 1310/1550 80KM     DFB+PIN
BSFP-D80 1.25G 15501310 80km     DFB+PIN


GBIC 10G BIDI WDM SFP+ Transceiver Module 40KM 1270/1330nm LC Optical Interface 0

GBIC 10G BIDI WDM SFP+ Transceiver Module 40KM 1270/1330nm LC Optical Interface 1GBIC 10G BIDI WDM SFP+ Transceiver Module 40KM 1270/1330nm LC Optical Interface 2
