10G DWDM SFP Transceiver Module Data Rate 10G 80km Distance 23db DDM Fiber Optic

Product Details:
Place of Origin: China
Brand Name: HILINK
Certification: CE FCC Rohs
Model Number: HL--DWDM-SFP-10G
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Static bag, Plastic Flat, Retail box, by requires
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 2000pcs/month
  • Detail Information
  • Product Description

Detail Information

Data Rate: 10G Wavelength: 15xx.xxnm
Distance: 80kM Connector: LC
DDM Function: YES Warranty: 3 Years
High Light:

sfp optical transceiver

,

sfp fiber module

Product Description

10G DWDM SFP Transceiver Module Data Rate 10G 80km Distance 23db DDM Fiber Optic









Specifications

1. 10G DWDM SFP 80km 15xx.xxnm
2. 10Gbase-ZR DWDM
3. ITU-T DWDM grid wavelength
4. Cost effective







Features



Compliant with SFF-8413 and IEE802.3ae

Suitable for use in 100GHz channel spacing DWDM systems

Data rate selectable ≤4.25Gbps or 9.95Gbps to 10.3Gbps bit rates

Cooled EML transmitter and PIN receiver

link length up to 80km

Low Power Dissipation 1.5W Maximum

-5ºC to 70ºC Operating Case Temperature

Single 3.3V power supply

Diagnostic Performance Monitoring of module temperature, supply Voltages, laser bias current, transmit optical power, receive Optical power Cisco 10G DWDM SFP Transceiver 80km

RoHS compliant and lead free







Applications



SONET OC-192 IR-1
Switch to Switch channel interface
Switched back plane applications
Router/Server interface
Other optical transmission systems







DWDM series 155M~10GBps optical transceiver



DWDM SFP+ (10G)
DWDM SFP+ (10G) 10G 15XX.XX 40KM DWDM SFP+ 0~70
DWDM SFP+ (10G) 10G 15XX.XX 80KM DWDM SFP+ 0~70
DWDM SFP 155M~4.25G   ITU Band 120M DWDM SFP
DWDM XFP (10G)
DWDM XFP (10G) 10G 15XX.XX 40KM DWDM XFP 0~70
DWDM XFP (10G) 10G 15XX.XX 80KM DWDM XFP 0~70

DWDM X2(10G)
DWDM X2(10G) 10G 15XX.XX 40KM DWDM X2 0~70
DWDM X2(10G) 10G 15XX.XX 80KM DWDM X2 0~70

DWDM XENPAK(10G)
DWDM XENPAK(10G) 10G 15XX.XX 40KM DWDM XENPAK 0~70
DWDM XENPAK(10G) 10G 15XX.XX 80KM DWDM XENPAK 0~70

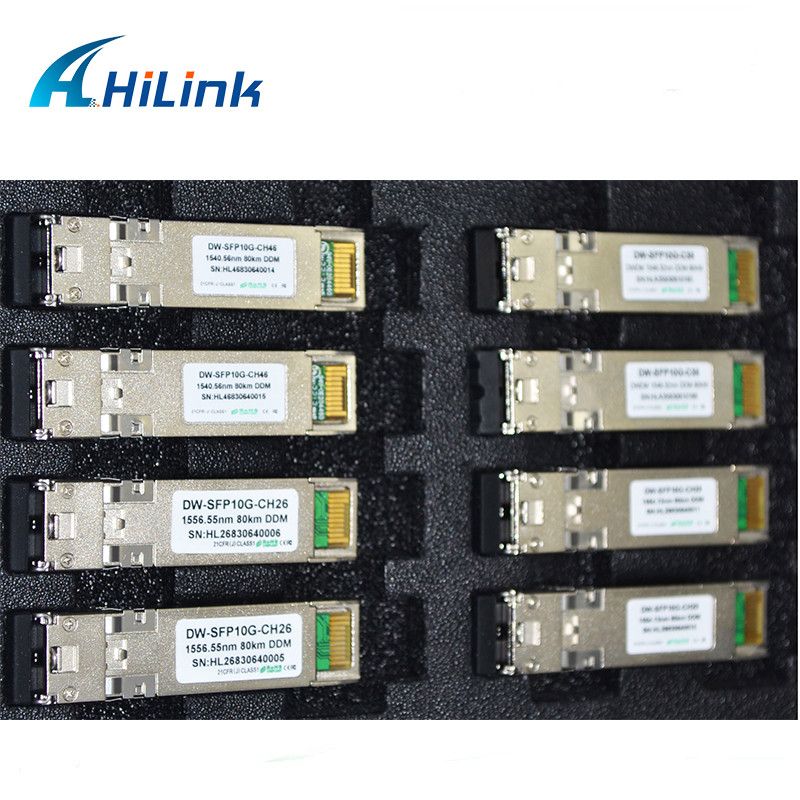

Real Product Show



10G DWDM SFP Transceiver Module Data Rate 10G 80km Distance 23db DDM Fiber Optic 0

10G DWDM SFP Transceiver Module Data Rate 10G 80km Distance 23db DDM Fiber Optic 1









Packaging



  • We provide safe and reliable packaging: Static bag, Plastic bag, Retail box or by required
  • Delivery time:1-5 working days





Shipment

  • International Express: DHL, FedEx,EMS,TNT, UPS and so on. It takes 1-5 days.






OEM and ODM

  • OEM/ODM order is available





Guarantee

  • We promise all the advertised optical transceivers are brand new with new components and parts and absolutely never use old and refurbished materials. All the optical transceivers have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.





What we supply

  • We supply all kinds of compatible optical transceiver modules, including SFP, GBIC, SFP+, XENPAK, X2 , XFP, BIDI,CWDM,DWDM and other special transceiver modules. Our products are compatible with Cisco, 3COM, H3C, HP, Extreme, Foundry, Avaya, D-link, Alcatel, Riverstone, Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, Huawei,etc


Company Information

We are specialized in supplying network equipments. Our main products are optical transceiver modules and passive CWDM/DWDM multiplexers. The transceiver modules include SFP, GBIC, SFP+, XFP,X2, Xepnak, and CWDM/DWDM transceivers. The transceivers can be compatible with almost all the brands switches.

We supply high quality products with competitive prices. We have professional staff who are always here to provide you technical support and best services.

The most populor modules we often have stock. The items with no stock often have very short delivery time too. If you can't find the items needed on our website you just contact us. We will reply you shortly.




FAQ

1. Q:Do you sell second-hand products?
A:No.All our products are brand new,we never use second-hand components.

2. Q:What payment terms do you accept?
A:T/T,Paypal,Western Union are acceptable.

3. Q:What are the shipping ways can you offer?
A:Our usual shipping ways are DHL,FedEX,TNT,UPS,EMS etc.It will take 3-7days.

4. Q:Do your products come with warranty?
A:Yes,We provide 3 years warranty for all our products from the date of shipment.

5. Q:What devices can your products compatible with?
A:Our products are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Riverstone, Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.

6. Q:How to place an order?
A:1>Order details confirmed,please tell us the model and quantity you need.
2>Proforma Invoice confirmed, the order will be arranged upon receipt of your payment.
3>Confirm and ship the goods, then tracking number will be sent to you promptly.
4>We will help to track your goods until you receive them safely.
