Place of Origin:
Guangdong, China
Brand Name:
HILINK
Certification:
CE FCC Rohs
Model Number:

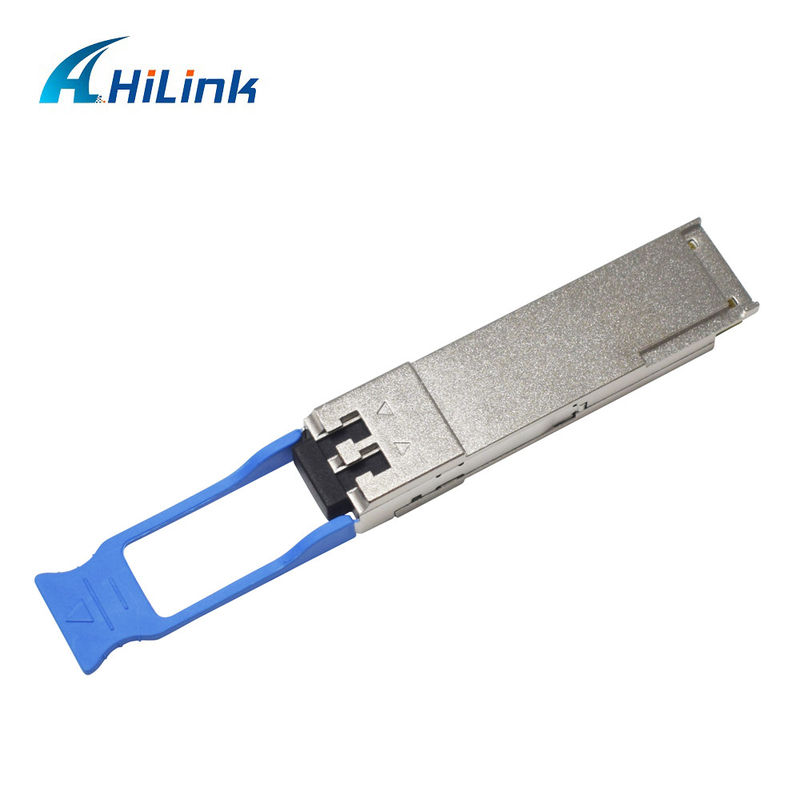

HL-QSFP Module
Feature
Ø High Channel Capacity: 40 Gbps per module
Ø Up to 11.1Gbps Data rate per channel
Ø Maximum link length of 100m links on OM3 multimode fiber
Or 150m links on OM4 multimode fiber
Ø High Reliability 850nm VCSEL technology
Ø Electrically hot-pluggable
Ø Digital diagnostic SFF-8436 compliant
Ø Case operating temperature range:0°C to 70°C
Ø Power dissipation < 1.5 W
Applications
40G Ethernet
Data Center and LAN
40G QSFP
| Part Number | Product Description |
| HiLink-QSFP-40G-SR4 | QSFP+, 40Gb/s, 40GBASE-SR4, MMF, 850nm, 150M |
| HiLink-QSFP-40G-LR4 | QSFP+, 40Gb/s, 40GBASE-LR4, SMF, 1310nm, 10KM |
Hilink QSFP28 100G Series
| Part Number | Data Rate | Distance | Wavelength | Output Power | Sensitivity | Remark |
| HQ28-SR-M85-X1D | 100Gbps | MM 100m (OM4) |
850nm | -8.4 ~ +2.4dBm | -10.3dBm | QSFP28-100G-SR4 |
| HQ28-LR-L13-10D | 100Gbps | SM 10km | 1310nm | -4.3 ~ +4.5dBm | -10.6dBm | QSFP28-100G-LR4 |
| HQ28-LR-L13-10C1 | 100Gbps | SM 10km | 1310nm | -4.3 ~ +4.5dBm | -10.6dBm | QSFP28 100G-LR4-Ethernet |
| HQ28-ER-L13-40D | 100Gbps | SM 40km | 1310nm | -2.9 ~ +4.5dBm | -16.9dBm | QSFP28 100G-ER4 |
| HQ28-K7-L13-xxx | 100Gbps | SM 2km | 1310nm | -6.5 ~ +2.5dBm | -11.5dBm | QSFP28 100G-CWDM4 |
