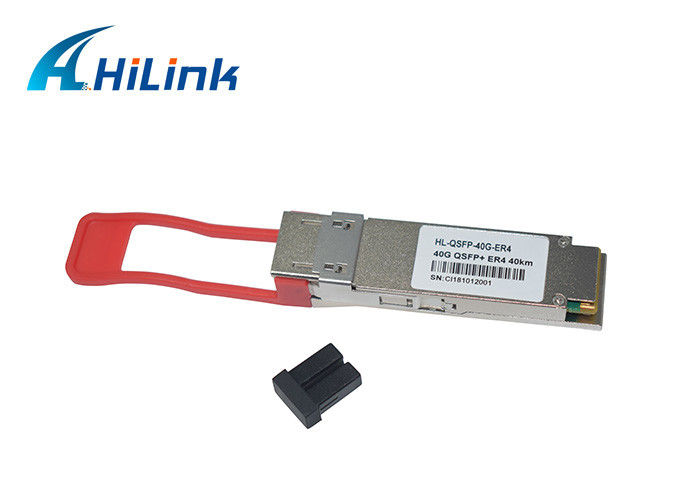

Name: Duplex LC QSFP+ Transceiver 40 GBASE -ER4 1310nm Wavelength 3.3V QSFP-40G-ER4
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: Hlink-QSFP-40G-ER4
Price: 900.00 USD
Availability: InStock

Home > products > QSFP+ Transceiver >

Duplex LC QSFP+ Transceiver 40 GBASE -ER4 1310nm Wavelength 3.3V QSFP-40G-ER4

qsfp transceiver module

qsfp optical module

Place of Origin:

Guangdong, China

Brand Name:

HILINK

Certification:

CE FCC Rohs

Model Number:

Hlink-QSFP-40G-ER4

Request A Quote

Duplex LC QSFP+ Transceiver 40 GBASE -ER4 1310nm Wavelength 3.3V QSFP-40G-ER4

Product Details

Data Transfer Rate:

40G

Max Reach:

40km

Operating Wavelength:

1310nm

Connector:

Duplex LC

DDM/DOM:

Yes

Operating Temperature:

0-70℃

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Price

Negotiable

Packaging Details

Carton box, Retail box, Or by required

Delivery Time

1-4 days

Payment Terms

L/C, T/T, Western Union, Paypal

Supply Ability

3000 pcs per Week

HL-QSFP28-100G-80 100Gb/s QSFP28 BiDi 80km Transceiver Hot Pluggable Simplex LC Connector EML+PIN with SOA Single mode DDM

Get Best Price

100G QSFP28 BIDI Optical Transceiver 40KM 100G-ER1-40 MSA EML laser APD receiver 1309.14nm/1304.58nm

Get Best Price

LC Connector SOA Pin Fiber Optic Transceiver Good Communication Networking Product QSFP28 ZR4 80KM LWDM4 1295-1304NM

Get Best Price

Generic QSFP-40G-ZR4 Compatible 40GBASE-ZR4 Optical Transceiver Module 1550nm 100km EML+ APD Communication & Networking Product

Get Best Price

86-755-8317-6243

Contact Now

Product Description

QSFP-40G-ER4 Duplex LC 40GBASE-ER4 40G 40km QSFP+ ER4

The 40G QSFP ER4 optical transceiver integrates the transmit and receive path onto one module. Four electric-absorption modulated lasers (DFBs) with 1270~1330nm center wavelengths, which multiplexed/demutiplexed into a single-mode fiber through an industry-standard LC connector. Each data steam is recovered by a PIN photodetector and transimpedance amplifier, retimed, and passed on to an output driver.

Features:
4 CWDM channels are 1271, 1291,1311 and 1331 nm
Single +3.3V power supply
QSFP+ MSA compliant
Up to 40km transmission

Operating case temperature: 0~70C
Maximum 3.5W operation power
RoHS compliant
Compliant with IEEE802.3ba

Compliant with QSFP+ MSA: SFF-8436

Applications:
40G Ethernet
Infiniband 4X SDR DDR QDR
40G Telecom connections

Compatibility: Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Riverstone, Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.

Our core competencies are fiber optics of CFP, QSFP28, QSFP SR4&LR4, CWDM SFP/XFP/X2, DWDM SFP/XFP/X2, solutions of DWDM, CWDM, WDM, MPO, AAWG, etc.
