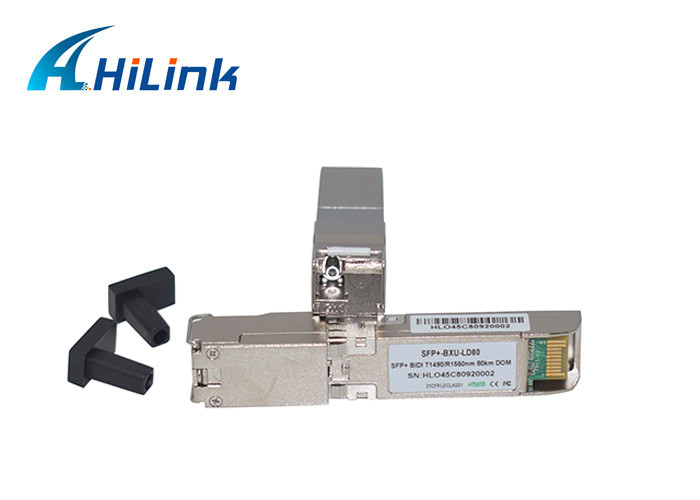

Single Fiber SFP Optical Module 10 GBASE-BX WDM 10G 1490/1550nm 80km DOM BiDi SFP+ LC

80KM 10Gbps WDM BiDi SFP+ Transceiver Module , 1490nm / 1550nm SFP+ Optical Module

LC 10G 1490nm/1550nm 80km BiDi SFP+ Transceiver

Fiber Channel Single Core DDM LC 1490/1550 10G SFP BiDi Module 80km

10G 80km BiDi SFP+ is specifically designed for the high performance integrated duplex data transmission over single mode optical fiber. This transceiver module is compliant with Enhanced Small Form Factor Pluggable Module SFP+ Multisource Agreement(SFF8431). This transceiver type is specifically optimized for transport of serial data at 10.3125Gbps.

Features:
 SFP MSA package with single LC connector
 Typical bidi 1490/1550nm and 1550nm/1490nm for commission
 APD receiver for high sensitivity
 lVery low EMI and excellent ESD protection
 Digital Diagnostic Monitor Interface
 Hot pluggable
 Support 9.95Gb/s to 11.1Gb/s serial optical interface
 Up to 80km distance
 Compliant with SFP+ MSA
 High transmission margin
 +3.3V single power supply
 Power Consumption< 1.5W


Applications:
 10GBASE-BX at 10.3125 Gb/s
 Other optical link 10G


Standard:
 SFP+ MSA Compliant
 SFF-8472 reversion 9.5 compliant
 IEEE802.3-2005 compliant
 Telcordia GR-468-CORE compliant
 FCC 47 CFR Part 15,Class B compliant
 FDA 21 CFR 1040.10 and 1040.11,class1 compliant
 RoHS compliant

100% compatibility: Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Riverstone, Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.

Technician support:

We support technical guide to solve malfunction or substitute components, and provide the project of related networking configuration.
After-sales service
We have after service for 24 hours, promises to supply technical service or guide in anytime.
Our co-workers will be response clients's requirement in 12 hours after emergency happened.

Packing Details: Static bag, Plastic PVC Pack, Retail box, Technical box, or customized.
