Place of Origin:
Guangdong, China
Brand Name:
HILINK
Certification:
CE FCC Rohs
Model Number:
HL-BIDI

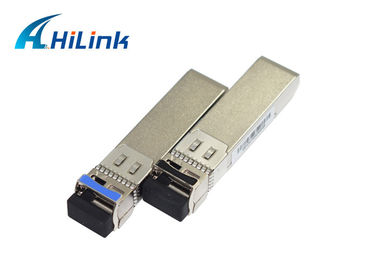

20Km 10Gb BIDI SFP
Tx: 1270nm/ Rx: 1330nm BIDI SFP+ Transceiver for 10GbE
Tx: 1330nm/ Rx: 1270nm BIDI SFP+ Transceiver for 10GbE
Features
Operating data rate up to10.3Gbps
Type: 1330nmDFB Tx/1270nmRx 1270nmDFB Tx/1330nmRx
1270nm DFB Transmitter/ 1330nm Receiver
Distance up to 20km
Power budget 9dB at least
Single 3. 3V Power supply and TTL Logic Interface
Simplex LC Connector Interface
Hot Pluggable
Operating Case Temperature
Standard: 0°C~+70°C
Industrial:-40°C~+85°C
Compliant with MSA SFP Specification
DDM function
Applications
10GBASE-LR at 10.3125Gbps
10GBASE-LW at 9.953Gbps
Other Optical Links
PRODUCT DESCRIPTION
10G BIDI SFP+ 40KM is hot pluggable 3.3V Small-Form-Factor transceiver module. It designed expressly
for high-speed communication applications that require rates up to 10.7Gb/s,it designed to be compliant
with SFF-8472 SFP+ MSA. The module data link up to 40km in 9/125um single mode fiber. The optical
output can be disabled by a LVTTL logic high-level input of Tx Disable. Tx Fault is provided to indicate
that degradation of the laser. Loss of signal (LOS) output is provided to indicate the loss of an input
optical signal of receiver or the link status with partner.
Also for 1.25Gbps
| HAILI BIDI SFP (155M/1.25G LC Interface) With or without DDMI | |||||||
| BIDI SFP 155MB LC/SC available | BSFP-L155M-SU | 155M | 1310/1550 | 3km | BIDI SFP | 0~70 | FP+PIN |
| BSFP-L155M-SD | 155M | 1550/1310 | 3km | BIDI SFP | 0~70 | FP+PIN | |
| BSFP-L155M-LU | 155M | 1310/1490 | 20km | BIDI SFP | 0~70 | FP+PIN | |
| BSFP-L155M-LD | 155M | 1490/1310 | 20km | BIDI SFP | 0~70 | DFB+PIN | |
| BSFP-L155M-E1U | 155M | 1310/1550 | 40KM | BIDI SFP | 0~70 | FP+PIN | |
| BSFP-L155M-E1D | 155M | 1550/1310 | 40KM | BIDI SFP | 0~70 | FP+PIN | |
| BSFP-L155M-E2U | 155M | 1310/1490 | 40KM | BIDI SFP | 0~70 | FP+PIN | |
| BSFP-L155M-E2D | 155M | 1490/1310 | 40KM | BIDI SFP | 0~70 | DFB+PIN | |
| BSFP-U80 | 155M | 1310/1550 | 80KM | BIDI SFP | DFB+PIN | ||
| BSFP-D80 | 155M | 1550/1310 | 80km | BIDI SFP | DFB+PIN | ||
| BIDI SFP 1.25GB LC/SC available | BSFP-L1.25G-SU | 1.25G | 1310/1550 | 2KM | BIDI SFP | 0~70 | FP+PIN |
| BSFP-L1.25G-SD | 1.25G | 1550/1310 | 2KM | BIDI SFP | 0~70 | FP+PIN | |
| BSFP-L1.25G-LU | 1.25G | 1310/1550 | 20KM | BIDI SFP | 0~70 | FP+PIN | |
| BSFP-L1.25G-LD | 1.25G | 1550/1310 | 20KM | BIDI SFP | 0~70 | DFB+PIN | |
| BSFP-L1.25G-EU | 1.25G | 1310/1550 | 40KM | BIDI SFP | 0~70 | DFB+PIN | |
| BSFP-L1.25G-ED | 1.25G | 1550/1310 | 40KM | BIDI SFP | 0~70 | DFB+PIN | |
| BSFP-U80 | 1.25G | 1310/1550 | 80KM | DFB+PIN | |||
| BSFP-D80 | 1.25G | 15501310 | 80km | DFB+PIN |
|||
