10G Sfp Optical Module Single Fiber LC/SC Connector 1270/1330nm 20km DOM

10G Sfp Optical Module Single Fiber LC/SC Connector 1270/1330nm 20km DOM

sfp+ optical transceive

sfp+ optical module

Place of Origin:

Guangdong, China

Brand Name:

HILINK

Certification:

CE FCC Rohs

Model Number:

HL-SFP-10G-LR

Contact Us
Request A Quote
Product Details
Product Name:
10G--BU-SFP-LR
Data Rate:
10G
Wavelength:
1270/1330nm
Distance:
20Km
DDM:
Yes
Connector Type:
LC/SC
Warranty:
3 Years
CE,RoHS:
Compliant
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Get latest price
Packaging Details
Static bag, Plastic Flat, Retail box, by requires
Delivery Time
2-5working days
Payment Terms
T/T, Western Union, MoneyGram,Paypal
Supply Ability
5000pcs/Month
Product Description

10G SFP+ Transceiver Single Fiber LC/SC Connector 1270/1330nm 20km DOM



Feature




Up to 11.1Gbps Data Links

Up to 20km transmission on SMF

Power dissipation<1.5W

1270nm DFB laser and PIN receiver

2-wire interface with integrated Digital Diagnostic monitoring

EEPROM with Serial ID Functionality

Hot-pluggable SFP+ footprint

Compliant with SFP+ MSA with LC connector

Single + 3.3V Power Supply

Case operating temperature: 0ºC~+70ºC



Applications:

10GBASE-BX at 10.3125 Gb/s

10GBASE-BX at 9.953 Gb/s



STANDARD



Compliant with SFF-8472



Compliant to SFF-8431



RoHS Compliant.

Description



SFP+ LR is specifically designed for the high performance integrated duplex data transmission over single mode optical fiber. This transceiver module is compliant with the Small Form-factor Pluggable Plus (SFP+) Multisource Agreement (SFF-8431 Rev4.1).This transceiver type is specifically optimized for transport of serial data at up to 10.3125 Gbps, with link characteristics complied with 10-Gigabit Ethernet 10GBASE-LR base IEEE 802.3ae and 10G Fibre Channel 1200-SM-LL-L. 5



Parameter



Datarate 10Gbps Fiber Type SMF
Transmitter DFB Receiver PIN
Distance 20Km Wavelenth 1270/1330nm
DDM/DOM Yes Connector LC/SC
Voltage Supply 3.3V Compatibility Cisco/Huawei/Mikrotik etc
Operating Temperature 0℃~ +70℃ Certification CE/FCC/RoHS



SFP+ Transceivers

Cisco Part Number Application Data Rate Wavelength Distance

Connector

Type

SFP-10G-SR SFP+ 10GBASE-SR 10G 850nm 300m LC
SFP-10G-LR SFP+ 10GBASE-LR 10G 1310nm 10km LC
SFP-10G-LRM SFP+ 10GBASE-LRM 10G 1310nm 220m LC
SFP-10G-ER SFP+ 10GBASE-ER 10G 1550nm 40km LC
SFP-10G-ZR SFP+ 10GBASE-ER 10G 1550nm 80km LC

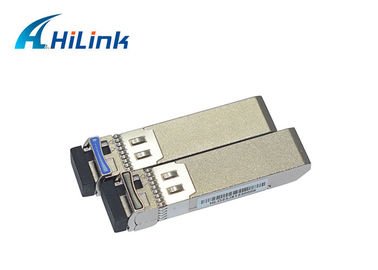

10G Sfp Optical Module Single Fiber LC/SC Connector 1270/1330nm 20km DOM 0

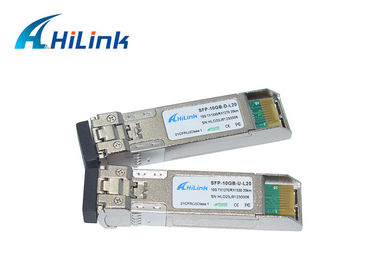

10G Sfp Optical Module Single Fiber LC/SC Connector 1270/1330nm 20km DOM 1
