Place of Origin:
Guangdong, China
Brand Name:
HILINK
Certification:
CE FCC Rohs
Model Number:
HL-10G- DW-SFP

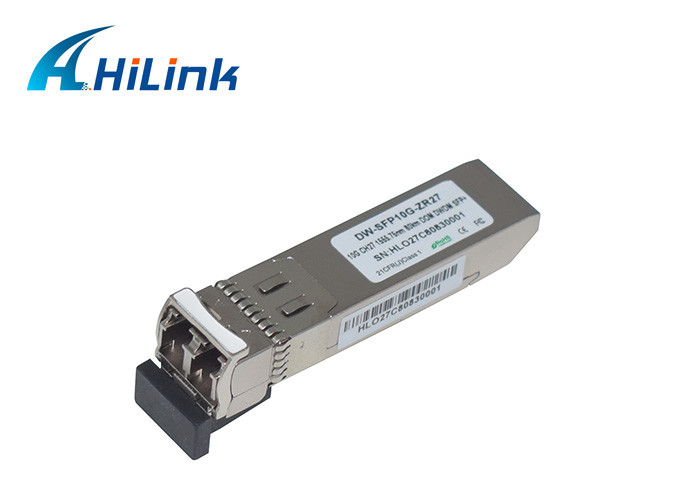

DWDM SFP module 10G DWDM SFP 80km C27 Brocade compatible
Features:
DWDM PON network
ITU-T DWDM grid wavelengths
Data rate selectable ≤4.25Gbps or 9.95Gbps to 11.3Gbps bit rates
Temperature Stabilized DWDM DFB Transmitterd
Multi channels optional
Low Power Dissipation 1.5W Maximum
Excellent ESD protection
-5ºC to 70ºC Operating Case Temperature
Single 3.3V power supply
Diagnostic Performance Monitoring of module temperature,
Supply Voltages, laser bias current, transmit optical power,
Receive optical power
RoHS compliant and lead free
Applications:
10G Fiber Channel
10GBASE-ER/EW 10G Ethernet
DWDM optical Links
DWDM PON network
DWDM series 10GB optical transceiver
| DWDM SFP+ (10G) | |||||
| DWDM SFP+ (10G) | 10G | 15XX.XX | 40KM | DWDM SFP+ | 0~70 |
| DWDM SFP+ (10G) | 10G | 15XX.XX | 80KM | DWDM SFP+ | 0~70 |
| DWDM SFP+ (10G) | 10G | 15XX.XX | 100M | DWDM SFP+ | 0~70 |
| DWDM XFP (10G) | |||||
| DWDM XFP (10G) | 10G | 15XX.XX | 40KM | DWDM XFP | 0~70 |
| DWDM XFP (10G) | 10G | 15XX.XX | 80KM | DWDM XFP | 0~70 |
| DWDM X2(10G) | |||||
| DWDM X2(10G) | 10G | 15XX.XX | 40KM | DWDM X2 | 0~70 |
| DWDM X2(10G) | 10G | 15XX.XX | 80KM | DWDM X2 | 0~70 |
| DWDM XENPAK(10G) | |||||
| DWDM XENPAK(10G) | 10G | 15XX.XX | 40KM | DWDM XENPAK | 0~70 |
| DWDM XENPAK(10G) | 10G | 15XX.XX | 80KM | DWDM XENPAK | 0~70 |
Our Main Products
As we have varies kinds of products,if you can't find the correct item you need,please send us an inquiry.We will reply shortly.
International Express: DHL, FedEx,EMS,TNT, UPS and so on. It takes 3-7 days.
OEM/ODM order is available
we can supply products according to your requirements, and design products label for your company.
Guarantee
We promise all the advertised optical transceivers are brand new with new components and parts and absolutely never use old and refurbished materials. All the optical transceivers have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.
What we supply
We supply wide range of high quality optical transceivers and passive CWDM/DWDM Mux/Demux modules. The optical modules are compatible with Cisco, Huawei, Extreme, HP, Finisar, Broadcom, Foundry, Alcatel, D-link, Enterasys, Netgear, Juniper, Nortel, Linksys, Allied, Zyxel, Dell, Redback, H3C, ZTE, Ruijie, Ciena , Alcatel-lucent, etc.
