Wdm 3km 10G SFP+ Transceiver Module Bi - Directional 1310/1310nm Single Fiber

Product Details:
Place of Origin: China
Brand Name: HILINK
Certification: CE FCC Rohs
Model Number: HL-10G-3KM
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: Plastic Case,Carton
Payment Terms: L/C, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 1000pair/momth
  • Detail Information
  • Product Description

Detail Information

Name: 10G 3KM BIDI FIber Type: Single Fiber
Wavelenth: 1310nm Transmission Distance: 3km
Connector: LC Transmission Rate: 10G
High Light:

sfp+ optical transceive

,

sfp+ optical module

Product Description

Wdm 3km 10G BIDI SFP+ Bi-Directional Transceiver 1310/1310nm single fiber optical product



Product Features

  • Supports 9.95 to 10.3Gb/s bit rates
  • Simplex LC Connector
  • Hot pluggable SFP+ footprint
  • Uncooled 1310nm LD transmitter, 1310nm PIN photo-detector
  • Applicable for 3km SMF connection
  • Low power consumption, < 1.0W
  • Digital Diagnostic Monitor Interface
  • Optical interface compliant to IEEE 802.3ae 10GBASE-LR
  • Electrical interface compliant to SFF-8431
  • Operating case temperature:Commerical:0 to 70 °C



Applications

  1. 10GBASE-LR at 10.3125Gbps
  2. 10GBASE-LW at 9.953Gbps
  3. Other optical link



Product Descriptions

Olinkphotonics’OLSB311XL-CD03 series single mode transceiver is small form factor pluggable module for optical data communications such as 10GBASE-LR/LW defined by IEEE 802.3ae. It is with the SFP+ 20-pin connector to allow hot plug capability. The OLSB311XL-CD03 module is designed for single mode fiber and operates at a nominal wavelength 1310nm; The transmitter section meet the class 1 laser compliant according to International Safety Standard IEC-60825.The receiver section uses an integrated InGaAs detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC. The transceiver designs are optimized for high perform -ance and cost effective to supply customers the best solutions for telecommunication.

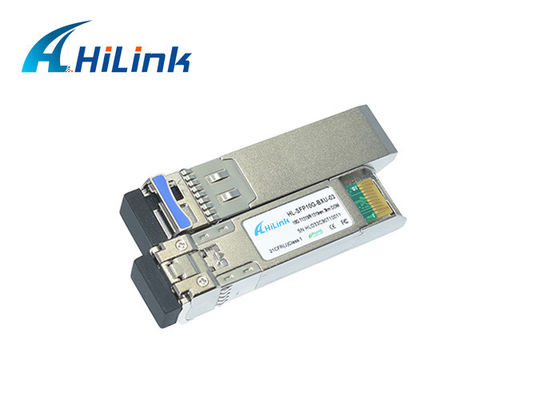

Wdm 3km 10G SFP+ Transceiver Module Bi - Directional 1310/1310nm Single Fiber 0Wdm 3km 10G SFP+ Transceiver Module Bi - Directional 1310/1310nm Single Fiber 1
