Place of Origin:
China
Brand Name:
HILINK
Certification:
CE FCC Rohs
Model Number:
HL-Atte-LC-XX
Hilink 3-7dbm FC Attenuator fiber optical equipment
Features
Application
Fiber optical telecommunication system
Fiber optical CATV
Fiber optical sensor
Testing equipment
Attenuation & Tolerance:
| For S.M. (FC, SC, ST) UPC TYPE For S.M. LC/UPC TYPE For APC TYPE | |
| Attenuation & Tolerance (dB) | 01~10 ± 0.5 01~10 ± 1.0 01~10 ± 1.0 11~15 ± 0.75 11~15 ± 1.5 11~25 ± 1.5 16~20 ± 1.0 16~20 ± 2.0 21~25 ± 1.5 |
| Durability (dB) | 0.2 dB max. increase |
| Wavelength (nm) | 1310/1550 ± 20 100~250 grams 200~600 grams |
| Retention Force | 200~600 grams |
| Return Loss (dB) | ≥55 (UPC Polishing) >65 (APC Polishing) |
| Operating Temperature | -40°C ~ +75°C |
| Storage Temperature | -55°C ~ +85°C |
Technical Standard:

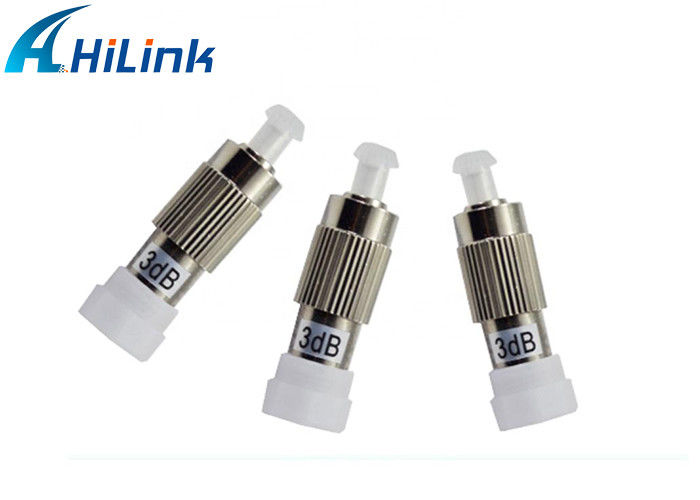

products picture:
