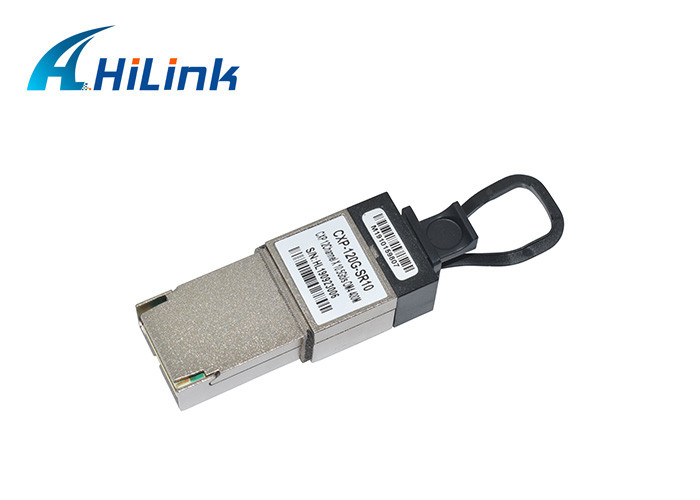

120G SR10 300M MMF Fiber Transceiver Multimode MTP/MPO 100GBASE-SR10 CXP Form Type

120G SR10 300M MMF Fiber Transceiver Multimode MTP/MPO 100GBASE-SR10 CXP Form Type

qsfp transceiver module

qsfp optical module

Place of Origin:

Guangdong, China

Brand Name:

HILINK

Certification:

CE FCC Rohs

Model Number:

HL-CXP-SR

Contact Us
Request A Quote
Product Details
Name:
CSP 120G SR10
Fiber Type:
MMF
Wavelength:
850nm
Form Type:
CXP
Warranty:
3 Years
Distance:
150m/OM4, 100m/OM3
Data Rate:
100G/120G
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiation
Packaging Details
Plastic Case
Payment Terms
L/C, T/T, Western Union, MoneyGram,Paypal
Supply Ability
100pcs/month
Product Description

100GBASE-SR10 CXP MTP/MPO Max 120G SR10 300M MMF Transceiver Module



120G CXP transceiver modules is a high performance, low power consumption, long reach interconnect solution supporting 120G Ethernet, Infiniband QDR DDR SDR 1G/2G/4G/8G/10G fiber channel and PCIE. It is compliant with the 120Gbits Small Form factor Hot-Pluggable CXP-interface.

Hilink 120G CXP transceiver modules is an assembly of 12 full-duplex lanes, where each lane is capable of transmitting data at rates up to 10.5Gb/s, providing an aggregated rate of 120Gb/s.



Features

  • 12-channel full-duplex transceiver module
  • Hot Pluggable CXP footprint
  • Maximum link length of 300m on OM3 or 400m on OM4 Multimode Fiber (MMF)
  • Multirate capability: 1.06Gb/s to 10.5Gb/s per CH
  • Unretimed CPPI electrical interface
  • Requires 3.3V power supply only
  • Low power dissipation: <4.5W
  • Reliable VCSEL array technology
  • Built-in digital diagnostic functions
  • Commercial operating case temperature : 0°C to 70°C
  • Single MPO connector receptacle
  • RoHS-6 Compliant (lead-free)



Application

  • 100GBASE-SR10 100G Ethernet
  • Multiple 1G/2G/4G/8G/10G Fibre Channel
  • Infiniband transmission at 12ch SDR, DDR and QDR
  • Switches, Routers
  • Data Centers
  • Other 120G Interconnect Requirement

120G SR10 300M MMF Fiber Transceiver Multimode MTP/MPO 100GBASE-SR10 CXP Form Type 0120G SR10 300M MMF Fiber Transceiver Multimode MTP/MPO 100GBASE-SR10 CXP Form Type 1
