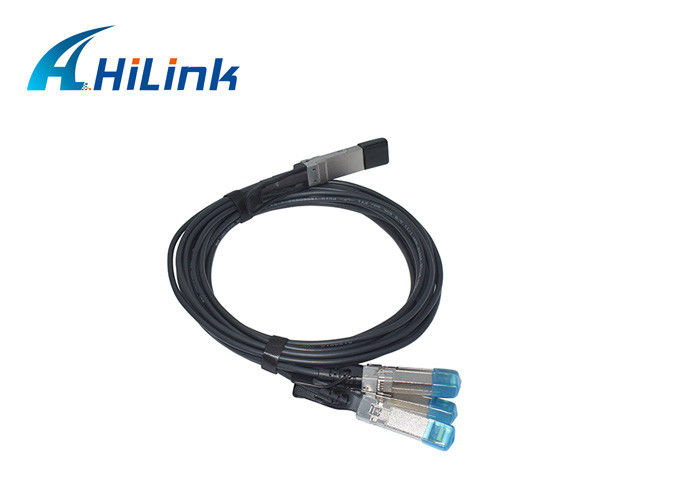

Copper Cable WDM Optical DAC 2 Meter Direct Attach Passive 40G QSFP+ To 4X SFP+ Module
Copper Cable WDM Optical DAC 2 Meter Direct Attach Passive 40G QSFP+ To 4X SFP+ Module Copper Cable WDM Optical DAC 2 Meter Direct Attach Passive 40G QSFP+ To 4X SFP+ Module

Copper Cable WDM Optical DAC 2 Meter Direct Attach Passive 40G QSFP+ To 4X SFP+ Module

Product Details:
Place of Origin: China
Brand Name: HILINK
Certification: CE FCC Rohs
Model Number: HL-40G DAC
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Delivery Time: 3~7working days
Contact Now
  • Detail Information
  • Product Description

Detail Information
Brand Name: Can Be Customized Module: QSFP+ To 4 X SFP+
Wire AWG: 30 AWG Warranty: 3 Years
Condition: New Material: LSZH
Certificate: CE, ROHS, FCC Cable Type: Passive Copper Cable
High Light:

fiber optic wdm

,

optical wdm

Product Description

40G QSFP+ to 4X SFP+ module copper cable DAC 2 meter Direct Attach Passive





Features:
  • QSFP (40G) to 4x SFP+ (10G) Splitter Cable - 1m (3.3 ft)
  • Connector A: (1) QSFP 40.0 Gb/s Rated Connector (SFF-8436 Compliant)
  • Connector B: (4) SFP+ 10.0 Gb/s Rated Connectors (SFF-8431 Compliant)
  • Economically Links up a QSFP port with an Upstream 10GbE-SFP+ Switch
  • AWG30
  • Protocol agnostic support of 40GbE, QDR InfiniBand, SAS & Fibre Channel
  • Up to 10.3125 Gb/s transfer rate per SFP+ channel (40 Gb/s aggregate)
  • Robust Zinc die-cast SFP+ & QSFP connectors with pull-to-release latching
  • Bridge the gap between your 10G and 40G capable switches/host adapters
  • Low cross-talk and pair-to-pair skew maintains signal integrity
  • Fully compliant to the latest SFP+ & QSFP MSA (Multi-Source-Agreement)
  • Supports all current 10-Gigabit Ethernet and 40-Gigabit Ethernet standards
  • Designated form factor and electrical compliance for QDR InfiniBand
  • The perfect direct attached storage splitter cable for Fibre Channel & SAS
  • Enjoy a reduced power budget and lower port cost compared to optical
  • Fully RoHS compliant for environmental protection


Applications:

  • Servers, Switches, Storage, and
  • Network Interference Cards (NICs)
  • High Performance Computing Clusters
  • 40G/4x10G Ethernet Applications
  • 4x Infiniband, SDR, DDR, QDR







QSFP Cable Series



Part Number Description Data Rate Length Cable Type Temp. Range(°C)
CAB-Q10/Q10-P50CM 40GbE QSFP+ Copper Cable, 0.5-Meter, Passive, QDR 40Gbps 50 cm Passive Twinax 0~70
CAB-Q10/Q10-P1M 40GbE QSFP+ Copper Cable, 1-Meter, Passive, QDR 40Gbps 1 m Passive Twinax 0~70
CAB-Q10/Q10-P2M 40GbE QSFP+ Copper Cable, 2-Meter, Passive, QDR 40Gbps 2 m Passive Twinax 0~70
CAB-Q10/Q10-P2.5M 40GbE QSFP+ Copper Cable, 2.5-Meter, Passive, QDR 40Gbps 2.5 m Passive Twinax 0~70
CAB-Q10/Q10-P1M 40GbE QSFP+ Copper Cable, 1-Meter, Passive, QDR 40Gbps 1 m Passive Twinax 0~70
CAB-Q10/Q10-P3M 40GbE QSFP+ Copper Cable, 3-Meter, AWG 30, Passive, QDR 40Gbps 3 m Passive Twinax 0~70
CAB-Q10/Q10-P5M 40GbE QSFP+ Copper Cable, 5-Meter, AWG 26, Passive, QDR 40Gbps 5 m Passive Twinax 0~70
CAB-Q10/Q10-A3M 40Gbase QSFP+ DAC Cable, 3-Meter, Active 40Gbps 3 m Active Twinax 0~70
CAB-Q10/Q10-A5M 40Gbase QSFP+ DAC Cable, 5-Meter, Active 40Gbps 5 m Active Twinax 0~70
CAB-Q10/Q10-A7M 40Gbase QSFP+ DAC Cable, 7-Meter, Active 40Gbps 7 m Active Twinax 0~70
CAB-Q10/Q10-A10M 40Gbase QSFP+ DAC Cable, 10-Meter, Active 40Gbps 10 m Active Twinax 0~70
CAB-Q10/Q10-P7M 40GbE QSFP+ Copper Cable, 7-Meter, AWG26, Passive, QDR 40Gbps 7 m Passive Twinax 0~70
CAB-QSFP/4SFP-P50CM QSFP+ to 4 SFP+ Copper Breakout Cable, 0.5-Meter, Passive 40Gbps 50 cm Passive Twinax 0~70
CAB-Q10/4S-P1M QSFP+ to 4 SFP+ Copper Breakout Cable, 1-Meter, Passive 40Gbps 1 m Passive Twinax 0~70
CAB-Q10/4S-P2M QSFP+ to 4 SFP+ Copper Breakout Cable, 2-Meter, Passive 40Gbps 2 m Passive Twinax 0~70
CAB-Q10/4S-P3M QSFP+ to 4 SFP+ Copper Breakout Cable, 3-Meter, Passive 40Gbps 3 m Passive Twinax 0~70
CAB-Q10/4S-P5M QSFP+ to 4 SFP+ Copper Breakout Cable, 5-Meter, Passive 40Gbps 5 m Passive Twinax 0~70
CAB-Q10/4S-A3M 40Gbase QSFP+ to 4 SFP+ DAC Cable, 3-Meter, Active 40Gbps 3 m Active Twinax 0~70
CAB-Q10/4S-A5M 40Gbase QSFP+ to 4 SFP+ DAC Cable, 5-Meter, Active 40Gbps 5 m Active Twinax 0~70
CAB-Q10/4S-A7M 40Gbase QSFP+ to 4 SFP+ DAC Cable, 7-Meter, Active 40Gbps 7 m Active Twinax 0~70
CAB-Q10/4S-A10M 40Gbase QSFP+ to 4 SFP+ DAC Cable, 10-Meter, Active 40Gbps 10 m Active Twinax 0~70
CAB-QSFP/CX4-P50CM QSFP to CX4 DDR Cable, 0.5-Meter, Passive 40Gbps 50 cm Passive Twinax 0~70
CAB-QSFP/CX4-P1M QSFP to CX4 DDR Cable, 1-Meter, Passive 40Gbps 1 m Passive Twinax 0~70
CAB-QSFP/CX4-P2M QSFP to CX4 DDR Cable, 2-Meter, Passive 40Gbps 2 m Passive Twinax 0~70
CAB-QSFP/CX4-P3M QSFP to CX4 DDR Cable, 3-Meter, Passive 40Gbps 3 m Passive Twinax 0~70
CAB-QSFP/CX4-P5M QSFP to CX4(SFF-8470) DDR Cable, 5-Meter, Passive 40Gbps 5 m Passive Twinax 0~70
CAB-QSFP/8088-P50CM QSFP to MiniSAS(SFF-8088) DDR Cable, 0.5-Meter 40Gbps 50 cm Passive Twinax 0~70
CAB-QSFP/8088-P1M QSFP to MiniSAS(SFF-8088) DDR Cable, 1-Meter 40Gbps 1 m Passive Twinax 0~70
CAB-QSFP/8088-P2M QSFP to MiniSAS(SFF-8088) DDR Cable, 2-Meter 40Gbps 2 m Passive Twinax 0~70
CAB-QSFP/8088-P3M QSFP to MiniSAS(SFF-8088) DDR Cable, 3-Meter 40Gbps 3 m Passive Twinax 0~70
CAB-QSFP/8088-P5M QSFP to MiniSAS(SFF-8088) DDR Cable, 5-Meter 40Gbps 5 m Passive Twinax 0~70
CAB-QSFP/8088-P7M QSFP to MiniSAS(SFF-8088) DDR Cable, 7-Meter 40Gbps 7 m Passive Twinax 0~70
CAB-Q14/Q14-P1M 56Gb/s QSFP+ FDR DAC Cable, 1-Meter 56Gbps 1 m Passive Twinax 0~70
CAB-Q14/Q14-P2M 56Gb/s QSFP+ FDR DAC Cable, 2-Meter 56Gbps 2 m Passive Twinax 0~70
CAB-Q14/Q14-P3M 56Gb/s QSFP+ FDR DAC Cable, 3-Meter 56Gbps 3 m Passive Twinax 0~70











Real Photo Show



Copper Cable WDM Optical DAC 2 Meter Direct Attach Passive 40G QSFP+ To 4X SFP+ Module 0















Company Information



Copper Cable WDM Optical DAC 2 Meter Direct Attach Passive 40G QSFP+ To 4X SFP+ Module 1







OEM and ODM

OEM/ODM order is available.





Guarantee
We promise all the advertised optical transceivers are brand new with new components and parts and absolutely never use old and refurbished materials. All the optical transceivers have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.







Our related products



Copper Cable WDM Optical DAC 2 Meter Direct Attach Passive 40G QSFP+ To 4X SFP+ Module 2





​Packaging

  • We provide safe and reliable packaging: Static bag, Plastic bag, Retail box or by required
  • Delivery time:1-5 working days



Shipment

  • International Express: DHL, FedEx,EMS,TNT, UPS and so on. It takes 1-5 days.

Copper Cable WDM Optical DAC 2 Meter Direct Attach Passive 40G QSFP+ To 4X SFP+ Module 3









FAQ:

1. Q:Do you sell second-hand products?
A:No.All our products are brand new,we never use second-hand components.

2. Q:What payment terms do you accept?
A:T/T,Paypal,Western Union are acceptable.

3. Q:What are the shipping ways can you offer?
A:Our usual shipping ways are DHL,FedEX,TNT,UPS,EMS etc.It will take 3-7days.

4. Q:Do your products come with warranty?
A:Yes,We provide 3 years warranty for all our products from the date of shipment.

5. Q:What devices can your products compatible with?
A:Our products are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Riverstone, Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.

6. Q:How to place an order?
A:1>Order details confirmed,please tell us the model and quantity you need.
2>Proforma Invoice confirmed, the order will be arranged upon receipt of your payment.
3>Confirm and ship the goods, then tracking number will be sent to you promptly.
4>We will help to track your goods until you receive them safely.
