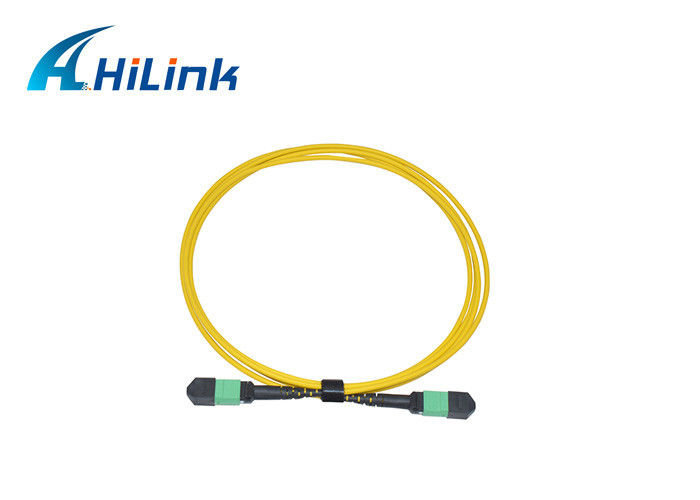

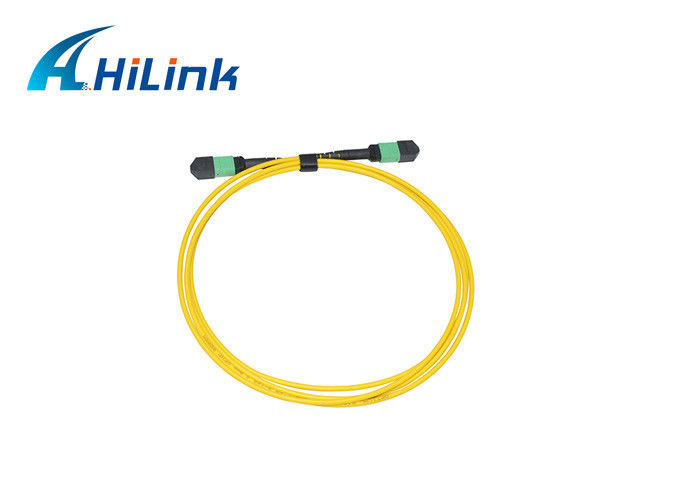

Name: MTP-MTP OFNP PVC LSZH 2M 3.0mm Single Mode Patch Cord
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: HL-patch cord
Price: 12.00 USD
Availability: InStock

Home > products > WDM Fiber Optic >

MTP-MTP OFNP PVC LSZH 2M 3.0mm Single Mode Patch Cord

lszh fiber optic patch cable

2m fiber optic patch cord

Place of Origin:

China

Brand Name:

HILINK

Certification:

CE FCC Rohs

Model Number:

HL-patch cord

Request A Quote

MTP-MTP OFNP PVC LSZH 2M 3.0mm Single Mode Patch Cord

Product Details

Brand Name:

Customized

Length:

2 Meter

Connector:

MTP-MTP

Fiber Type:

Duplex Or Simplex

Cable Diameter:

3.0mm

Warranty:

3 Years

Condition:

New

Material:

OFNP/PVC/LSZH

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Price

Negotiable

Delivery Time

3~7working days

Cir-3P-55-LCU-ABS WDM Fiber Optic 3port LC/UPC SC/APC 1550nm Circulator Equipment

Get Best Price

Steel Tube 1x2 CWDM 1620nm WDM Fiber Optic SC APC CWDM Mux Demux

Get Best Price

1*2ch Steel Tube CWDM Fiber Optic DWDM FWDM 1310nm 1490nm 1550nm

Get Best Price

Singlemode Fixed Fiber Optic Attenuator Male Female 10dB LC/UPC Connector

Get Best Price

86-755-8317-6243

Contact Now

Product Description

MTP-MTP single mode patch cord 12 fiber length 2M 3.0mm OFNP/PVC/LSZH Material

Features:

Stable and high quality

Meet IEC, JIS, Bellcore international standard requirements

High performance and cost effective

Mass and flexible production meeting various demand

Custom assemblies available upon request

OEM available upon request

Desciption:

Fiber Optic Patch Cable is also known as fiber optic jumper or fiber optic patch cord. Fiber Optic Patch Cable is important of optical network. They have same or different connectors which are installed on the end of fiber optic cable. Fiber optic patch cables are used in two major application areas: computer work station to outlet and patch panels or optical cross connect distribution center. The Fiber Optic Patch Cord series comes with a comprehensive collection of lengths and connectors to fulfill your demand for the deployment.

The fiber optic patch cords are available in all connector styles Various color cable available upon customers' request Os1 (9/125um), OM1 (62.5/125um), OM2 (50/125um) and OM3 (50/125um) are available.For cable type, G655 & G657 are also available. And any length is available upon request For jacket, PVC (Riser) is normal and LSZH & Plenum are also available.

Pigtail Connector	PC (SM)	UPC (SM)	APC (SM)	MM
Return Loss (dB)	≥45	≥50	≥60	≥35
Insertion Loss (dB)	≤0.2 (max≤0.3)
Repeatability (dB)	≤0.1
Durability(1/Matings)	≥500
Operation Temperature (°C)	-25~+70
Tensile Strength (N)	≥90 (Φ3.0), ≥70 (Φ2.0), Φ0.9
Fiber	9/125um, 50/125um,62.5/125um,ect
diameter	0.9mm 2.0mm, 3.0mm etc
Cable material	PVC, LSZH
Cores	Simplex, duplex, 4cores, 6cores, 8cores, 12cores etc

Applications:

Machine room

FTTH

Area network

Test equipment

National defense

FO sensor

Light communication system

Common antenna TV system

Connectors Details:

MTP-MTP OFNP PVC LSZH 2M 3.0mm Single Mode Patch Cord 0

Other products

MTP-MTP OFNP PVC LSZH 2M 3.0mm Single Mode Patch Cord 1

Other Patch cord

MTP-MTP OFNP PVC LSZH 2M 3.0mm Single Mode Patch Cord 2

Guarantee
We promise all the advertised optical transceivers are brand new with new components and parts and absolutely never use old and refurbished materials. All the optical transceivers have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.

OEM and ODM

OEM/ODM order is available.

Shipment

International Express: DHL, FedEx,EMS,TNT, UPS and so on. It takes 1-5 days.

MTP-MTP OFNP PVC LSZH 2M 3.0mm Single Mode Patch Cord 3

Packaging

We provide safe and reliable packaging: Static bag, Plastic bag, Retail box or by required

Delivery time:1-5 working days
