Shenzhen HiLink Technology Co.,Ltd.

1370nm 20km 10G CWDM SFP+ DOM Transceiver Module

Product Details:
Place of Origin: China
Brand Name: HILINK
Certification: CE FCC Rohs
Model Number: HL-CW-SFPxx
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: Plastic case,Carton
Payment Terms: L/C, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 999PCS/month
  • Detail Information
  • Product Description

Detail Information

Name: 10G CWDM SFP+ Distance:: Up To 20km
DOM: YES Rate: 10G
Wavelength: 1370nm Warranty: 3 Years
LOGO: Can Be Customized
High Light:

1370nm Optical Transceiver Module


10G Sfp Fiber Optic Transceiver

Product Description

Coarse Wavelength Division Multiplexing SFP 10G 1370nm 20km Compatible 10G CWDM SFP+ DOM OEM Transceiver Module


Product Features

Supports 9.95 to 10.5Gb/s bit rates

Duplex LC connector

Hot pluggable SFP+ footprint

Uncooled 1270nm~1610nm DFB transmitter, PIN photo-detector

Applicable for 20km SMF connection

Low power consumption, < 1W

Digital Diagnostic Monitor Interface

Optical interface compliant to IEEE 802.3ae 10GBASE-LR

Electrical interface compliant to SFF-8431

Operating case temperature:

Commerical:0 to 70 °C

Industrial:-40 to 80 °C



10GBASE-LR/LW at 10.3125Gbps

10G Ethernet

Other optical links


Product Descriptions

HLSCXX1XL-CD20 CWDM DFB 10Gbps SFP+ transceiver is designed to transmit and receive optical data over single mode optical fiber for link length 20km.


This transceiver consists of two sections: The transmitter section incorporates a CWDM DFB laser. And the receiver section consists of a PIN photodiode integrated with a TIA. All modules satisfy class I laser safety requirements. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.

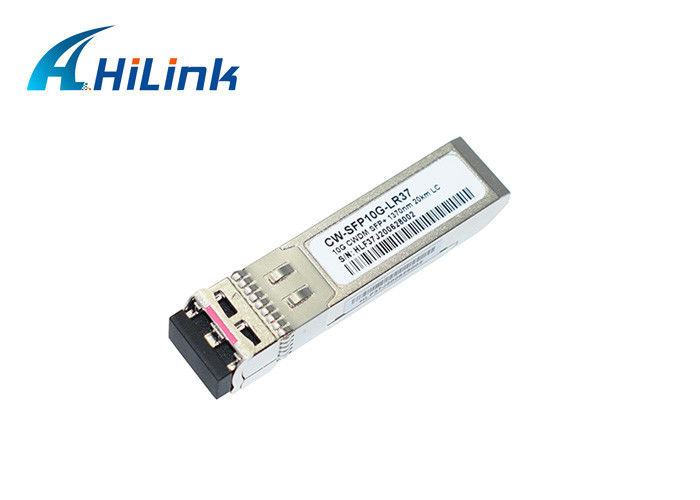

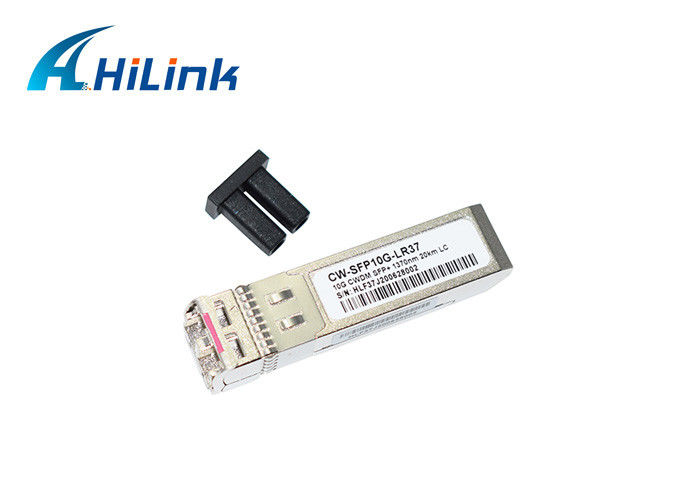

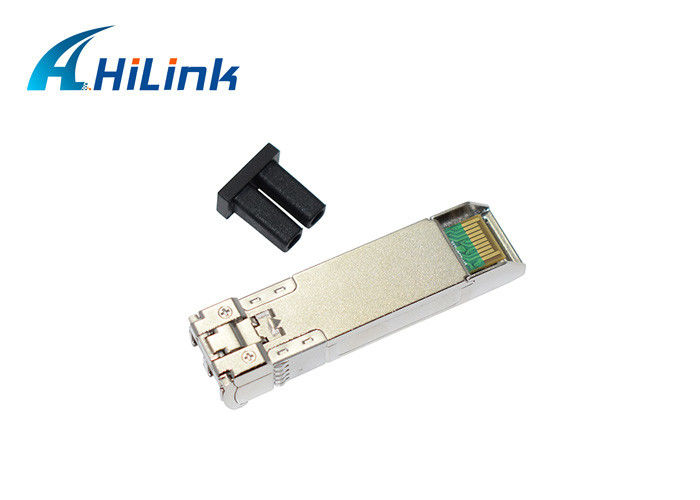

1370nm 20km 10G CWDM SFP+ DOM Transceiver Module 0
