QSFP-40G-ER4 1310nm 30km QSFP+ Optical Transceiver Module

30km QSFP+ Optical Transceiver Module

1310nm QSFP+ Optical Transceiver Module

40G QSFP28 LR4 Transceiver Module

Place of Origin:

Guangdong, China

Brand Name:

HILINK

Certification:

CE FCC Rohs

Model Number:

HL--QSFP28-ER4

Request A Quote

QSFP-40G-ER4 1310nm 30km QSFP+ Optical Transceiver Module

Product Details

Product Name:

40G QSFP28 LR4

Application:

100Gbp/s

Wavelength:

1270-1330nm

Distance:

30KM

Connector:

DDM/DOM:

Yes

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Price

Negotiable

Packaging Details

Static bag, Plastic bag, Retail box

Delivery Time

2-7 working days

Payment Terms

T/T, Western Union,Paypal

Supply Ability

50pcs/Week

HL-QSFP28-100G-80 100Gb/s QSFP28 BiDi 80km Transceiver Hot Pluggable Simplex LC Connector EML+PIN with SOA Single mode DDM

Get Best Price

100G QSFP28 BIDI Optical Transceiver 40KM 100G-ER1-40 MSA EML laser APD receiver 1309.14nm/1304.58nm

Get Best Price

LC Connector SOA Pin Fiber Optic Transceiver Good Communication Networking Product QSFP28 ZR4 80KM LWDM4 1295-1304NM

Get Best Price

Generic QSFP-40G-ZR4 Compatible 40GBASE-ZR4 Optical Transceiver Module 1550nm 100km EML+ APD Communication & Networking Product

Get Best Price

86-755-8317-6243

Contact Now

Product Description

Compatible with QSFP-40G-ER4 40G QSFP+ 1310nm 25-30km QSFP+ Optical Transceiver Module

This product is a transceiver module designed for 30km optical communication applications. The design is compliant to 40GBASE-ER4 of the IEEE P802.3ba standard. The module converts 4 inputs channels (ch) of 10Gb/s electrical data to 4 CWDM optical signals, and multiplexes them into a single channel for 40Gb/s optical transmission. Reversely, on the receiver side, the module optically de-multiplexes a 40Gb/s input into 4 CWDM channels signals, and converts them to 4 channel output electrical data.

The central wavelengths of the 4 CWDM channels are 1271, 1291, 1311 and 1331 nm as members of the CWDM wavelength grid defined in ITU-T G694.2. It contains a duplex LC connector for the optical interface and a 148-pin connector for the electrical interface. To minimize the optical dispersion in the long-haul system, single-mode fiber (SMF) has to be applied in this module.

Features:
4 CWDM channels are 1271, 1291,1311 and 1331 nm
Single +3.3V power supply
QSFP+ MSA compliant
Up to 30km transmission

Digital diagnostic capabilitie

CML compatible electrical I/O

Single +3.3V power supply

Operating case temperature: 0°C to 70°C(Standard), -40°C to 85°C (Industrial)

Applications:
40G Ethernet
Infiniband DDR QDR
40G Telecom connections

QSFP Series :

ordering information
Part Number	Product Description
HiLink-QSFP-40G-SR4	QSFP+, 40Gb/s, 40GBASE-SR4, MMF, 850nm, 100M
HiLink-QSFP-40G-LR4	QSFP+, 40Gb/s, 40GBASE-LR4, SMF, 1310nm, 10KM
HiLink-QSFP-100G-SR4	QSFP+, 100Gb/s, 100GBASE-SR4, MMF, 850nm, 100M
HiLink-QSFP-100G-LR4	QSFP+, 100Gb/s, 100GBASE-LR4, SMF, 1310nm, 10KM

Product Pictures:

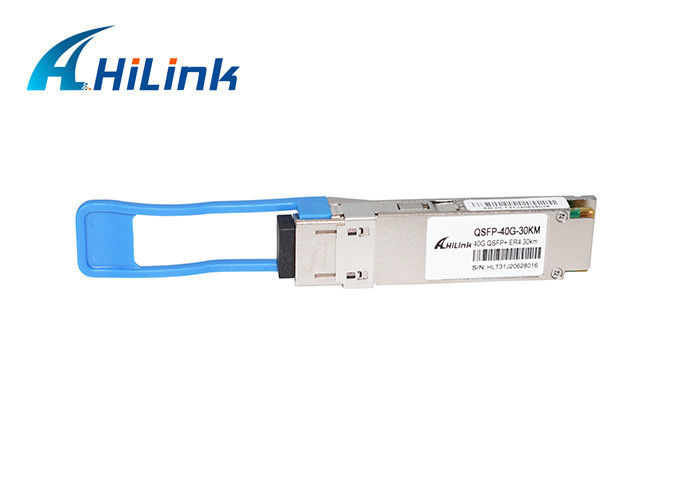

QSFP-40G-ER4 1310nm 30km QSFP+ Optical Transceiver Module 0

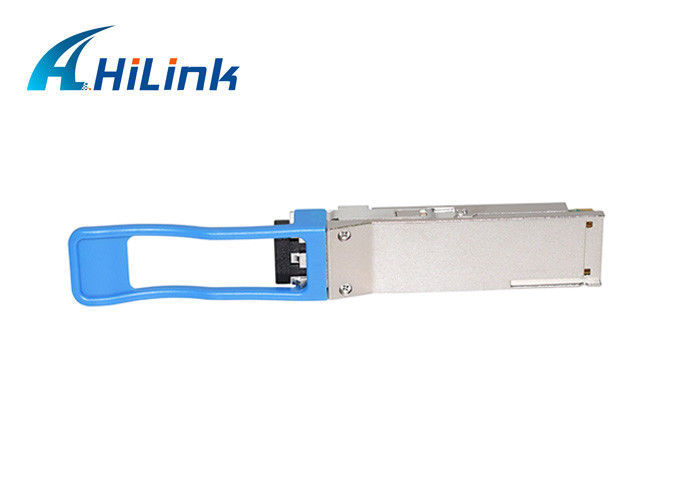

QSFP-40G-ER4 1310nm 30km QSFP+ Optical Transceiver Module 1

QSFP-40G-ER4 1310nm 30km QSFP+ Optical Transceiver Module 2

Shipment :

International Express: DHL, FedEx,EMS,TNT, UPS and so on. It takes 3-7 days.
