20km GPON OLT SFP Transceiver Module Tx1490nm Rx1310nm

Product Details:
Place of Origin: China
Brand Name: HILINK
Certification: CE FCC Rohs
Model Number: HL-GPON-OLT-C++
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Carton box, Retail box, Or by required
Delivery Time: 1-4 days
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 3000 pcs per Week
  • Detail Information
  • Product Description

Detail Information

Data Transfer Rate: 2.5G/1.25G Max Distance: 20km
Wavelength: Tx1490nm/Rx1310nm Interface: SC
Warranty: 3 Years Certification: CE/FCC/RoHS
Class: C++ Application: GPON OLT
High Light:

GPON OLT SFP Transceiver Module

,

20km SFP Transceiver Module

,

Rx1310nm SC Fiber Transceiver Module

Product Description

2.5G/1.25G Tx1490nm/Rx1310nm GPON OLT SFP C++

Hilink GPON OLT SFP transceiver is the high performance module for single fiber by using 1490nm continuous-mode transmitter and 1310nm burst-mode receiver. It is optical line terminal(OLT) for ITU-T G984.2. The optical transceiver is compliant with the Small Form- Factor Pluggable (SFP) Multi-Source Agreement (MSA).

The transmitter section uses a 1490nm DFB LD with automatic power control (APC) function and temperature compensation circuitry to ensure stable extinction ratio over all operating temperature range. and is ClassⅠlaser compliant IEC825 and CDRH standards.The receiver has a hermetically packaged burst-mode APD-TIA (trans-impedance amplifier) pre-amplifier and a burst-mode limiting amplifier with LVPECL compatible differential outputs.



Features:

Support ITU-T G.984.2 GPON OLT C++ application
Single fiber bi-directional data links with symmetric 2.488Gbps Tx and 1.244Gbps Rx
1490nm continuous-mode transmitter with DFB LD
1310nm burst-mode receiver with APD-TIA
2-wire interface for integrated digital diagnostic Monitoring
Receiver RESET, Signal Detect, RSSI function indication (RESET, RX_SD, RSSI)
SFP package with SC/UPC receptacle optical interface
Single +3.3V power supply
Operation case temperature 0~70°C for commercial
RoHS6 compliance
Applications:
PON System

GPON OLT SFP BiDi Transceiver

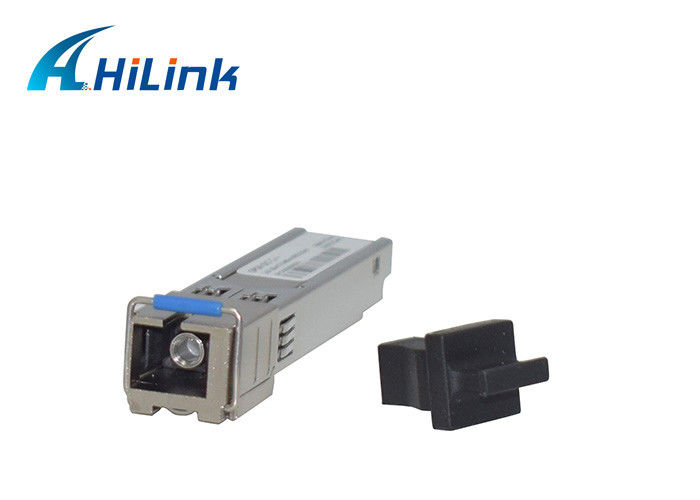

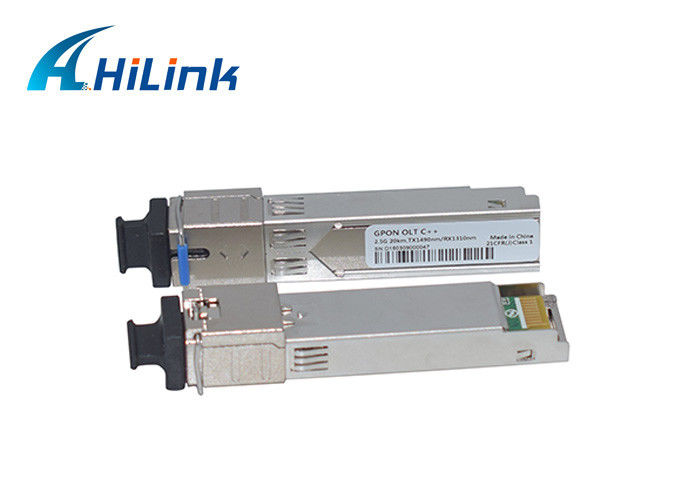

20km GPON OLT SFP Transceiver Module Tx1490nm Rx1310nm 020km GPON OLT SFP Transceiver Module Tx1490nm Rx1310nm 1



EPON OLT PX20+ EPON OLT PX20+, 20km, Tx 1490nm 1.25G, Rx 1310nm 1.25G, SFP form-factor, SC/UPC receptacle connector, Commercial temperature
EPON OLT PX20++ EPON OLT PX20++, 20km, Tx 1490nm 1.25G, Rx 1310nm 1.25G, SFP form-factor, SC/UPC recetacle connector, Commercial temperature TX5 ~7db
EPON OLT 7dBm EPON OLT PX20++ Enhanced, 20km, Tx 1490nm 1.25G, Rx 1310nm 1.25G, SFP form-factor, SC/UPC receptacle connector, Commercial temperature 7DB
GPON OLT B+ GPON OLT B+, 20km, TX 1490nm 2.488Gbps, RX 1310nm 1.244Gbps, SFP, BIDI SC/UPC Receptacle, Commercial Temperature
GPON OLT C+ GPON OLT C+, 20km, TX 1490nm 2.488Gbps, RX 1310nm 1.244Gbps, SFP, BIDI SC/UPC Receptacle, Commercial Temperature
GPON OLT C++ GPON OLT C++, 20km, TX 1490nm 2.488Gbps, RX 1310nm 1.244Gbps, SFP, BIDI SC/UPC Receptacle, Commercial Temperature
GPON OLT 7dBm GPON OLT C++ Enhanced, 20km, TX 1490nm 2.488Gbps, RX 1310nm 1.244Gbps, SFP+, BIDI SC/UPC Receptacle, Commercial Temperature
GPON ONU SFP GPON ONU SFP, G.984.5, 20km, Tx 1310nm 1.244G, Rx 1490nm 2.488G, SFP form-factor, SC/UPC receptacle connector, Industrial temperature, BEN low active
EPON ONU SFP EPON ONU SFP, G.984.2, 20km, Tx 1310nm 1.25G, Rx 1490nm 1.25G, SFP form-factor, SC/UPC receptacle connector, Commercial temperature
GPON ONU STICKER B+ SFP ONU SFP MAC/ Tx1310/Rx1490 DFB+APD 1.25G/2.5G

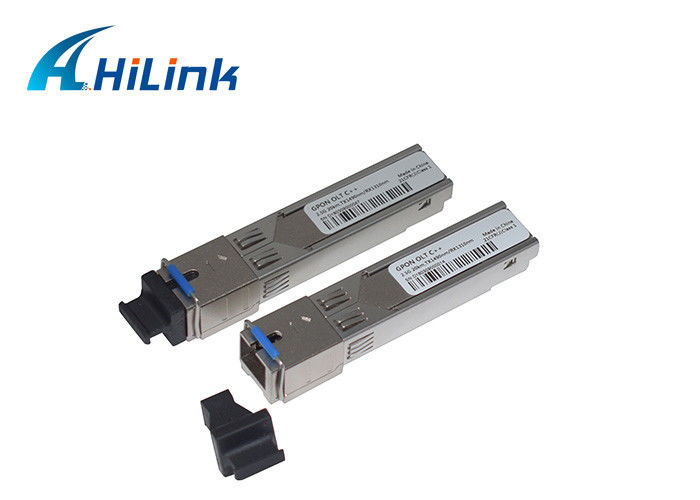

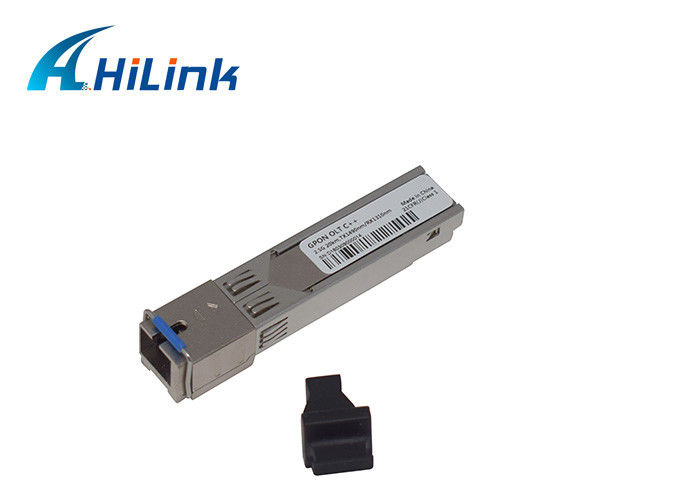

20km GPON OLT SFP Transceiver Module Tx1490nm Rx1310nm 2
