QSFP+ 1310nm 20km LC DOM Optical Transceiver Module 40GBASE-LR4

QSFP+ 1310nm 20km LC DOM Optical Transceiver Module 40GBASE-LR4

Product Details:

Place of Origin: China
Brand Name: HILINK
Certification: CE FCC Rohs
Model Number: HL-QSFP-40G

Payment & Shipping Terms:

Minimum Order Quantity: 2pcs
Price: Negotiable
Packaging Details: Static bag, Plastic Flat, Retail box, by requires
Payment Terms: L/C, T/T, Western Union.Paypal
Supply Ability: 100/PCS/MONTH
Get Best Price Contact Now

Detail Information

Data Rate: 40G Distance: 20KM
Wavelength: 1310nm Fiber Connector: LC
Warranty: 3 Years DDM: Yes
High Light:

LC DOM Optical Transceiver Module

,

QSFP+ 1310nm Optical Transceiver Module

,

40GBASE-LR4

Product Description

 QSFP+ 1310nm 20km 40GBASE-LR4 Compatible SMF LC DOM Transceiver Module



Features

Data-rate of 40Gbps operation

4 CWDM lanes MUX/DEMUX design

Up to 11.2Gbps data rate per wavelength

QSFP+ MSA compliant

Up to 10km transmission

Maximum 3.5W operation power

RoHS compliant

Compatible with RoHS,CE,FCC

+3.3V single power supply

Operating case temperature:

Temperature : 0 to +70°C



Applications

Gigabit Ethernet

Fiber Channel

Switch to Switch interface

Switched backplane applications

Router/Server interface

Other optical transmission systems

40G SFP Transceiver

Part Number Product Description
HL-QSFP-SR4 850nm, 40G, 150m, 0ºC ~ +70ºC
HL-QSFP-CSR4 850nm, 40G, 400m, 0ºC ~ +70ºC
HL-QSFP-LR4



1310nm, 40G, 10km, 0ºC ~ +70ºC

HL-10GQSFP-CA-1M 10G, copper with 1M optical cable



Shipment

International Express: DHL, FedEx,EMS,TNT, UPS and so on. It takes 2-7 days.



OEM and ODM

OEM/ODM order is available



Guarantee
We promise all the advertised optical transceivers are brand new with new components and parts and absolutely never use old and refurbished materials. All the optical transceivers have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.



What we supply

We supply all kinds of compatible optical transceiver modules, including SFP, GBIC, SFP+, XENPAK, X2 , XFP, BIDI,CWDM,DWDM and other special transceiver modules. Our products are compatible with Mainstream switches.

  • QSFP+ 20Km Reach

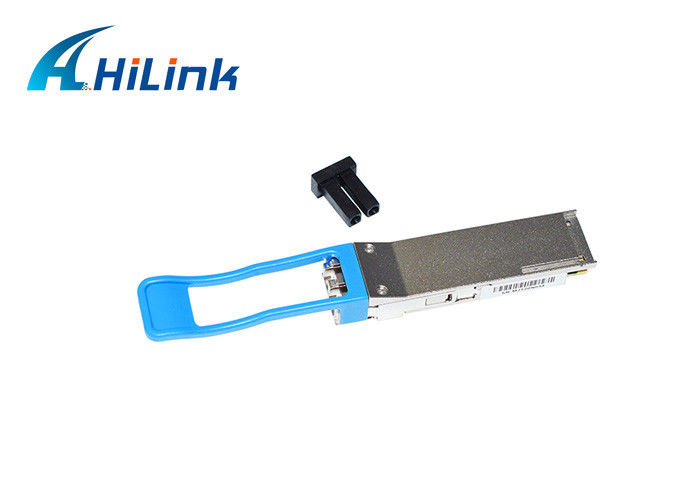

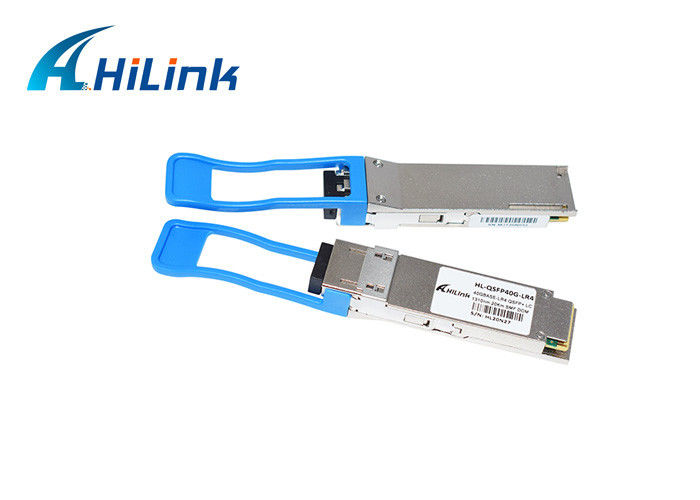

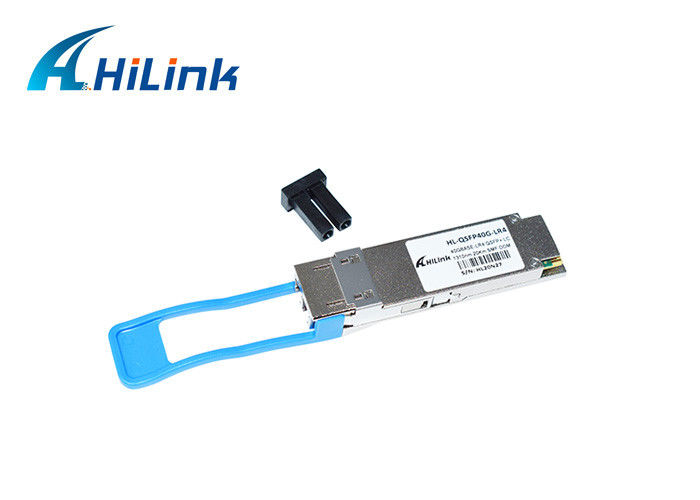

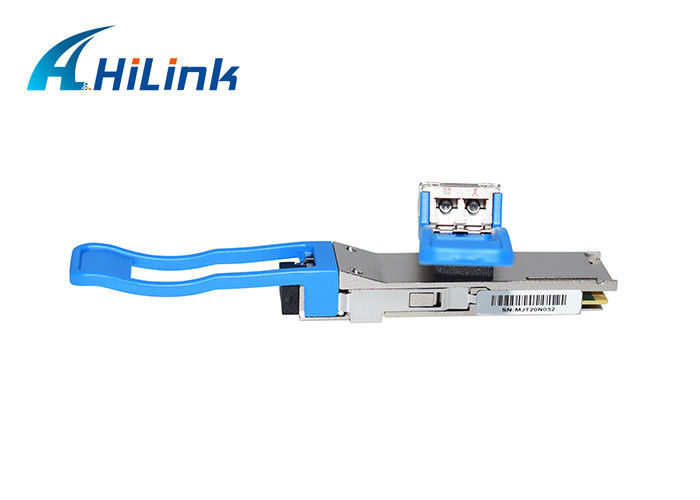

Product picture show



QSFP+ 1310nm 20km LC DOM Optical Transceiver Module 40GBASE-LR4 0QSFP+ 1310nm 20km LC DOM Optical Transceiver Module 40GBASE-LR4 1QSFP+ 1310nm 20km LC DOM Optical Transceiver Module 40GBASE-LR4 2QSFP+ 1310nm 20km LC DOM Optical Transceiver Module 40GBASE-LR4 3
