40G QSFP+ 40KM LC Optical Transceiver Module 1330nm Duplex LC
40G QSFP+ 40KM LC Optical Transceiver Module 1330nm Duplex LC
40G QSFP+ 40KM LC Optical Transceiver Module 1330nm Duplex LC 40G QSFP+ 40KM LC Optical Transceiver Module 1330nm Duplex LC 40G QSFP+ 40KM LC Optical Transceiver Module 1330nm Duplex LC

40G QSFP+ 40KM LC Optical Transceiver Module 1330nm Duplex LC

Product Details:
Place of Origin: China
Brand Name: HILINK
Certification: CE FCC Rohs
Model Number: HL-QSFP-40G
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Static bag, Plastic Flat, Retail box, by requires
Payment Terms: L/C, T/T, Western Union.Paypal
Supply Ability: 100/PCS/MONTH
Contact Now
  • Detail Information
  • Product Description

Detail Information
Type: 40G QSFP+ Distance: 40 Km
Wavelength: 1271 1291 1311 1331nm Operating Temperature: 0~+70℃
Connector: Duplex LC Warranty: 3 Years
High Light:

40KM LC Optical Transceiver Module

,

40G QSFP+Optical Transceiver Module

,

1330nm Qsfp Transceiver Module

Product Description

1270/1290/1310/1330nm 40G QSFP+ 40KM LC Connector Optical Transceiver Module



PRODUCT DESCRIPTIONS



          The HLQSFP40 is a transceiver module designed for 40Km optical communication applications. The design is compliant to 40GBASE-ER4 of the IEEE P802.3ba standard. The module converts 4 inputs channels (ch) of 10Gb/s electrical data to 4 CWDM optical signals, and multiplexes them into a single channel for 40Gb/s optical transmission. Reversely, on the receiver side, the module optically de-multiplexes a 40Gb/s input into 4 CWDM channels signals, and converts them to 4 channel output electrical data.
          The central wavelengths of the 4 CWDM channels are 1271, 1291, 1311 and 1331 nm as members of the CWDM wavelength grid defined in ITU-T G694.2. It contains a duplex LC connector for the optical interface and a 38-pin connector for the electrical interface. To minimize the optical dispersion in the long-haul system, single-mode fiber (SMF) has to be applied in this module.



PRODUCT FEATURES


4 CWDM lanes MUX/DEMUX design
Aggregate bandwidth of > 40Gbps
Compliant with 40G Ethernet IEEE802.3ba and 40GBASE-ER4 Standard
Up to 40km transmission
Single +3.3V power supply operating
Temperature range 0°C to 70°C
RoHS Compliant



APPLICATIONS

Data centers Switches and Routers
Switches and Routers
40G BASE-ER4 Ethernet Links



QSFP SERIES



Part Number Product Description
HL-QSFP-40G-SR4 QSFP+,40Gb/s, 40GBASE-SR4, MMF, 850nm, 150M
HL-QSFP-40G-LR4 QSFP+, 40Gb/s, 40GBASE-LR4, SMF, 1310nm, 10KM
HL-QSFP-40G-ER4 QSFP+, 40Gb/s, 40GBASE-ER4, SMF, 1310nm, 40KM
HL-QSFP28-100G-SR4 QSFP+, 100Gb/s, 100GBASE-SR4, MMF, 850nm, 150M
HL-QSFP28-100G-LR4 QSFP+, 100Gb/s, 100GBASE-LR4, SMF, 1310nm, 10KM
HL-QSFP28-100G-ER4 QSFP+, 100Gb/s, 100GBASE-ER4, SMF, 1310nm, 40KM
HL-QSFP28-100G-ZR4 QSFP+, 100Gb/s, 100GBASE-ZR4, SMF, 1310nm, 80KM

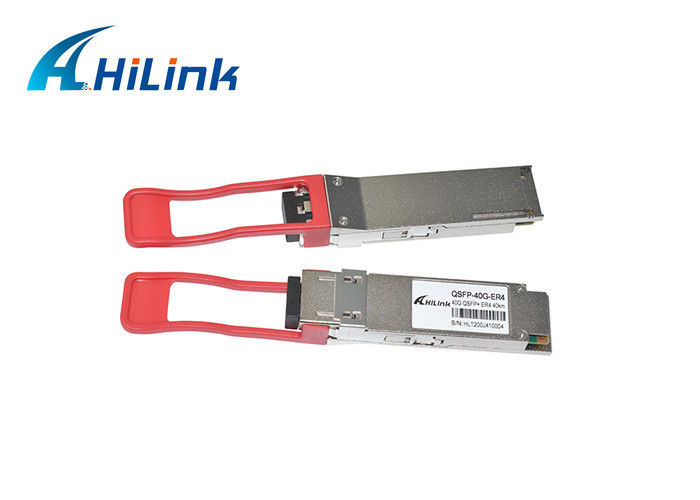

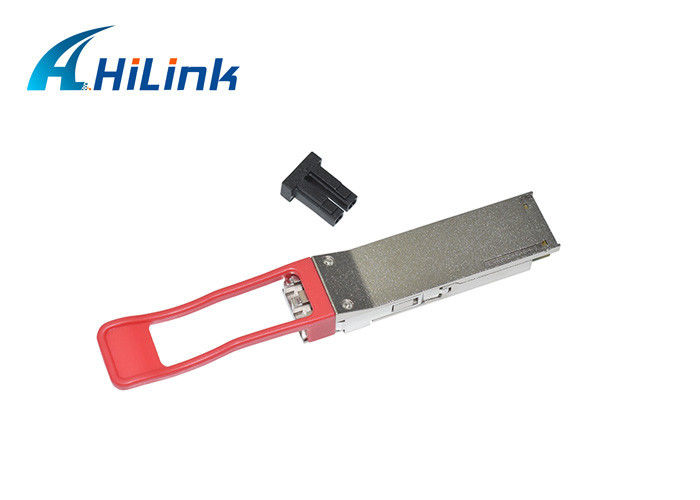

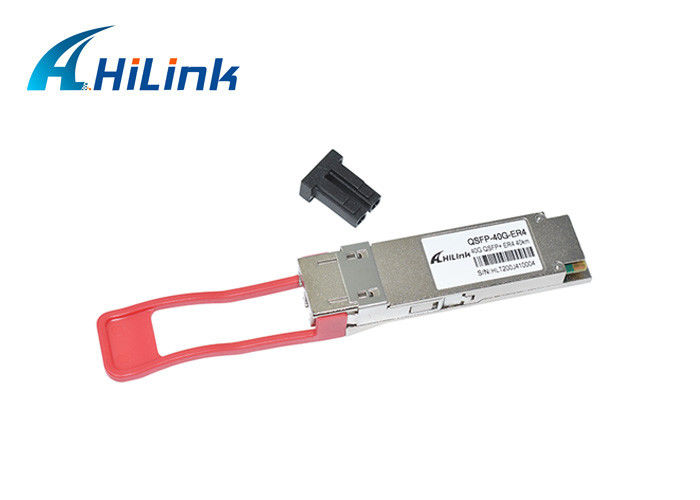

PRODUCT PICTURE SHOW



40G QSFP+ 40KM LC Optical Transceiver Module 1330nm Duplex LC 040G QSFP+ 40KM LC Optical Transceiver Module 1330nm Duplex LC 140G QSFP+ 40KM LC Optical Transceiver Module 1330nm Duplex LC 2



40G QSFP+ 40KM LC Optical Transceiver Module 1330nm Duplex LC 3





Our Service

Contact our sales for more details to confirm your order.
Short lead time after confirmation.

We deliver goods by international Express.

Quick response for customers' feedback and other questions.



Shipment & Payment

International Express: DHL, Fedex, UPS, EMS, UPS, TNT and etc.
Payment: T/T, Western Union, Paypal and so on.



Guarantee

Brand new.

OEM/ODM is available.
100% through quality test and aging test.
3 years warranty(From the date of shipment).



Technician support

          We support technical guide to solve malfunction or substitute components, and provide the project of related networking configuration.
After-sales service
We have after service for 24 hours, promises to supply technical service or guide in anytime.
Our co-workers will be response clients's requirement in 12 hours after emergency happened.


Packing Details: Static bag, Plastic PVC Pack, Retail box, Technical box, or customized.

40G QSFP+ 40KM LC Optical Transceiver Module 1330nm Duplex LC 4
