Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | HILINK |
Certification: | CE FCC Rohs |
Model Number: | HL-MPOF-MPOF |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1pcs |
Price: | Negotiation |
Packaging Details: | Plastic bag, Carton |
Payment Terms: | L/C, D/A, T/T, Western Union |
Supply Ability: | 1000/PCS/Month |
Detail Information |
|||
Name: | MPO/MTP Patch Cord Cbale | Connector: | MPO Female To MPO Female |
---|---|---|---|
Length: | 1-15m | Core: | 12 Cores |
Material: | LZSH/PVA | Oem: | Available |
High Light: | 12C Female MPO Patch Cord,LZSH PVA MPO Patch Cord,QSFP Device MPO Optical Cable |
Product Description
Specifications
MTP to MTP
MMF(50/125um), OM4, 8LC High fiber density (maximum 24 fibers for Multimode)
Insertion loss : <0.7 dB (<0.5dB Optional)
Return loss : >35dB
Operation temperature : -40°C~+80°C
Feature
Push -Pull locking type.
Ferrules are available for SM Standard,SM Low Loss;
MM Standard,MM Low Loss.
Cable are available for Jacket ribbon,Bare ribbon,
Round mini Cable.
Application
Telecom system
Cabling system
High Density optical laser
QSFP device
Product type
Code | Male(With pin),Female(Without pin) |
Ferrule | SM Standard,SM Low Loss;MM Standard,MM Low Loss. |
Ferrule HolesFerrule Holes | 4,8,12,24 |
Housing Color | Green(for SM), Beige(for MM),Yellow(for SM Low loss),Aqua( for OM3 50/125 ) |
Polishing | PC,APC |
Cable | Jacket ribbon,Bare ribbon,3.0mm Mini cable(250um 12F/24F), |

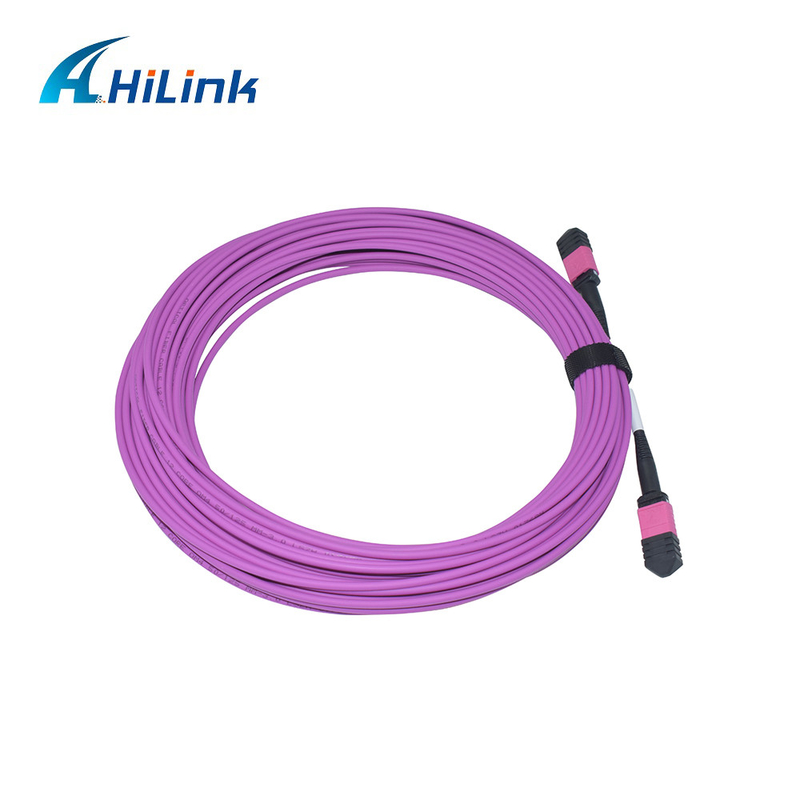

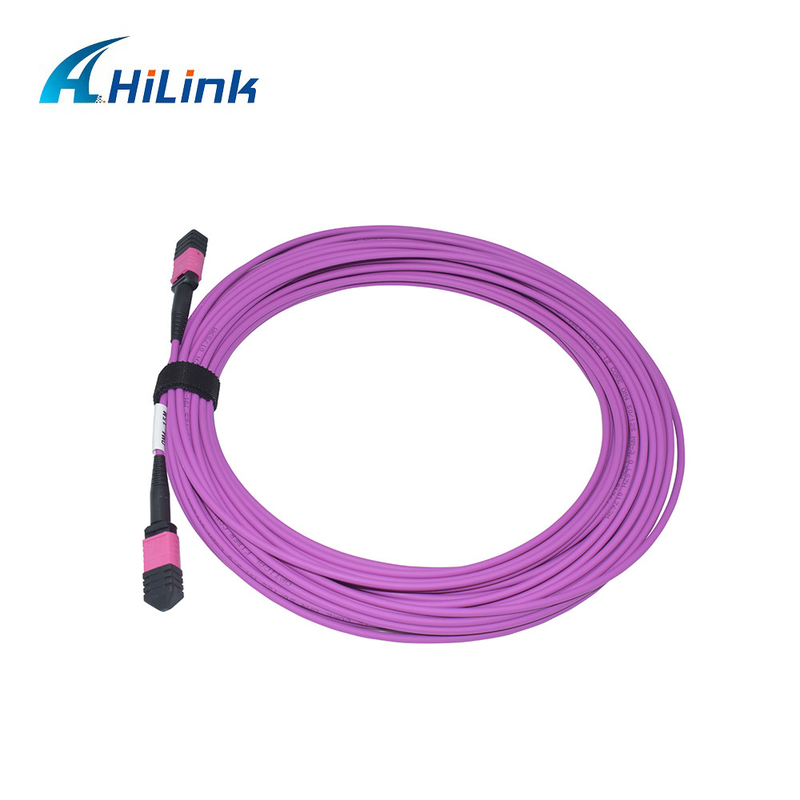

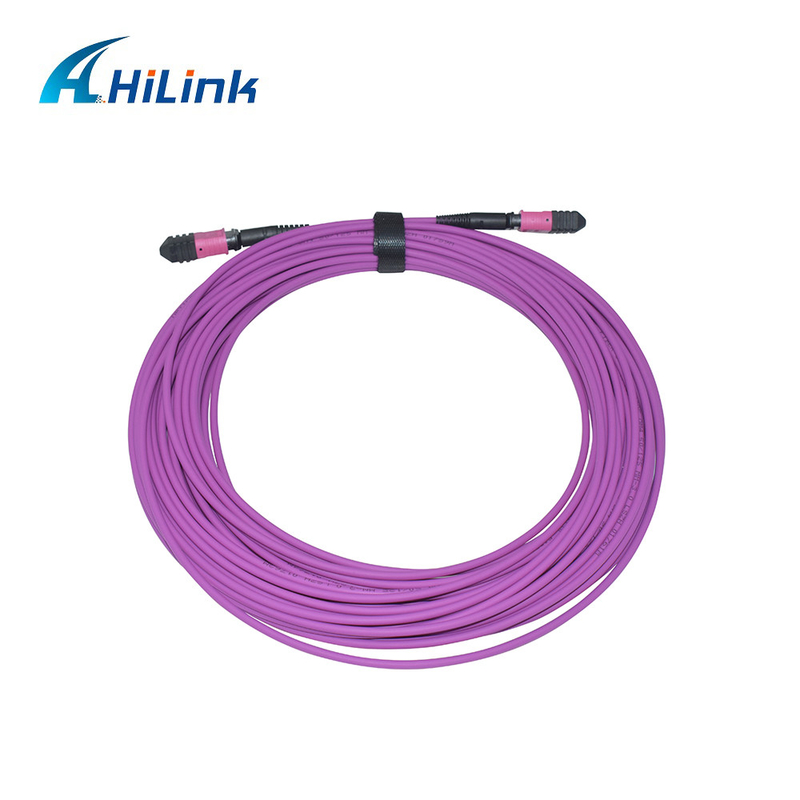

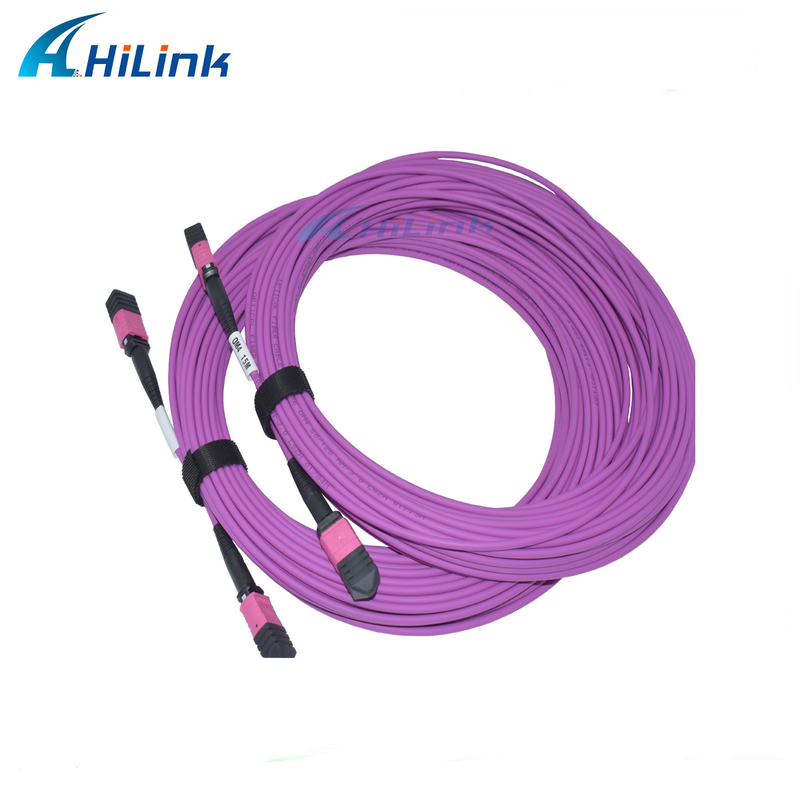

MPO picture show
