Name: MTP MPO MMF SFP Optical Transceiver DDM DOM QSFP+ 850nm 150m
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: HL-QSFP-40G-SR4-150
Price: 900.00 USD
Availability: InStock

Home > Products > QSFP+ Transceiver >

MTP MPO MMF SFP Optical Transceiver DDM DOM QSFP+ 850nm 150m

MPO MMF SFP Optical Transceiver

DDM DOM SFP Optical Transceiver

850nm Qsfp Optical Transceiver

Place of Origin:

Guangdong, China

Brand Name:

HILINK

Certification:

CE FCC Rohs

Model Number:

HL-QSFP-40G-SR4-150

Request A Quote

Product Details

Keyword:

40G SR4 150m 850nm

Data Rate:

40G

Fiber Type:

MMF

Distance:

150M

Wavelength:

850nm

Fiber Connector:

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Price

Negotiable

Packaging Details

Static bag, Plastic Flat, Retail box, by requires

Payment Terms

L/C, T/T, Western Union.Paypal

Supply Ability

100/PCS/MONTH

40G QSFP+ SWDM4 Optical Transceiver with 240m/350m Distance Duplex LC Connector and Built-in Digital Diagnostics

Get Best Price

40Gb/s 150m QSFP+ SR4 Transceiver Fiber Optic Module MPO Connector

Get Best Price

40Gb/s 100m QSFP+ Fiber Optic Module Bi-Di Duplex LC Hot Pluggable 850/900nm MMF

Get Best Price

40Gb/s 60km QSFP+ Transceiver Hot Pluggable Duplex LC Connector Single mode

Get Best Price

+86 17677464632

sales02@hilinktech.com

86-755-8317-6243

Contact Now

Product Description

40G-SR4-150M 40GBASE-SR4 QSFP+ 850nm 150m DDM DOM MTP MPO MMF SFP Transceiver

General:

HL-QSFP40G-SR4 is a Four-Channel, Pluggable, Parallel, Fiber-Optic QSFP+ Transceiver for InfiniBand QDR/DDR/SDR,12G/10G/8G/4G/2G fiber channel, PCIe and SAS Applications. The QSFP full-duplex optical module offers 4 independent transmit and receive channels, each capable of 11.3Gbps operation for an aggregate data rate of 45.2Gbps 150m using OM3 fiber. These modules are designed to operate over multimode fiber systems using 850nmVCSEL laser array. An optical fiber ribbon cable with an MPO/MTP connector can be plugged into the QSFP module receptacle. QSFP+ SR4 is one kind of parallel transceiver which provides increased port density and total system cost savings.

Features:

Four-channel full-duplex transceiver modules

Transmission data rate up to 11.3Gbit/s per channel

Up to 150m on OM3 Multimode Fiber (MMF)and 150m on OM4 MMF

Low power consumption <1.5W

Operating case temperature: 0 to 70℃

3.3V power supply voltage

Hot Pluggable QSFP form factor

MPO connector receptacle

Built-in digital diagnostic function

Applications:

Proprietary High Speed Interconnections

Infiniband QDR and DDR interconnects

Data Center

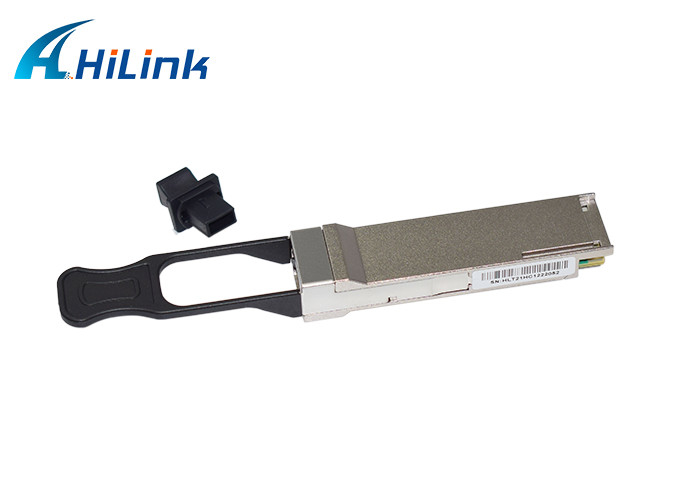

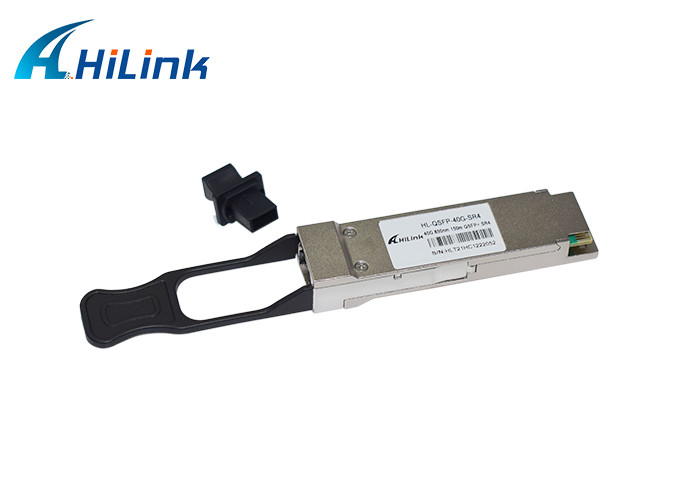

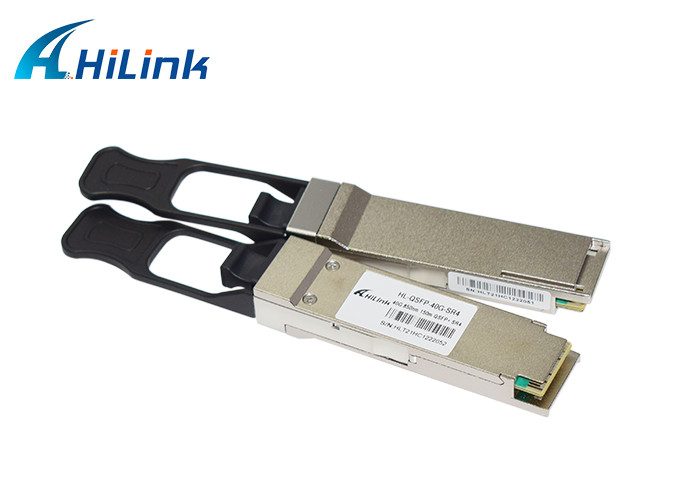

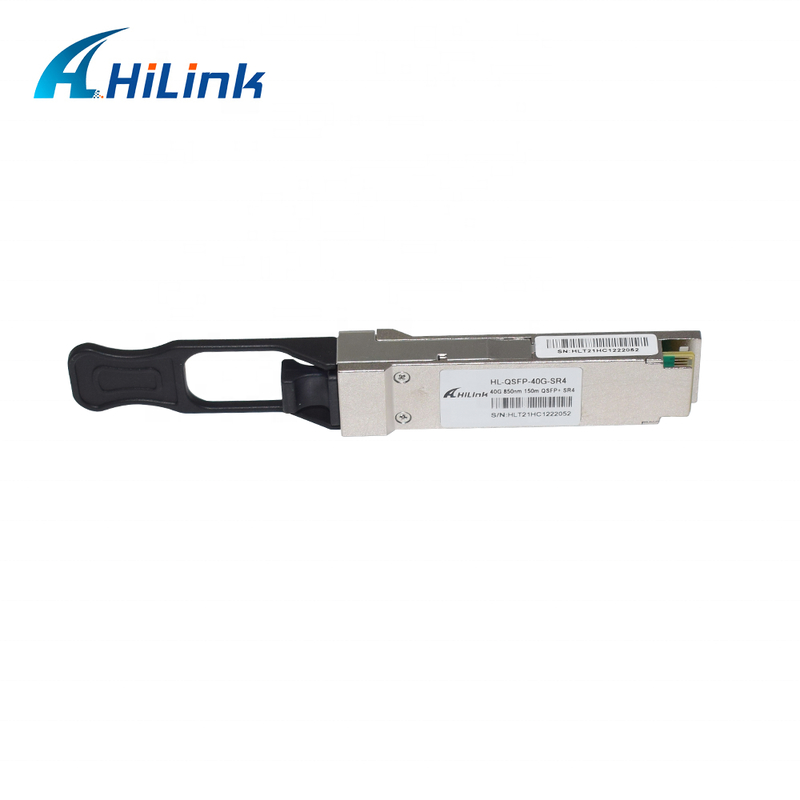

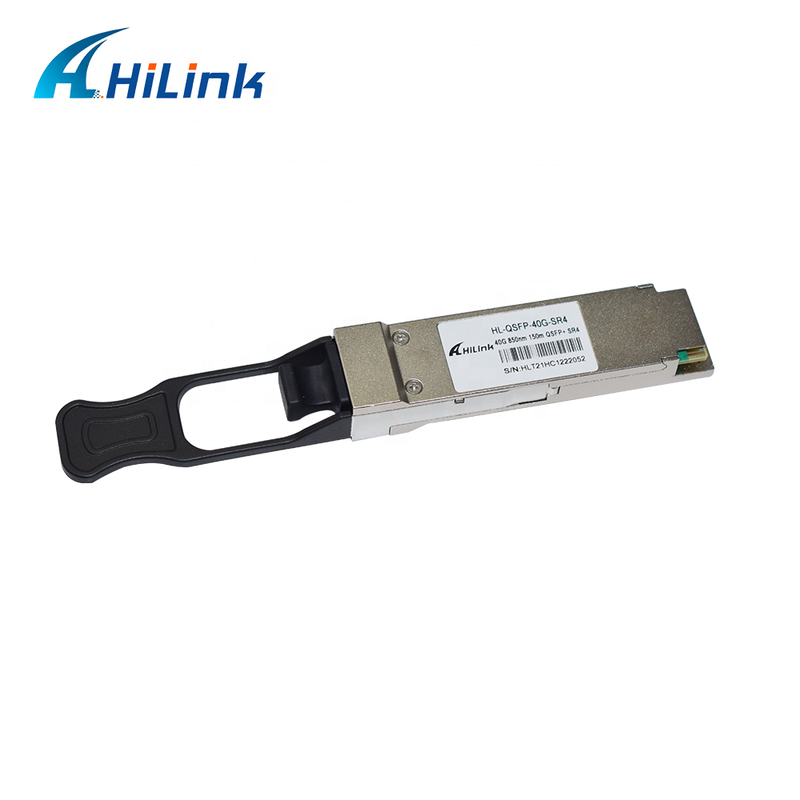

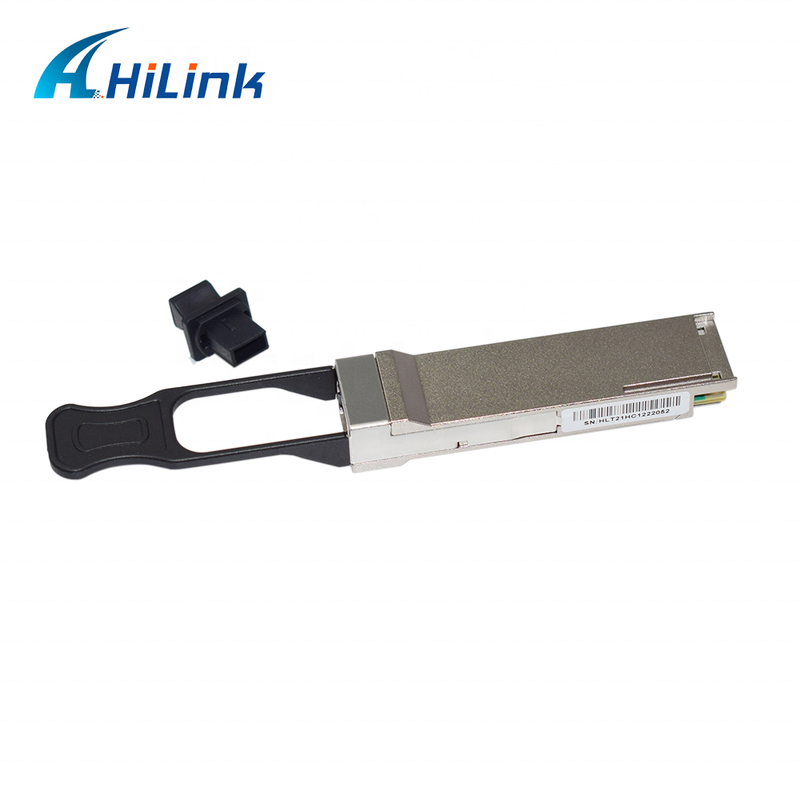

Product Picture Show:

Optical Interface Lanes and Assignment

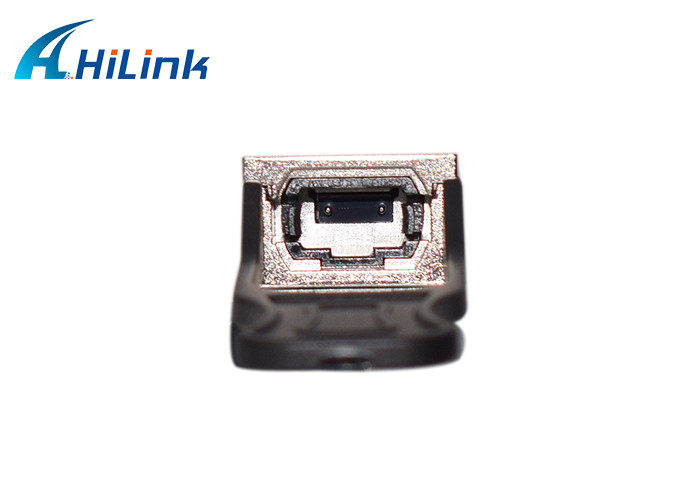

The optical interface port is a male MPO connector .The four fiber positions on the left as shown in Figure 2, with the key up, are used for the optical transmit signals (Channel 1 through4). The fiber positions on the right are used for the optical receive signals (Channel 4 through 1). The central four fibers are physically present.

MTP MPO MMF SFP Optical Transceiver DDM DOM QSFP+ 850nm 150m 4

Company Informations:

Shenzhen Hilink Technology Co., Ltd. which is specialized in manufacturing and marketing fiber optic products, was founded in 2007.

RoHS, ISO&CE cerificated, we are golden supplier which specializes in this field 10 years with superior quality, competitive price and good solution.

Our core competencies are fiber optics of CFP, QSFP28, QSFP SR4&LR4, CWDM SFP/XFP/X2, DWDM SFP/XFP/X2, solutions of DWDM, CWDM, WDM, MPO, AAWG, etc.

We have an independent Research&Development Department with 8 skillful engineers, with some advanced equipments and devices, such as switch and routers, for further detailed test and procedure.

We also have related optical products and good solutions to satisfy customers' requirements.

New and old customers are warmly welcomed to visit our fctory and office for further cooperation.

Hope to build up a business relation with you.

FAQ:

Q:Do you sell second-hand products?

A:No.All our products are brand new,we never use secont-hand components.

Q:What payment terms do you accept?

A:T/T,Paypal,Western Union are acceptable.

Q:What are the shipping ways can you offer?

A:Our usual shipping ways are DHL,FedEX,TNT,UPS,EMS etc.It will take 3-7days.

Q:Do your products come with warranty?

A:Yes,We provide 3 years warranty for all our products from the date of shipment.

Q:How to place an order?

A:1>Order details confirmed,please tell us the model and quantity you need.
2>Proforma Invoice confirmed, the order will be arranged upon receipt of your payment.
3>Confirm and ship the goods, then tracking number will be sent to you promptly.
4>We will help to track your goods until you receive them safely.

As we have various kinds of products,if you can't find the correct item you need,please send us inquiry.We will follow up shortly.
