PIN Receiver Optical Transceiver Module EML Transmitter 80KM DOM CS SMF

PIN Receiver Optical Transceiver Module EML Transmitter 80KM DOM CS SMF

PIN Receiver Optical Transceiver Module

Integrated SFEC Optical Transceiver Module

CS SMF CWDM Optical Transceiver

Place of Origin:

China

Brand Name:

HILINK

Certification:

CE FCC Rohs

Model Number:

HL-100G-DW-80

Contact Us
Request A Quote
Product Details
Package:
100G QSFP28
Distance:
80Km
Wavelength:
DWDM
Connector:
CS
TX:
Cooled EAM DFB-LD
Pout:
-1 ~ +4 DBm
Rx Sen.:
-12.5 DBm
Fiber Type:
SMF
Operating Temperature:
0~70℃
Warranty:
3 Years
Logo:
Can Be Customized
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
Static bag, Plastic Flat, Retail box, by requires
Payment Terms
L/C, T/T, Western Union.Paypal
Supply Ability
10000/PCS/MONTH
Product Description

100G-QSFP28-DWDM-ZR 80KM DOM CS SMF Optical Transceiver Module

(EML Transmitter + PIN Receiver)





PRODUCT FEATURES

1. Hot pluggable QSFP28 MSA form factor

2. Up to 80km reach for G.652 SMF with transport white box

3. Single +3.3V power supply

4. Transmitter: Cooled EML 2*27.5Gbaud/s DWDM TOSA

5. Receiver: 2*27.5Gbaud/s Pin-PD ROSA

6. 4*25G CAUI4 electrical interface

7. Integrated SFEC with high coding gain

8. PAM4 modulation format on 100GHz ITU DWDM wavelength grid compatible



Compatibale with main stream DC switch/routers



PIN Receiver Optical Transceiver Module EML Transmitter 80KM DOM CS SMF 0



QSFP SERIES



Part Number Product Description
HL-QSFP-40G-SR4 QSFP+,40Gb/s, 40GBASE-SR4, MMF, 850nm, 150M
HL-QSFP-40G-LR4 QSFP+, 40Gb/s, 40GBASE-LR4, SMF, 1310nm, 10KM
HL-QSFP-40G-ER4 QSFP+, 40Gb/s, 40GBASE-ER4, SMF, 1310nm, 40KM
HL-QSFP28-100G-SR4 QSFP+, 100Gb/s, 100GBASE-SR4, MMF, 850nm, 150M
HL-QSFP28-100G-LR4 QSFP+, 100Gb/s, 100GBASE-LR4, SMF, 1310nm, 10KM
HL-QSFP28-100G-ER4 QSFP+, 100Gb/s, 100GBASE-ER4, SMF, 1310nm, 40KM
HL-QSFP28-100G-ZR4 QSFP+, 100Gb/s, 100GBASE-ZR4, SMF, 1310nm, 80KM



PRODUCT PICTURE SHOW

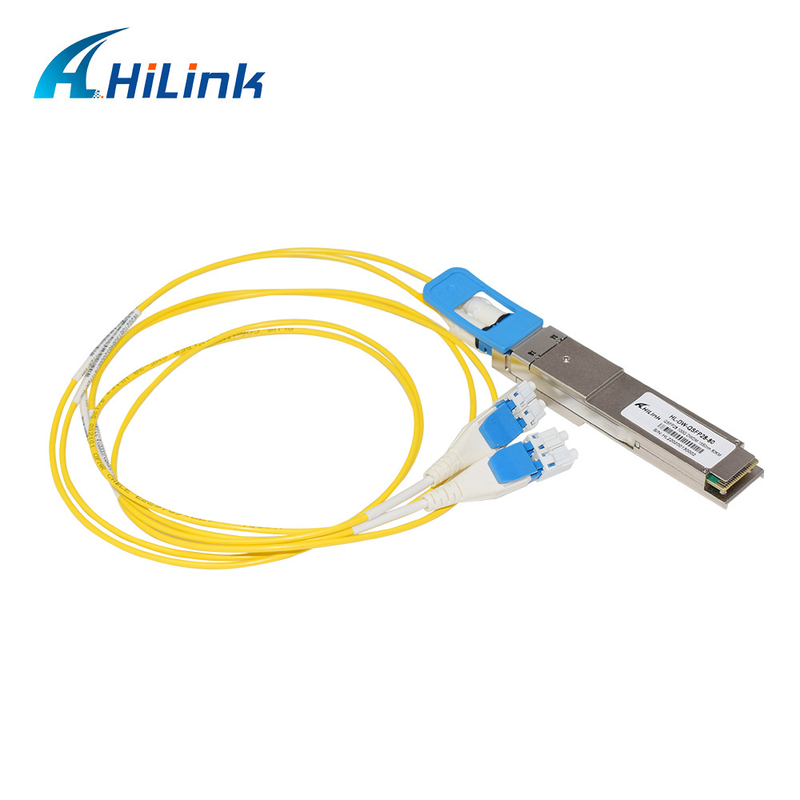

PIN Receiver Optical Transceiver Module EML Transmitter 80KM DOM CS SMF 1
