Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | HILINK |
| Certification: | CE FCC Rohs |
| Model Number: | HL-100G-DW-80 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1pcs |
| Price: | $1700~$1780/pieces |
| Packaging Details: | Static bag, Plastic Flat, Retail box, by requires |
| Payment Terms: | L/C, T/T, Western Union.Paypal |
| Supply Ability: | 10000/PCS/MONTH |
|
Detail Information |
|||
| Package: | 100G QSFP28 | Distance: | 80Km |
|---|---|---|---|
| Wavelength: | DWDM | Connector: | CS |
| TX: | Cooled EAM DFB-LD | Pout: | -1 ~ +4 DBm |
| Rx Sen.: | -12.5 DBm | Fiber Type: | SMF |
| Operating Temperature: | 0~70℃ | Warranty: | 3 Years |
| Logo: | Can Be Customized | ||
| High Light: | DOM CS QSFP Transceiver Module,DWDM TOSA QSFP Transceiver Module,PAM4 Duplex Transceiver Module |
||
Product Description
Compatible 100G DWDM QSFP28 PAM4 80km DOM CS SMF 80km CS Duplex Transceiver Module
PRODUCT FEATURES
1. Hot pluggable QSFP28 MSA form factor
2. Up to 80km reach for G.652 SMF with transport white box
3. Single +3.3V power supply
4. Transmitter: Cooled EML 2*27.5Gbaud/s DWDM TOSA
5. Receiver: 2*27.5Gbaud/s Pin-PD ROSA
6. 4*25G CAUI4 electrical interface
7. Integrated SFEC with high coding gain
8. PAM4 modulation format on 100GHz ITU DWDM wavelength grid compatible
Compatibale with main stream DC switch/routers
QSFP SERIES
| Part Number | Product Description | |
| HL-QSFP-40G-SR4 | QSFP+,40Gb/s, 40GBASE-SR4, MMF, 850nm, 150M | |
| HL-QSFP-40G-LR4 | QSFP+, 40Gb/s, 40GBASE-LR4, SMF, 1310nm, 10KM | |
| HL-QSFP-40G-ER4 | QSFP+, 40Gb/s, 40GBASE-ER4, SMF, 1310nm, 40KM | |
| HL-QSFP28-100G-SR4 | QSFP+, 100Gb/s, 100GBASE-SR4, MMF, 850nm, 150M | |
| HL-QSFP28-100G-LR4 | QSFP+, 100Gb/s, 100GBASE-LR4, SMF, 1310nm, 10KM | |
| HL-QSFP28-100G-ER4 | QSFP+, 100Gb/s, 100GBASE-ER4, SMF, 1310nm, 40KM | |
| HL-QSFP28-100G-ZR4 | QSFP+, 100Gb/s, 100GBASE-ZR4, SMF, 1310nm, 80KM | |

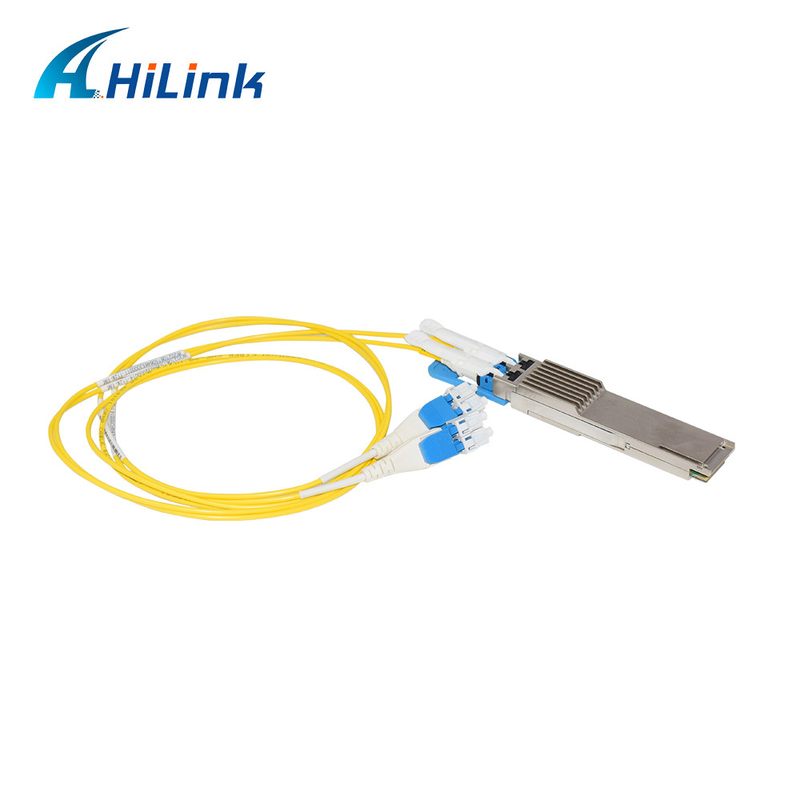

PRODUCT PICTURE SHOW
