1CH Dual Fiber Optical Module DWDM OADM With SC/APC Interface

1CH Dual Fiber Optical Module DWDM OADM With SC/APC Interface

1CH Dual Fiber Optical Module

DWDM OADM Dual Fiber Optical Module

SC/APC Interface Fiber Module

Place of Origin:

Guangdong, China

Brand Name:

HILINK

Certification:

CE FCC Rohs

Model Number:

HL-DWDM OADM

Contact Us
Request A Quote
Product Details
Product Name:
OADM Left+Right CH41SC/APC
Fiber Type:
Dual Fiber
Fiber Length:
50cm
Channel:
CH41
Optical Interface:
SC/APC
Package:
ABS Box
Certification:
CE,Rohs
OEM:
Support
Package Dimension:
100*80*10CM
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
Normal package
Delivery Time
5-8 Working days
Payment Terms
L/C, T/T, Western Union
Supply Ability
3000PCC/MONTH
Product Description

1CH Dual Fiber Optical DWDM OADM Left+ Right OADM CH41 SC/APC ABS With SC UPC



Products Description

DWDM Optical Add/Drop multiplexer (OADM) is a passive optical device used in WDM networks for adding and dropping one/multiple 100 GHz DWDM channels in the C-band into one or two fibers, while letting the rest of the wavelengths bypass to the needed destination. Using the DWDM technology can add effctively WDM capability to their existing and new networks, and extend the optical signals transmission distance.

DWDM OADM modules are available in single-sided (East or West) and dual-sided (East and West) configurations. With matching MUX/DeMUX units placed at each end of an optical link, multiple data channels can be combined and transmitted over a single-mode fiber trunk. The passive OADM modules can add or drop up to 4 data channels at any point along the trunk.

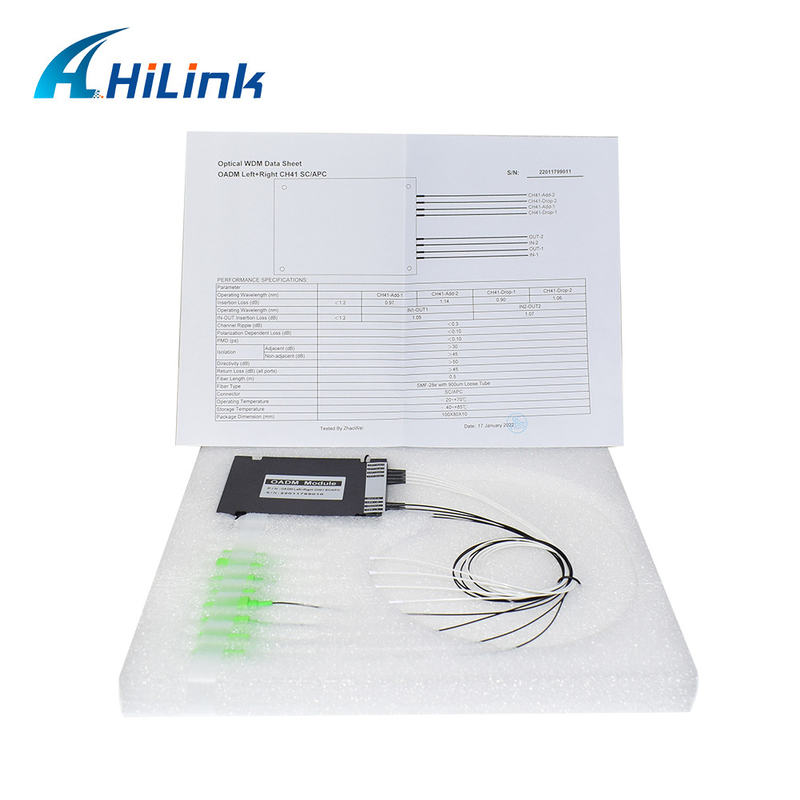

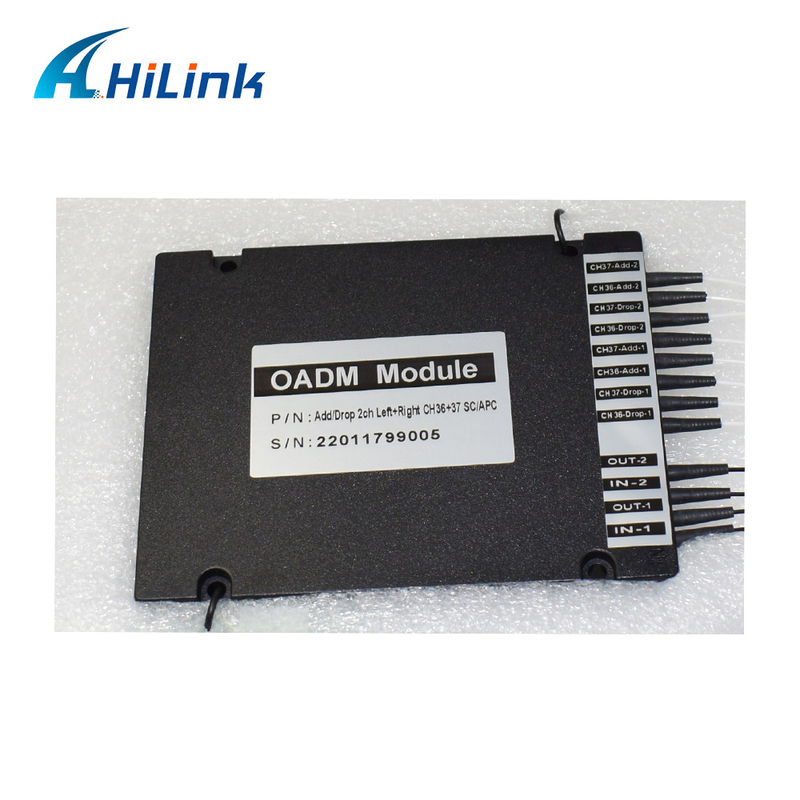

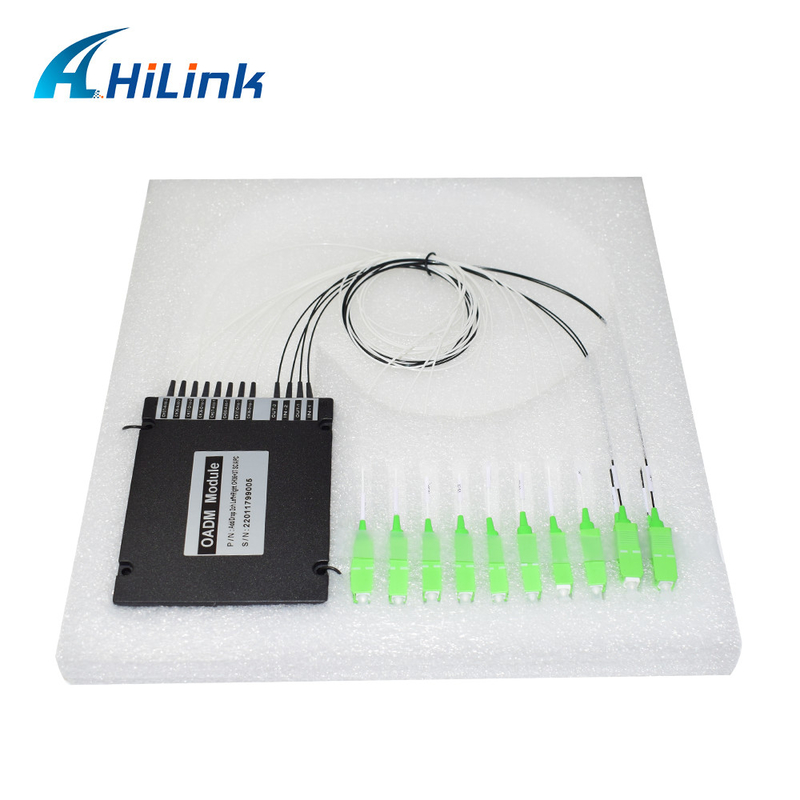

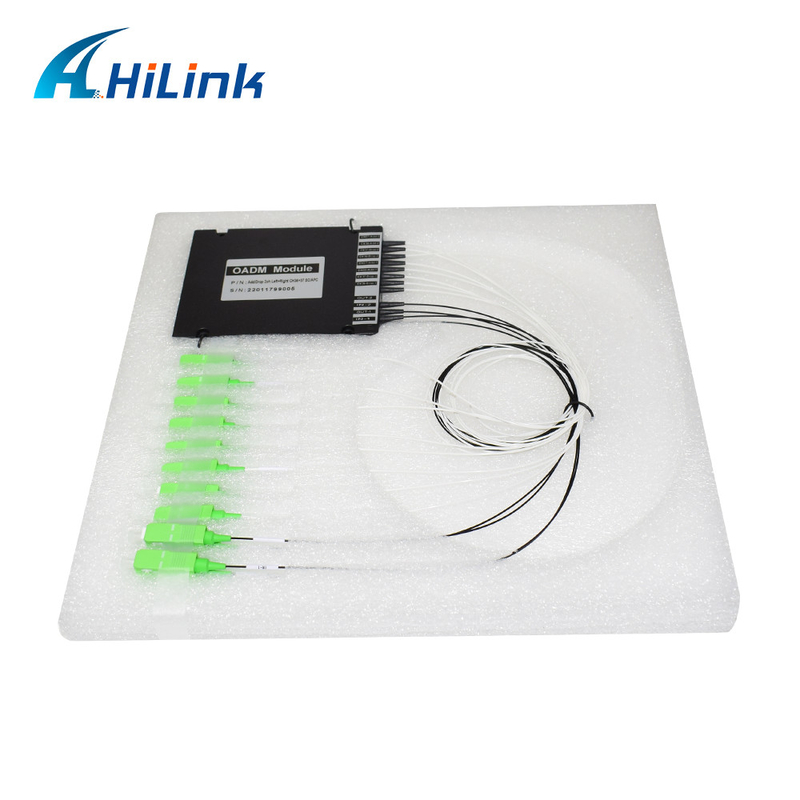

Photo show:

1CH Dual Fiber Optical Module DWDM OADM With SC/APC Interface 0

1CH Dual Fiber Optical Module DWDM OADM With SC/APC Interface 11CH Dual Fiber Optical Module DWDM OADM With SC/APC Interface 21CH Dual Fiber Optical Module DWDM OADM With SC/APC Interface 3
