80KM SFP+ To SFP+ 10G OEO Converter With 3R Repeater Function

Product Details:
Place of Origin: China
Brand Name: HILINK
Certification: CE FCC Rohs
Model Number: HD-10G-OEO
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Carton box, Retail box, Or by required
Delivery Time: 1-6 days
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 3000 pcs per Week
  • Detail Information
  • Product Description

Detail Information

Equipment Function: 3R Repeater Transmission Speed: 8.5Gb/s-11.7Gb/s
Interface Type: SFP+ To SFP+/XFP To XFP Distance: 80KM
Warranty: 1 Years Operating Temperature: 0~+50℃
High Light:

SFP+ To SFP+ 10G OEO Converter

,

OEO Converter With 3R Repeater Function

,

80KM Fiber Media Converter

Product Description

10G SFP+ to SFP+ Fiber to Fiber Converter 10G OEO Converter(3R) Media Converter


        10G SFP+ to SFP+ fiber to fiber converter is a fiber-to-fiber type 10Gbps device that acts not only as fiber optic media converter or as a fiber optic repeater for long-haul transmission, but is an all in one solution to get 10GE fiber network to be Re-Amplificated, Re-Shaped and Re-Timed. 3R Repeater / Extender / Media converter for all your 10G fiber network mode & wavelength conversion needs.


Features:

Supports connections up to 10Gbit/s data rate

Transmission distances from 550m to 80km

Available with internal or external power supply

3R Repeater

Support ITUT prescribed DWDM/CWDM wavelength

Support hot plugging

Support 2U Rack (16 channel) and standalone use

Full State Led display




Applications:



80KM SFP+ To SFP+ 10G OEO Converter With 3R Repeater Function 0



Specification:

Performance Data Technical Indexes
Equipment function 3R Repeater
Transmission Speed 8.5Gb/s-11.7Gb/s
Protocols

8.5G Fiber Channel

SONET OC-192, SDH STM-64 (9.95Gbps)

10G WAN (10Gbps)

10G LAN (10.31Gbps)

OTN OTU-2 (G.709) (10.70Gbps)

10G LAN with 255/237 FEC coding (11.09Gbps)

10G Fiber Channel (11.32Gbps)

10G POS

Interface Type SFP+ to SFP+/XFP to XFP
Transmission Distance SFP+ module: up to 80km

Maximum Packet

Forwarding Rate

14,880,950/S
power requirement

Rack-mountable : AC 85 ~ 220V OR DC -48V

Standalone: AC 110~220V OR -48V OR 5V 2A

Power consumption: ≤4W

Work Environment

Operating Temp: 0~ 50 ℃

Storage Temp: -10~ 70 ℃

Humidity: 5%~90% ( non-condensing )

Dimension 30×100×140mm(external power)

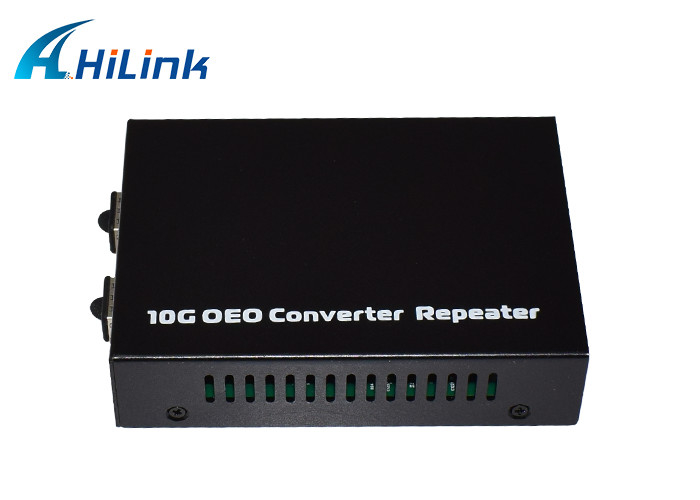

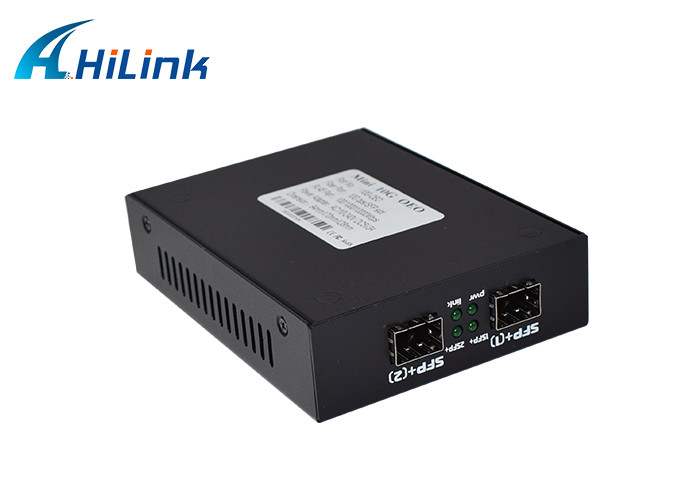

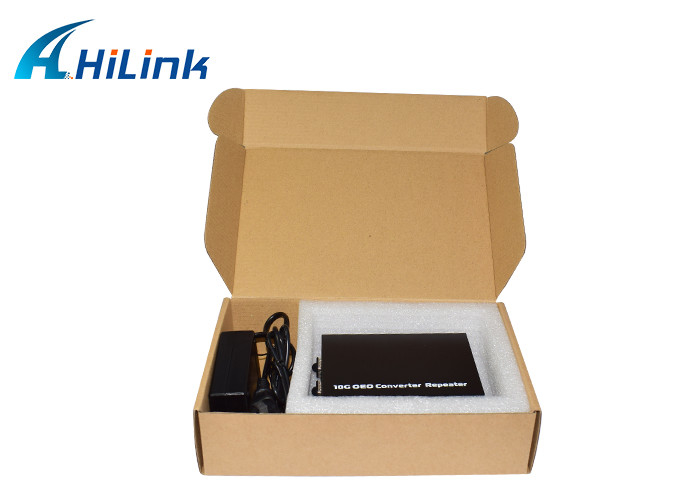

Product Show:

80KM SFP+ To SFP+ 10G OEO Converter With 3R Repeater Function 180KM SFP+ To SFP+ 10G OEO Converter With 3R Repeater Function 280KM SFP+ To SFP+ 10G OEO Converter With 3R Repeater Function 380KM SFP+ To SFP+ 10G OEO Converter With 3R Repeater Function 4



Other Product


80KM SFP+ To SFP+ 10G OEO Converter With 3R Repeater Function 5



Company Information

Shenzhen Haili Link Technology Co,. Ltd. was founded in 2007 and specialized in manufacturing, marketing and service of networking optical products. We supply DWDM CWDM SFP, XFP, QSFP optical fiber transceivers , with DWDM CWDM WDM optic solutions supply.
We are committed to providing high-quality stable networking products and optical components and integrated solutions to create valuable profit for business partners.
