40GBASE WDM BIDI 850nm 100M Duplex LC Connector QSFP-40G-SR-BD
PRODUCT DESCRIPTIONS
The transceiver internally multiplexes an XLPPI 4x25G interface into two 50Gb/s electrical channels, transmitting and receiving each optically over one simplex LC fiber using bi-directional optics. This results in an aggregate bandwidth of 100Gbps into a duplex LC cable. This allows reuse of the installed LC duplex cabling infrastructure for 100GbE application. Link distances up to 70 m using OM3 and 100m using OM4 optical fiber are supported. These modules are de- signed to operate over multimode fiber systems using a nominal wavelength of 850nm on one end and 900nm on the other end. The electrical interface uses a 38 contact QSFP28 type edge connector. The optical interface uses a conventional LC duplex connector.
PRODUCT FEATURES
Compliant to the 100GbE XLPPI electrical specification per IEEE 802.3bm
Compliant to QSFP28 SFF-8636 Specification
Aggregate bandwidth of > 100Gbps
Dual wavelength VCSEL bi-directional optical interface, PAM4 2 × 50-Gb/s 850 nm/900 nm
QSFP28 MSA compliant
Capable of over 70m transmission on OM3 Multimode Fiber (MMF)and 100m on OM4 MMF
Single +3.3V power supply operating
Without digital diagnostic functions
Temperature range 0°C to 70°C
RoHS Compliant Part
Utilizes a standard LC duplex fiber cable allowing reuse of existing cable infrastructure
Support 40G/100Gbps
APPLICATIONS
100 Gigabit Ethernet interconnects
Datacom/Telecom switch & router connections
Data aggregation and backplane applications
Proprietary protocol and density applications
QSFP SERIES
| Part Number |
Product Description |
| HL-QSFP-40G-SR4 |
QSFP+,40Gb/s, 40GBASE-SR4, MMF, 850nm, 150M |
| HL-QSFP-40G-LR4 |
QSFP+, 40Gb/s, 40GBASE-LR4, SMF, 1310nm, 10KM |
| HL-QSFP-40G-ER4 |
QSFP+, 40Gb/s, 40GBASE-ER4, SMF, 1310nm, 40KM |
| HL-QSFP28-100G-SR4 |
QSFP+, 100Gb/s, 100GBASE-SR4, MMF, 850nm, 150M |
| HL-QSFP28-100G-LR4 |
QSFP+, 100Gb/s, 100GBASE-LR4, SMF, 1310nm, 10KM |
| HL-QSFP28-100G-ER4 |
QSFP+, 100Gb/s, 100GBASE-ER4, SMF, 1310nm, 40KM |
|
| HL-QSFP28-100G-ZR4 |
QSFP+, 100Gb/s, 100GBASE-ZR4, SMF, 1310nm, 80KM |

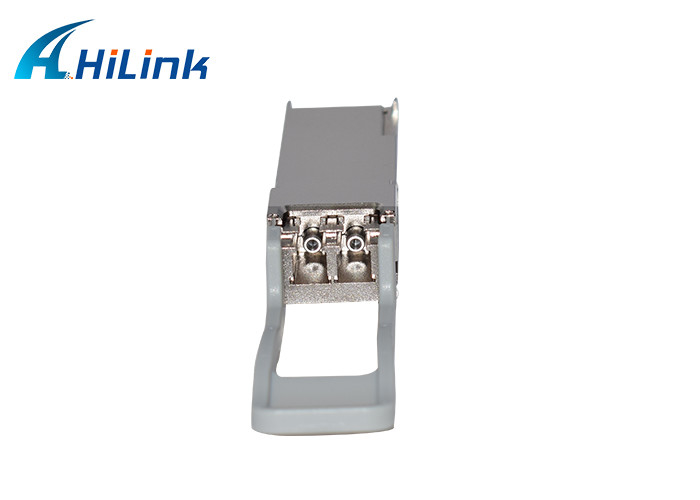

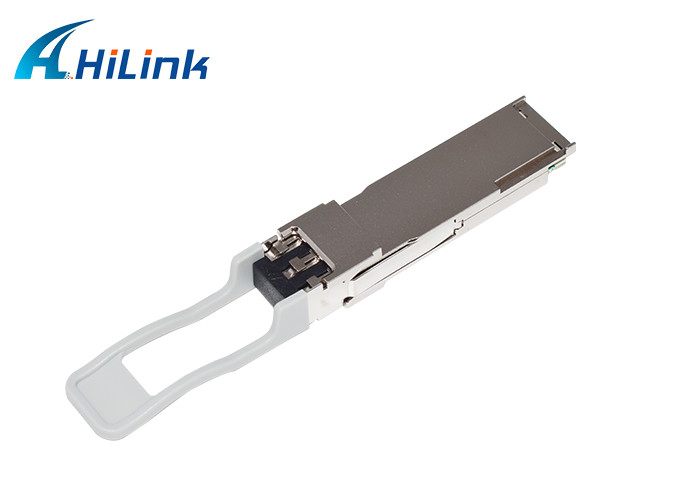

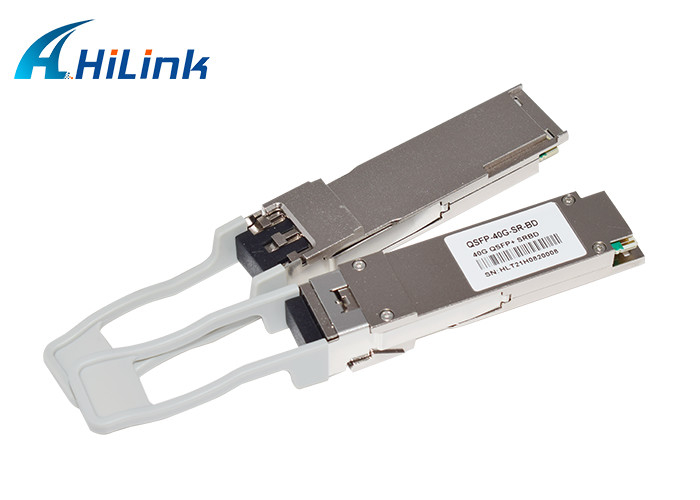

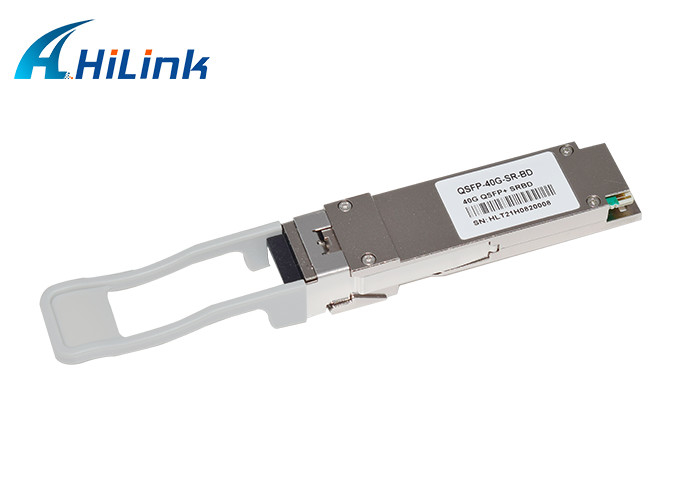

PRODUCT PICTURE SHOW
TRANSCEIVER BLOCK DIAGRAM
