Hot Pluggable Fiber Optic Transceiver 200G QSFP56 SR4 100m 850nm Four Parallel Lanes

Product Details:
Place of Origin: China
Brand Name: HILINK
Certification: CE FCC Rohs
Model Number: HL-QSFP56-200GB-SR4
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Static bag, Plastic bag, Retail box
Delivery Time: 2-7 working days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 10pcs/Week
  • Detail Information
  • Product Description

Detail Information

Product Name: QSFP56-200GB-SR4 Application: 200Gbase
Wavelength: 850nm Distance: 100M
DDM/DOM: Yes
High Light:

hot pluggable Fiber Optic Transceiver

,

MPO12 connector Fiber Optic Transceiver

,

four parallel lanes Multimode Fiber Transceiver

Product Description

200G QSFP56 SR4 100m 850nm Fiber Optic Products Optica Module 200 Gbps Transceiver for 5G Data Center



DESCRIPTIONS

200G QSFP56 SR4 is a 4×50Gbps multi mode fiber, hot pluggable optical transceiver. The module integrates four parallel lanes with baud rate at 26.5625GBd each lane. It can transmit up to 70 m on fiber OM3 fiber or 100 m on OM4 fiber with FEC.



PRODUCT FEATURES

Compliant with IEEE Std 802.3bs, IEEE Std 802.3cm
Compliant with 200G-SR4 opticalspecifications
Compliant with SFF-8679
Compliant with CMIS4.0 Management interface
specifications
4x53.125Gb/s electrical interface (200GAUI-4)
Reach up to 70m on MMF(OM3)
Reach up to 100m on MMF(OM4)
Single +3.3V power supply
Case temperature range: 0 ~ +70
Maximum power consumption 5W
Single MPO12 connector
RoHS complaint

APPLICATIONS



  • 200GBASE-SR4 Ethernet links
    Data centers




QSFP SERIES :



QSFP Nominal Wavelength (nm) Cable Type Core Size (Microns) Modal Bandwidth (MHz*km)*3 Cable Distance*1 Power Consumption (W) Pull Tab Color
QSFP-100G-SR4-S 850 MMF

50.0

50.0

2000 (OM3)

4700 (OM4)

70m

100m

3.5 Beige
QSFP-100G-LR4-S 1295, 1300, 1304, 1309 SMF G.652 - 10km 3.5 Blue
QSFP-100G-CWDM4-S 1271, 1291, 1311, 1331 SMF G.652 - 2km 3.5 Green
QSFP-100G-PSM4-S 1310 SMF G.652 - 500m 3.5 Orange
QSFP-100G-SM-SR 1271, 1291, 1311, 1331 SMF G.652 - 2km 3.5 Green

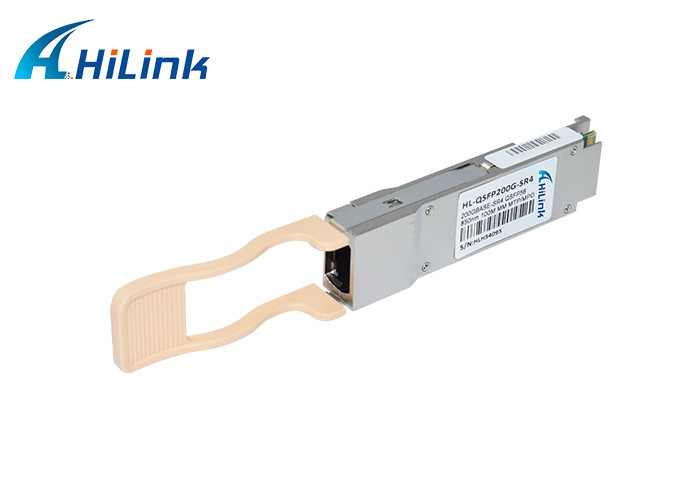

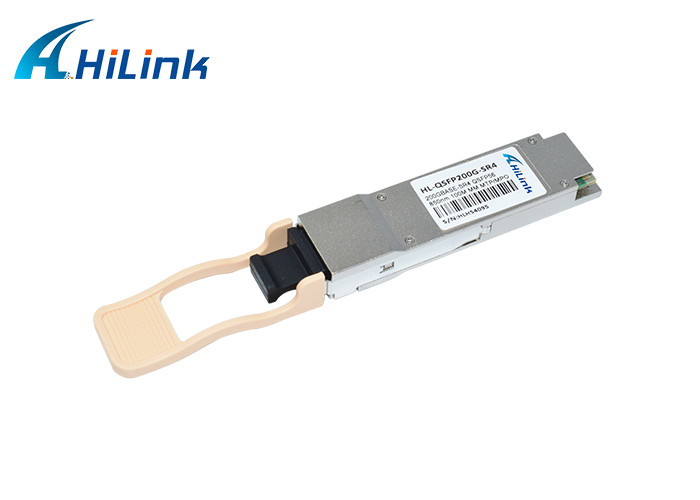

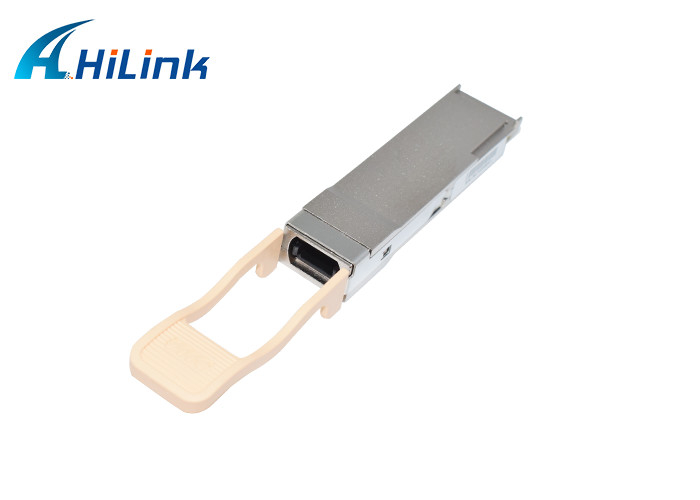

Hot Pluggable Fiber Optic Transceiver 200G QSFP56 SR4 100m 850nm Four Parallel Lanes 0Hot Pluggable Fiber Optic Transceiver 200G QSFP56 SR4 100m 850nm Four Parallel Lanes 1Hot Pluggable Fiber Optic Transceiver 200G QSFP56 SR4 100m 850nm Four Parallel Lanes 2
