Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | HILINK |
| Certification: | CE FCC Rohs |
| Model Number: | HL- 400G - DD - SR8 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | Static bag, Plastic bag, Retail box |
| Delivery Time: | 2-7 working days |
| Payment Terms: | T/T, Western Union,Paypal |
| Supply Ability: | 10pcs/Week |
|
Detail Information |
|||
| Product Name: | 400G QSFP DD SR8 | Application: | 400Gbase |
|---|---|---|---|
| Wavelength: | 850nm | Distance: | 100M |
| DDM/DOM: | Yes | ||
| High Light: | MPO MTP Optical Transceiver Module,SMF MPO Optical Transceiver Module,QSFPDD SR8 Fiber Optical Transceiver |
||
Product Description

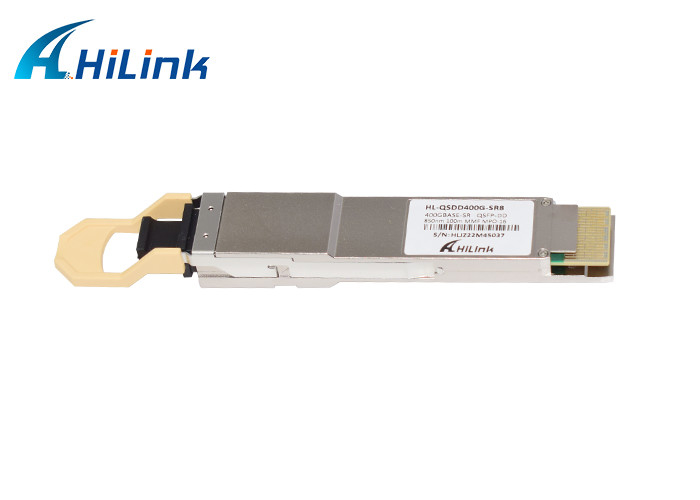

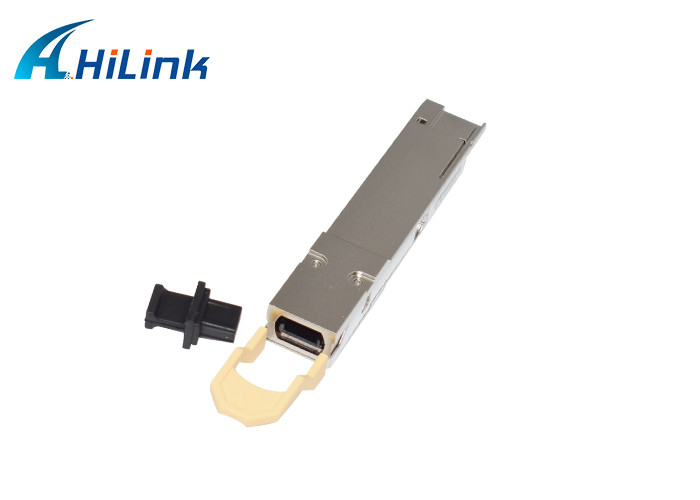

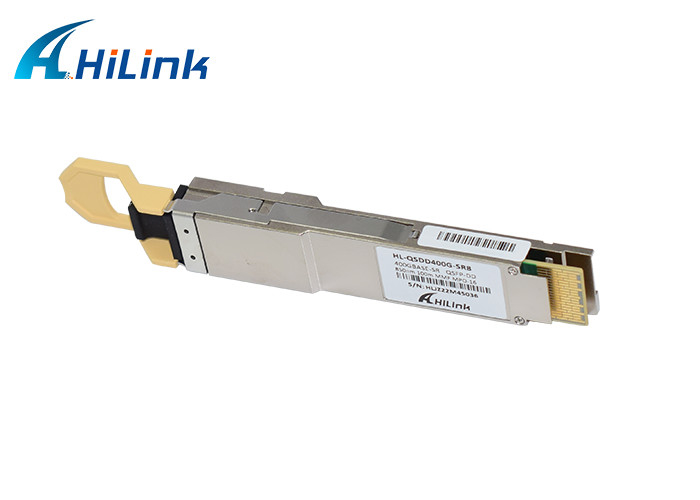

400G-QSFP-DD SR8 400Gb/s QSFPDD-400GB-SR8 850nm 100m SMF MPO MTP Optical Transceiver
400G QSFP-DD SR8 is a 8×50Gbps multi mode fiber, hot pluggable optical transceiver. The module integrates four parallel lanes with baud rate at 26.5625GBd each lane. It can transmit up to 70 m on fiber OM3 fiber or 100 m on OM4 fiber with FEC.
QSFP SERIES :
| QSFP | Nominal Wavelength (nm) | Cable Type | Core Size (Microns) | Modal Bandwidth (MHz*km)*3 | Cable Distance*1 | Power Consumption (W) | Pull Tab Color |
| QSFP-100G-SR4-S | 850 | MMF |
50.0 50.0 |
2000 (OM3) 4700 (OM4) |
70m 100m |
3.5 | Beige |
| QSFP-100G-LR4-S | 1295, 1300, 1304, 1309 | SMF | G.652 | - | 10km | 3.5 | Blue |
| QSFP-100G-CWDM4-S | 1271, 1291, 1311, 1331 | SMF | G.652 | - | 2km | 3.5 | Green |
| QSFP-100G-PSM4-S | 1310 | SMF | G.652 | - | 500m | 3.5 | Orange |
| QSFP-100G-SM-SR | 1271, 1291, 1311, 1331 | SMF | G.652 | - | 2km | 3.5 | Green |
