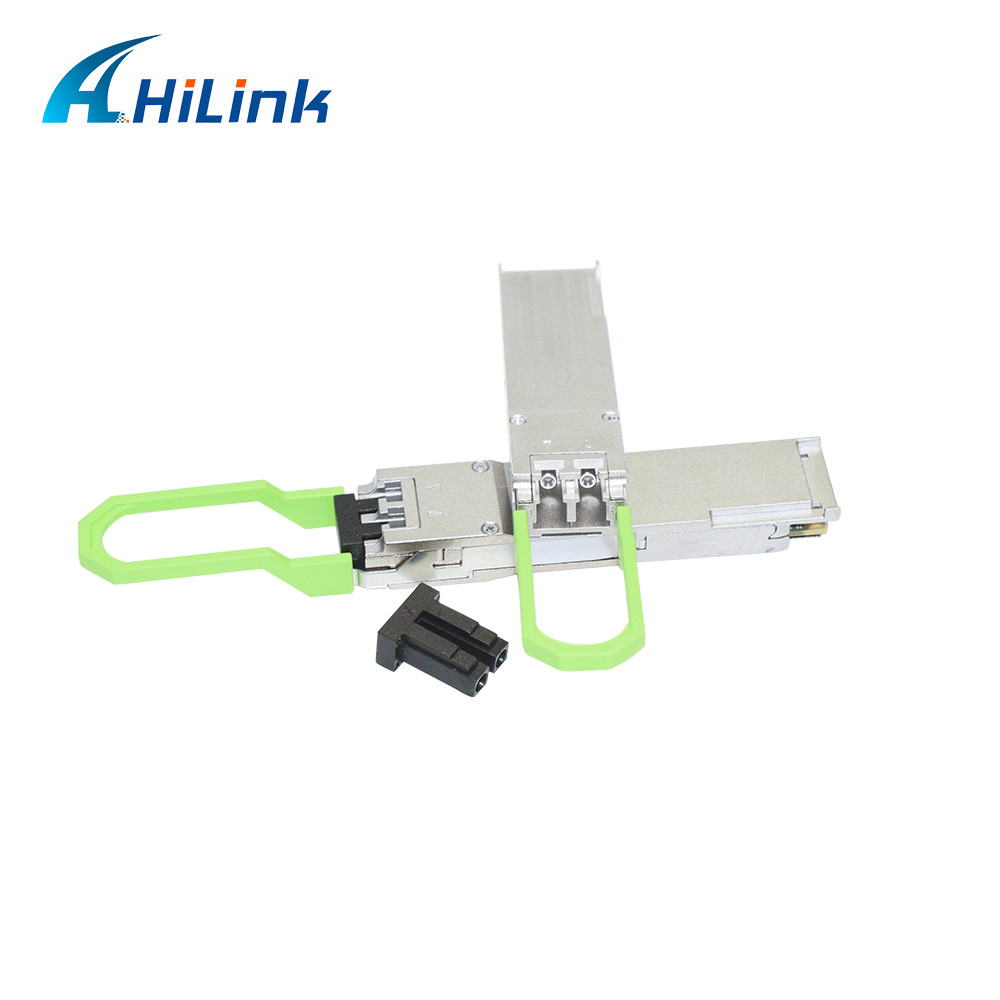

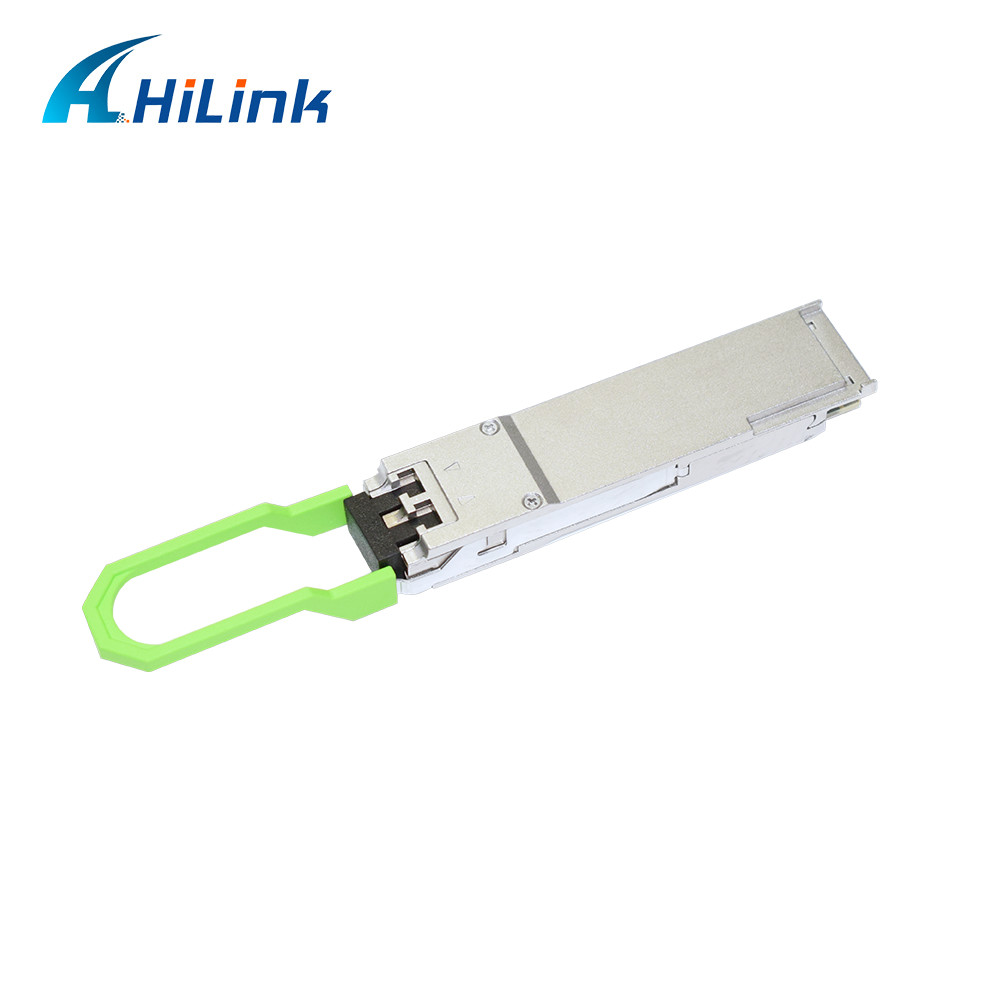

Hilink 200G QSFP56 FR4 QSFP Transceiver Module 2km 1310nm CWDM4 DOM Duplex LC SMF

Hilink 200G QSFP56 FR4 QSFP Transceiver Module 2km 1310nm CWDM4 DOM Duplex LC SMF

Product Details:

Place of Origin: China
Brand Name: HILINK
Certification: CE FCC Rohs
Model Number: HL-Q200G-FR4

Payment & Shipping Terms:

Minimum Order Quantity: 2pcs
Price: Negotiable
Packaging Details: Static bag, Plastic Flat, Retail box, by requires
Delivery Time: 2~4 working days
Payment Terms: L/C, T/T, Western Union.Paypal
Supply Ability: 100/PCS/MONTH
Get Best Price Contact Now

Detail Information

Data Rate: 200Gb/s(4x50Gbps) Distance: 2KM
Wavelength: 1271nm/1291nm/1311nm/1331nm Fiber Connector: Dual LC
Form Factor: QSFP56 Warranty: 3 Years
High Light:

2km QSFP Transceiver Module

,

CWDM4 DOM QSFP Transceiver Module

,

Duplex LC SMF QSFP Optics Module

Product Description

Hilink 200G QSFP56 FR4 2km 1310nm CWDM4 DOM Duplex LC SMF



200G QSFP56 FR4 2km



Hilink QSFP-200G-FR4 Compatible QSFP56 Transceiver Module is designed for 200GBASE Ethernet throughput up to 2km over single-mode fiber (SMF) using a wavelength of 1295nm to 1309nm with duplex LC connectors.
This transceiver is compliant with IEEE 802.3cd, IEEE 802.3bs, QSFP56 MSA, SFF-8665, SFF-8024, and SFF-8679 standards. The built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters. It is suitable for 200G Ethernet, Data Center, and Cloud Networks.



Features

The optical connectivity is based on two Singlemode Fiber (SMF) LC connectors, one for Tx and one for Rx. The Tx and Rx each consist of 4 50Gbps Coarse Wavelength Division Multiplex(CWDM) channels, whose wavelengths are in the 1310nm range. The 200G QSFP56 FR4 transceiver is designed for applications with a reach up to 2km and with the use of FEC.

Applications
  • 200G BASE-FR4 Ethernet
  •
  • Item

    Description

    Transceiver form factor QSFP56
    Transmission speed 200GE
    Center wavelength (nm) 1271nm, 1291nm, 1311nm ,1331nm
    Standards compliance  compatible with the 200GBASE-ER4
    Connector type LC Dual
    Applicable cable and maximum transmission distance
    reach up to
    2km and with the use of FEC
    Transmit power (dBm)
    Maximum receiver sensitivity (dBm) < -8.2dBm
    Overload power (dBm) 4.7dBm
    Extinction ratio (dB) 3.5dBm
    Operating temperature 0°C to 70°C (32°F to 158°F)
    Part number HL-Q200G-FR4
Hilink 200G QSFP56 FR4 QSFP Transceiver Module 2km 1310nm CWDM4 DOM Duplex LC SMF 0
Hilink 200G QSFP56 FR4 QSFP Transceiver Module 2km 1310nm CWDM4 DOM Duplex LC SMF 1
Hilink 200G QSFP56 FR4 QSFP Transceiver Module 2km 1310nm CWDM4 DOM Duplex LC SMF 2
Hilink 200G QSFP56 FR4 QSFP Transceiver Module 2km 1310nm CWDM4 DOM Duplex LC SMF 3
If you have any questions, please click "Contact Now" and send your questions, we will have a professional to provide answers. Thank you!


Part Number Data Rate Distance Wavelength Output Power Sensitivity Remark
HQ28-SR-M85-X1D 100Gbps MM 100m
(OM4)
850nm -8.4 ~ +2.4dBm -10.3dBm QSFP28-100G-SR4
HQ28-LR-L13-10D 100Gbps SM 10km 1310nm -4.3 ~ +4.5dBm -10.6dBm QSFP28-100G-LR4
HQ28-LR-L13-10C1 100Gbps SM 10km 1310nm -4.3 ~ +4.5dBm -10.6dBm QSFP28 100G-LR4-Ethernet
HQ28-ER-L13-40D 100Gbps SM 40km 1310nm -2.9 ~ +4.5dBm -16.9dBm QSFP28 100G-ER4
HQ28-K7-L13-xxx 100Gbps SM 2km 1310nm -6.5 ~ +2.5dBm -11.5dBm QSFP28 100G-CWDM4






The 25g~100G Series

25G SFP28 SR4 25Gbps 850nm SFP28 transceiver 100M
QSFP-40G-SR4 QSFP-SR4, MMF, 850nm, 150M, MPO
QSFP-40G-CSR4 QSFP+, MMF, 850nm, 300M (OM3) - MPO
QSFP-40G-LR4 QSFP-LR4, SMF, 1270nm~1330nm,15KM LC
QSFP-40G-PSM-IR4 QSFP+-IR4,SMF ,1310NM 2KM MPO
40G QSFP+ PSM 10KM QSFP+-LR4,SMF ,1310NM 10KM MPO
100G QSFP28 SR4 100GBASE-SR4 QSFP28
QSFP28 CWDM4 2KM 100G QSFP28 CWDM4 2KM 1271~1331
QSFP28 CWDM4 500M 100G QSFP28 CWDM4 500 1271~1331
QSFP28 PSM4 1310nm 2km QSFP28 PSM4 1310nm 2km MPO SMF
25G SFP28 AOC 1M 25Gbps 850nm Multimode SFP28 AOC 1~100M
25G SFP28 DAC SFF-8402 25G SFP28 to SFP28 DAC 1m 3m 5meter
40G QSFP+ AOC 1M QSFP-AOC Active 40Gbase 1~100meter
40G QSFP+ DAC 1M QSFP SFF8436 Passive Cable 1~5M
100G QSFP28 TO QSFP28 DAC 1M 2M 3M 5M SFF-8665 100G QSFP28 Passive
100G QSFP28-SR4 AOC 1M 100GBASE-SR4 QSFP28 AOC Fiber

Hilink 200G QSFP56 FR4 QSFP Transceiver Module 2km 1310nm CWDM4 DOM Duplex LC SMF 4Hilink 200G QSFP56 FR4 QSFP Transceiver Module 2km 1310nm CWDM4 DOM Duplex LC SMF 5
