40G ER4 40KM QSFP Optical Transceiver Duplex LC 1310nm Optical Module Tramsceiver

Product Details:
Place of Origin: China
Brand Name: HILINK
Certification: CE FCC Rohs
Model Number: HL-QSFP-40G-ER4
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Static bag, Plastic Flat, Retail box, by requires
Payment Terms: L/C, T/T, Western Union.Paypal
Supply Ability: 100/PCS/MONTH
  • Detail Information
  • Product Description

Detail Information

Data Rate: 40G Distance: 40KM
Wavelength: 1270-1330 Fiber Connector: Duplex LC
Warranty: 3 Years Source: DFB APD
High Light:

ER4 40KM QSFP Optical Transceiver

,

DOM Function QSFP Optical Transceiver

,

40G LC Optical Module Tramsceiver

Product Description

QSFP+ 40G QSFP ER4 40KM Duplex LC 1310nm Optical Module Tramsceiver DOM Function



Features :

  • 4 CWDM lanes MUX/DEMUX design
  • Up to 11.2Gbps per channel bandwidth
  • Aggregate bandwidth of > 40Gbps
  • Duplex LC connector
  • Compliant with 40G Ethernet IEEE802.3ba and 40GBASE-ER4 Standard
  • QSFP MSA compliant
  • Up to 40km transmission
  • Compliant with QDR/DDR Infiniband data rates
  • Single +3.3V power supply operating
  • Built-in digital diagnostic functions
  • Temperature range 0°C to 70°C
  • RoHS Compliant

Applications :

  • Rack to rack
  • Data centers Switches and Routers
  • Metro networks
  • Switches and Routers
  • 40G BASE-ER4 Ethernet Links

Description:

          The HLQSFP40 is a transceiver module designed for 40Km optical communication applications. The design is compliant to 40GBASE-ER4 of the IEEE P802.3ba standard. The module converts 4 inputs channels (ch) of 10Gb/s electrical data to 4 CWDM optical signals, and multiplexes them into a single channel for 40Gb/s optical transmission. Reversely, on the receiver side, the module optically de-multiplexes a 40Gb/s input into 4 CWDM channels signals, and converts them to 4 channel output electrical data.



Related Product

QSFP-40G-SR4 QSFP+, 40GBASE-SR4, MMF, 850nm, 150M, MPO
QSFP-40G-LR4 QSFP+, 40GBASE-LR4, SMF, 1270~1330nm, 10KM LC
QSFP-40G-ER4 QSFP+, 40GBASE-ER4, SMF, 1270~1330nm, 30KM LC
QSFP-40G-ZR4 QSFP+, 40GBASE-ZR4, SMF, 1270~1330nm, 80KM LC

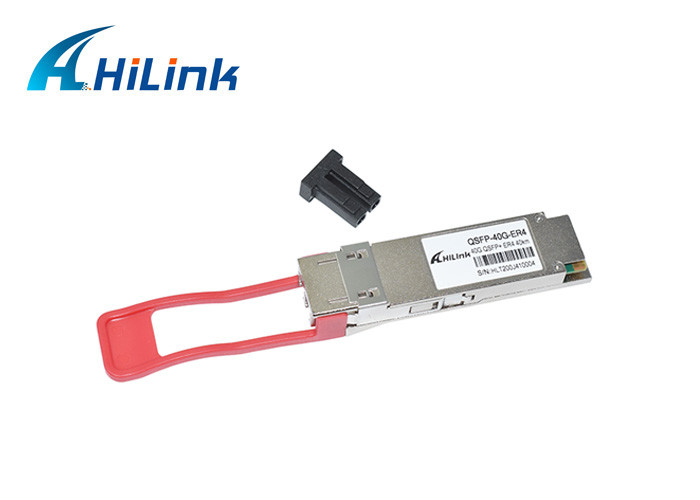

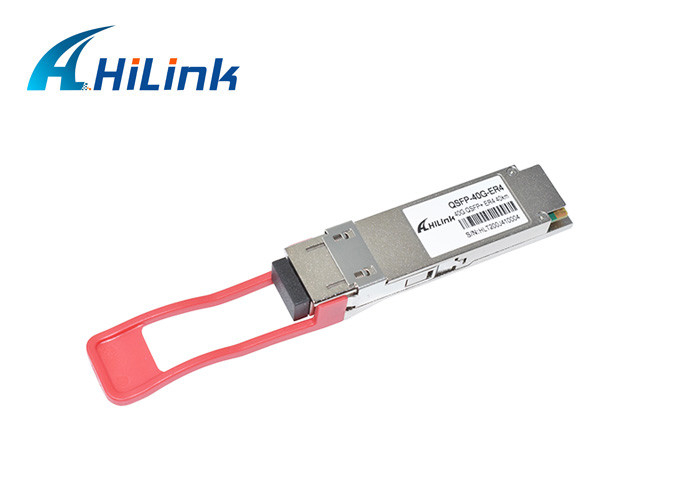

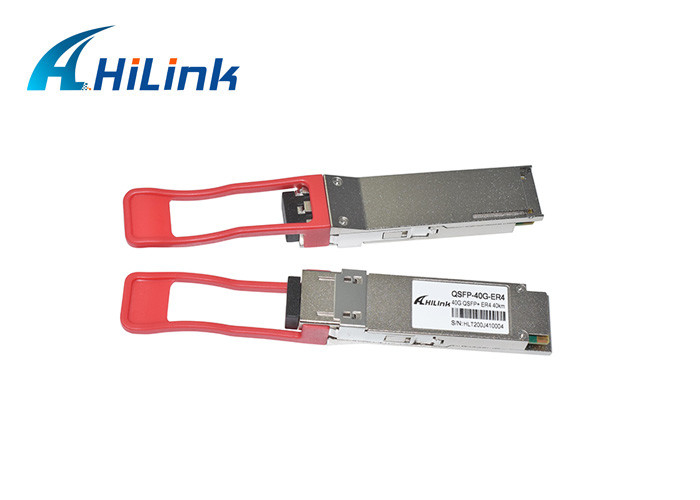

40G ER4 40KM QSFP Optical Transceiver Duplex LC 1310nm Optical Module Tramsceiver 040G ER4 40KM QSFP Optical Transceiver Duplex LC 1310nm Optical Module Tramsceiver 140G ER4 40KM QSFP Optical Transceiver Duplex LC 1310nm Optical Module Tramsceiver 2

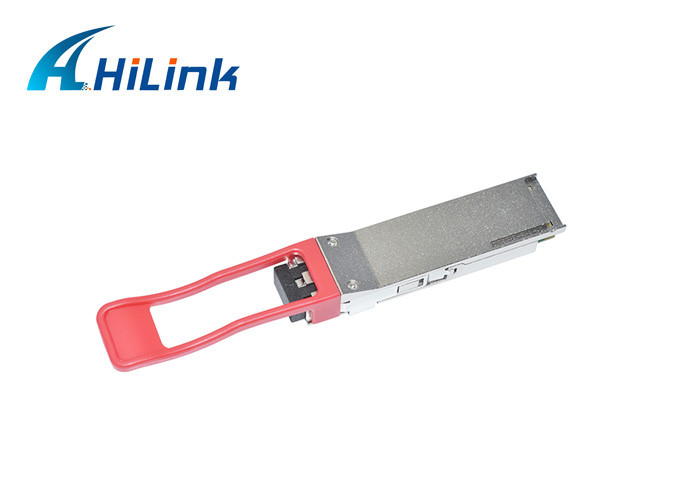

40G ER4 40KM QSFP Optical Transceiver Duplex LC 1310nm Optical Module Tramsceiver 3

Our Service:

1. Contact our sales for more details to confirm your order.
2. Short lead time after confirmation.

3. We deliver goods by international Express.

4. Quick response for customers' feedback and other questions.



Shipment & Payment
1. International Express: DHL, Fedex, UPS, EMS, UPS, TNT and etc.
2. Payment: T/T, Western Union, Paypal and so on.



Guarantee:

›& Brand new.

›& OEM/ODM is available.
›& 100% through quality test and aging test.
›& 3 years warranty(From the date of shipment).



Technician support:

We support technical guide to solve malfunction or substitute components, and provide the project of related networking configuration.
After-sales service
We have after service for 24 hours, promises to supply technical service or guide in anytime.
Our co-workers will be response clients's requirement in 12 hours after emergency happened.


Packing Details: Static bag, Plastic PVC Pack, Retail box, Technical box, or customized.
