EML APD SFP+ Transceiver Module 10G CWDM 1470nm-1610nm 80KM ZR Duplex LC DDM

Product Details:
Place of Origin: China
Brand Name: HILINK
Certification: CE FCC Rohs
Model Number: CWDM-SFP10G-80
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Blister Packaging
Delivery Time: 3-5 Working Days
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 100PCS Per Day
  • Detail Information
  • Product Description

Detail Information

Wavelength: 1470~610nm Data Rate: 10Gbs
Distance: 80KM Package: SFP+
DOM DDM: Yes Transmitter: EML
Receiver: APD Warranty: 3 Years
High Light:

EML APD SFP+ Transceiver Module

,

10G CWDM SFP+ Transceiver Module

,

Duplex LC 10G SFP+ CWDM

Product Description

10G CWDM 1470nm~1610nm 80KM ZR Duplex LC SFP+ Transceiver DDM EML+APD



Hilink HLSCxx1XL-CD80 CWDM 10Gbps SFP+ transceiver is designed to transmit and receive optical data over single mode optical fiber for link length 80km.



Full channels as CWDM for

1270nm 1290nm 1310nm 1330nm 1350nm 1370nm 1390nm 1410nm 1430nm 1450nm

1470nm 1490nm 1510nm 1530nm 1550nm 1570nm 1590nm 1610nm





Features



  • Hot-pluggable SFP+ footprint
  • Supports 9.95 to 11.3Gb/s bit rates

  • Duplex LC connector

  • Cooled 1470nm~1610nm EML transmitter, APD receiver

  • Applicable for 80km SMF connection

  • Low power consumption, < 1.5W

  • Digital Diagnostic Monitor Interface

  • Optical interface compliant to IEEE 802.3ae 10GBASE-ZR

  • Electrical interface compliant to SFF-8431

  • Operating case temperature: Commerical:0 to 70 °C    Industrial: -40 to 80 °C

  • RoHS-6 compliant (lead-free)

Item No. CWDM-SFP10x-80 Vendor Name Hilink
Form Type SFP+ Max Data Rate 10Gbps
Wavelength CWDM Max Cable Distance 80KM
Interface LC duplex Optical Components EML CWDM
Cable Type SMF DOM Support Yes
TX Power 0~3dBm Receiver Sensitivity <-23dBm
Commercial Temperature Range 0 to 70°C (32 to 158°F) HTS-Harmonized Code 8517706000




Applications

  • 10GBASE-ER at 10.3125Gbps
  • 10G Ethernet
  • Other optical links

EML APD SFP+ Transceiver Module 10G CWDM 1470nm-1610nm 80KM ZR Duplex LC DDM 0



EML APD SFP+ Transceiver Module 10G CWDM 1470nm-1610nm 80KM ZR Duplex LC DDM 1


Warranty

We promise all the advertised optical transceivers are brand new with new components and parts.
We absolutely never use old and refurbished materials.
All the optical transceivers have been through functional test and aging test.
We provide 3 years warranty for all the optical transceivers from the date of shipment.
Shipment





Competitive Advantages:


1. Excellent quality and 3 years warranty
2. Competitive price updating
3. Full compatible (CISCO/HP/Extreme/Juniper/H3C…)
4. OEM/ODM Customized label
5. Keep stock,Fast delivery


Hilink can provide the both ourselves forwarder and customer appointed forwarder in the way of by FedEx, DHL, UPS, TNT and EMS.
Some items in stock can be shipped out the same day . The Items with no stock, then the shipment would be done in 3-7 days.
DHL will take 2-4 business days for delivery and FedEx just needs 1-3 business days.
For Spain, Italy, Brazil and some other countries, items will take longer time to arrive due to customs clearance period.

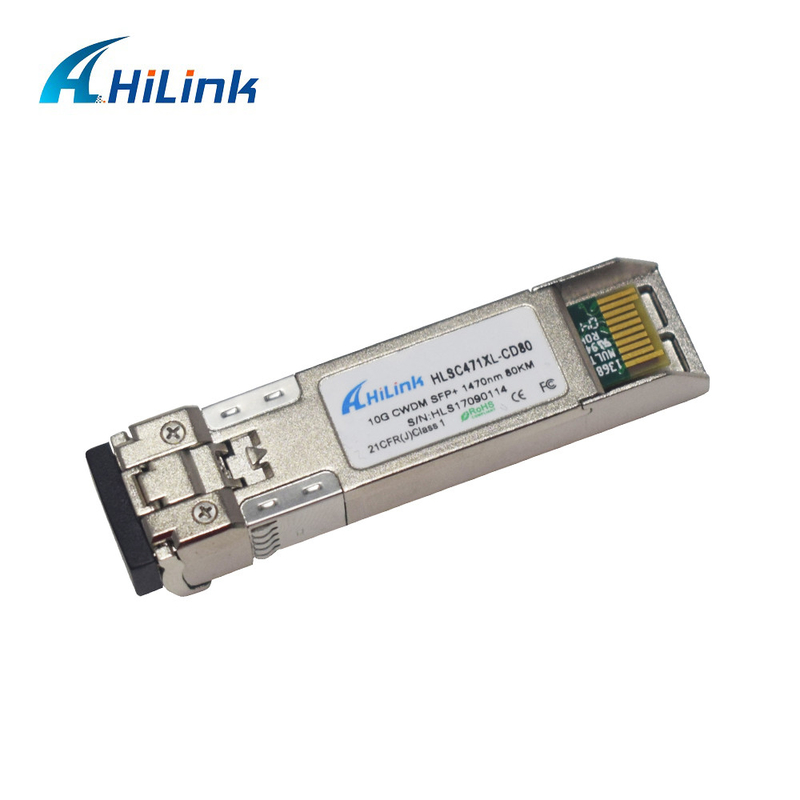

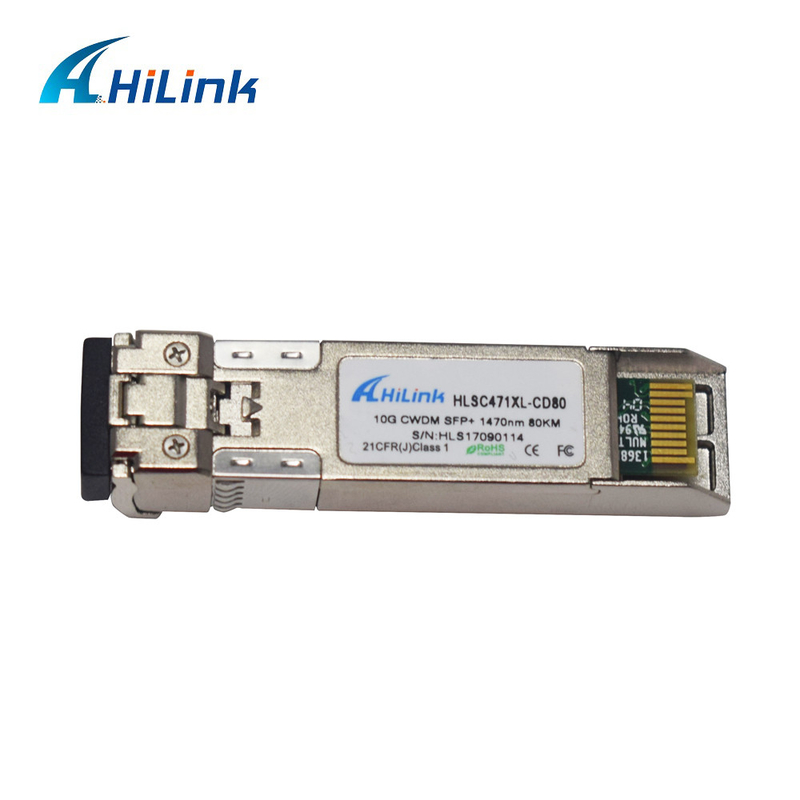

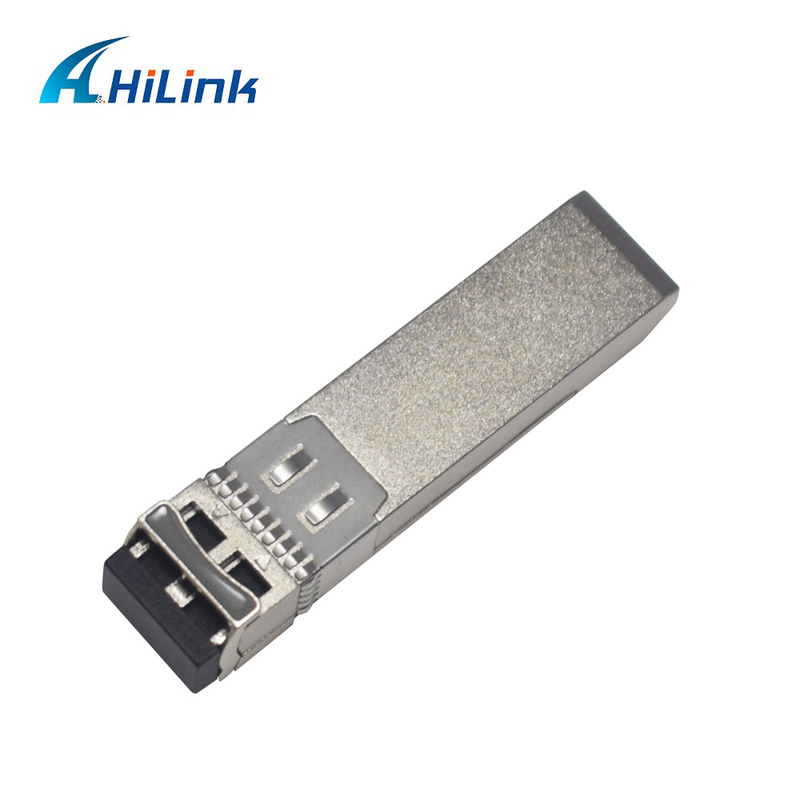

Product Photos




EML APD SFP+ Transceiver Module 10G CWDM 1470nm-1610nm 80KM ZR Duplex LC DDM 2



EML APD SFP+ Transceiver Module 10G CWDM 1470nm-1610nm 80KM ZR Duplex LC DDM 3

EML APD SFP+ Transceiver Module 10G CWDM 1470nm-1610nm 80KM ZR Duplex LC DDM 4
