100GHZ C Band 10G DWDM 100KM Optical Transceiver Module For Long Haul Transmission

100GHZ C Band 10G DWDM 100KM Optical Transceiver Module For Long Haul Transmission

Product Details:

Place of Origin: China
Brand Name: HILINK
Certification: CE FCC Rohs
Model Number: DWDM-SFP10GXX-100

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Blister Packaging
Delivery Time: 3-5 Working Days
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 100PCS Per Day
Get Best Price Contact Now

Detail Information

Wavelength: CH17-CH61 Data: 10Gbs
Distance: 100KM Package: SFP+
Transmitter: DWDM EML Receiver: APD
High Light:

10G DWDM Optical Transceiver Module

,

100GHZ Optical Transceiver Module

,

Long Haul Transmission Optical Transceivers

Product Description

100GHZ C-Band 10G DWDM 100KM CH17-61 DW-SFP10G-100 for Long-haul Transmission

Hilink 10G DWDM SFP+ ZR optical transceivers are designed for use in 10-Gigabit Ethernet links up to 100km over Single Mode fiber.


Features

  • Duplex LC Connector

  • Support hot-pluggable

  • Metal with lower EMI

  • Excellent ESD protection

  • C-band DWDM 100GHz channel spacing

  • EML Transmitter and APD Receiver

  • Max link length up to 100Km on SMF

  • RoHS Compliant and Lead-Free

  • Digital diagnostic compatible with SFF-8472

  • 10GBASE-ZR, and 2G/4G/ 8G/10G Fiber Channel applications.

  • Case Operation Temperature: 0~+70℃

  • Single 3.3V power supply and Low power dissipation


Specifications & Parameters


Item No. DW-SFP10GX-100 Vendor Name Hilink
Form Type SFP+ Max Data Rate 10Gbps
Wavelength DWDM CH17-CH61 Max Cable Distance 0KM
Interface LC duplex Optical Components EML DWDM
Cable Type SMF DOM Support Yes
TX Power 0~4dBm Receiver Sensitivity <-25dBm
Commercial Temperature Range 0 to 70°C (32 to 158°F) HTS-Harmonized Code 8517706000


100GHZ C Band 10G DWDM 100KM Optical Transceiver Module For Long Haul Transmission 0

Hilink optical Transceiver 100% compatibility: Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Mikrotik, Finisar, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.


Applications

  • 10G Fiber Channel

  • Other optical links

  • SONET/SDH

  • DWDM Systems


DWDM Solution Example
100GHZ C Band 10G DWDM 100KM Optical Transceiver Module For Long Haul Transmission 1

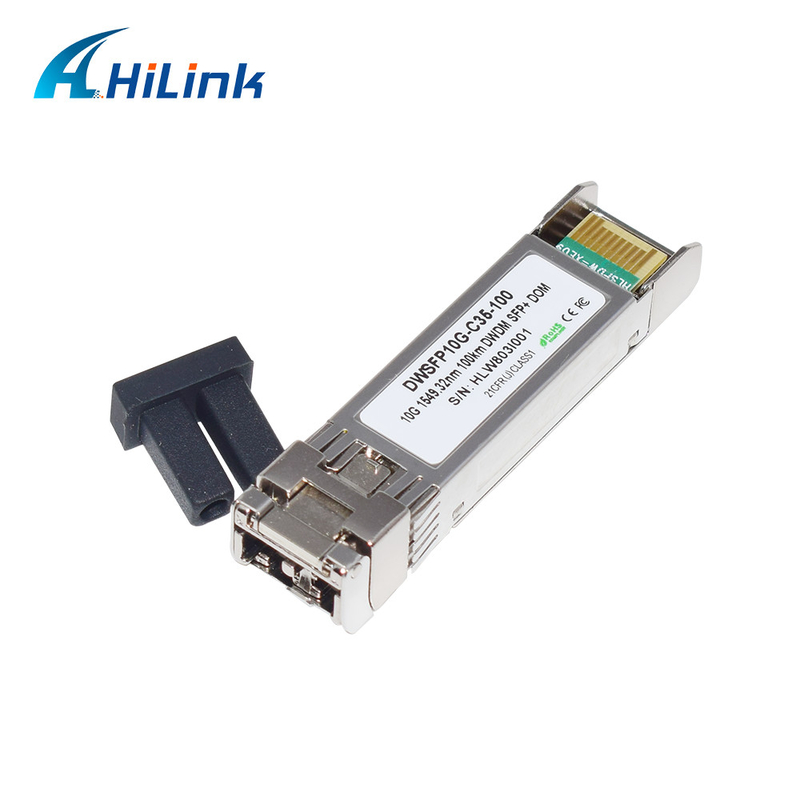

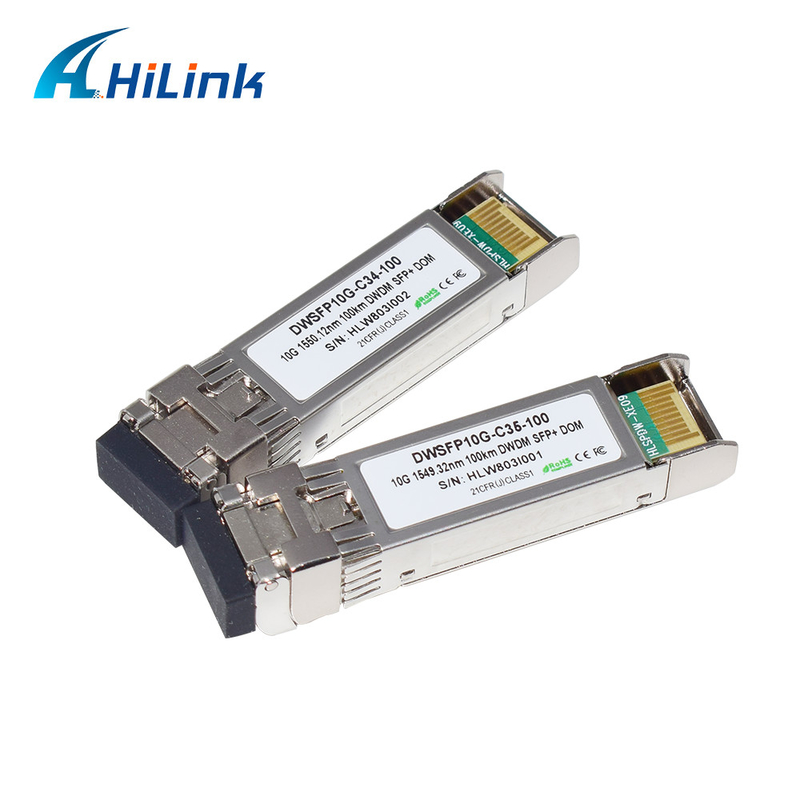

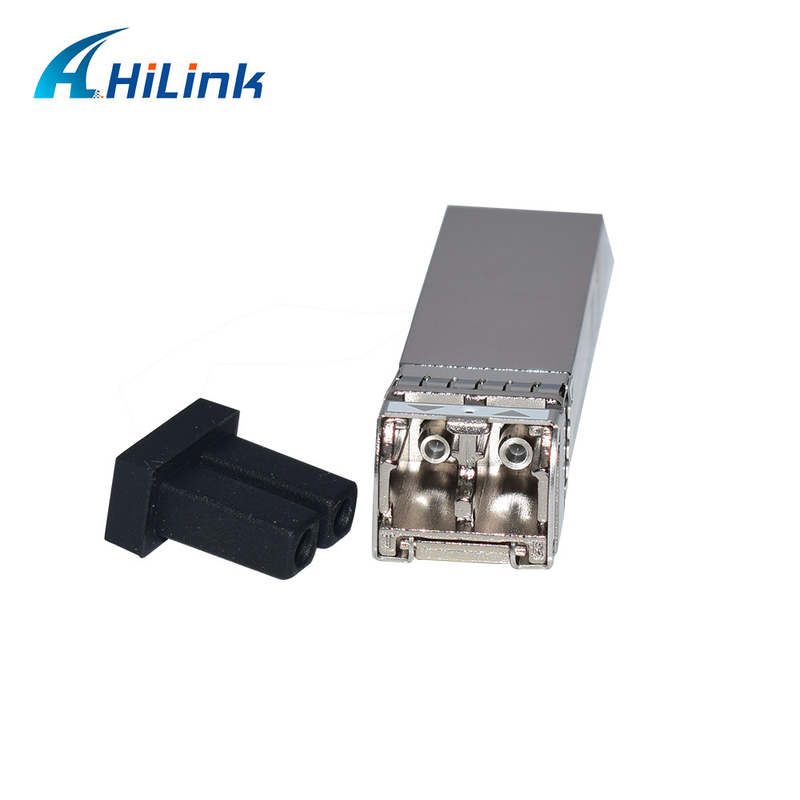

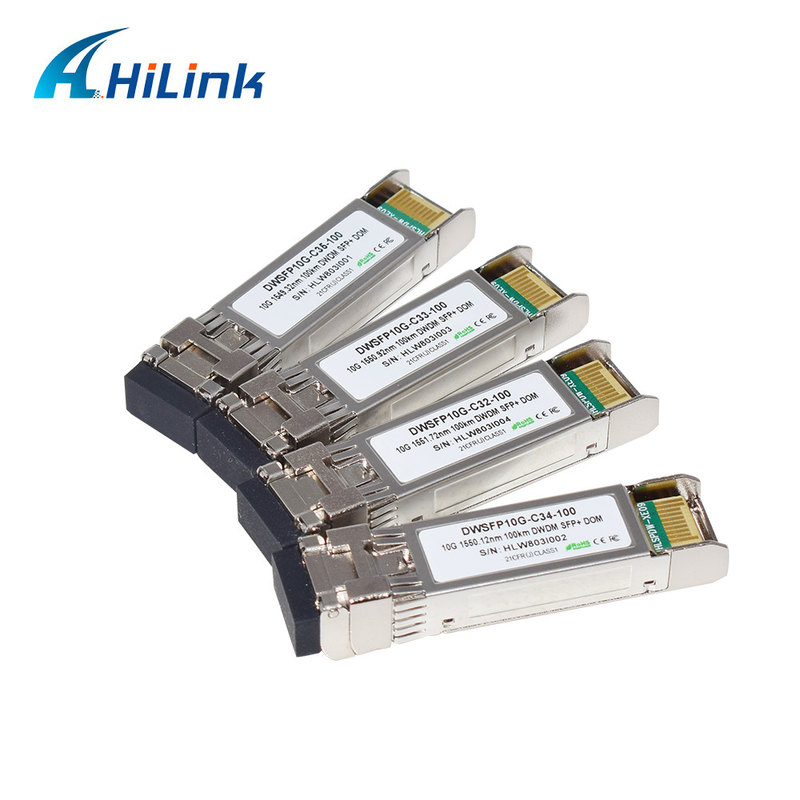

Details Photos
100GHZ C Band 10G DWDM 100KM Optical Transceiver Module For Long Haul Transmission 2

100GHZ C Band 10G DWDM 100KM Optical Transceiver Module For Long Haul Transmission 3


Hilink Advantage

1. Hilink establish in 2007,Specialize in this field with around 10-year experience.
2." Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our products are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our products from the date of shipment.
5. All of our products passed CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM with optical solutions.
