Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | HILINK |
| Certification: | CE FCC Rohs |
| Model Number: | DWDM-SFP10GXX-80-T |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | Blister Packaging |
| Delivery Time: | 3-5 Working Days |
| Payment Terms: | T/T, Western Union, MoneyGram,Paypal |
| Supply Ability: | 100PCS Per Day |
|
Detail Information |
|||
| Wavelength: | C-band Wavelength | Data: | 1G~11.3Gbs |
|---|---|---|---|
| Distance: | 80KM | Package: | SFP+ |
| Transmitter: | C-band-tunable Laser | Receiver: | APD |
| High Light: | Tunable SFP+ Optical Module,10G DWDM SFP+ Optical Module,C Band tunable sfp+ dwdm |
||
Product Description
C-band Tunable 10GBASE-ZR 10G DWDM Multi-rate 80KM SMF Optical Modules for OTN
Hilink C-band Tunable SFP+ transceivers are designed for use in 1Gbps to 11.3Gbps multi-rate 50GHz/100GHz DWDM links up to 80km of G.652 single mode fiber.
Compatible with multiple network applications and transmission formats: CPRI, OTN, Fibre Channel, etc. Hot pluggable, and with narrow band tunability, it significantly reduces sparing and configuring costs in optical networks.
The module is optimised for Local Area Networks (LAN), Mobile Fronthaul and 10G Ethernet (10GbE), over single-mode fibre (SMF) optical links, P2P and passive networks. Optional G.Metro feature enables wavelength auto-tuning over Fibre. Digital Optical Monitoring interfaces are provided via the SFP+ standards compliant I2C interface.
Features
Specifications & Parameters
| Item No.d | DW-SFP10GX-80-T | Vendor Name | Hilink |
| Form Type | SFP+ | Max Data Rate | 10Gbps |
| Wavelength | DWDM CH17-CH61 | Max Cable Distance | 80KM |
| Interface | LC duplex | Optical Components | EML DWDM |
| Cable Type | SMF | DOM Support | Yes |
| TX Power | -2~4dBm | Receiver Sensitivity | <-21dBm |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) | HTS-Harmonized Code | 8517706000 |
Transmit Characteristics
| Parameter | Min | Max | Unit |
| Data rate | 1.0 | 11.3 | Gbps |
| Optical output power | -2 | +4 | dBm |
| Side-Mode Suppression Ratio | 35 | dB | |
| Extinction ratio (NRZ, filtered) | 8.2 | dB | |
| Spectral excursion | -11 | +11 | GHz |
| Optical Frequency Tuning Range (4 bands) | 196.05 (1529.16) | 191.30 (1567.14) | THz(nm) |
Receive Characteristics
| Parameter | Min | Max | Unit |
| Data rate | 1.0 | 11.3 | Gbps |
| Maximum bit error ratio(10Gbps) | 1e-12 | - | |
| Receiver wavelength range | 1260 | 1600 | THz(nm) |
| Receive Sensitivity | -21 | dBm | |
| Receiver optical reflectance | -27 | dB | |
| LOS assert | -34 | dBm | |
| LOS de-assert | -25 | dBm | |
| LOS Hysteresis | 0.5 | dB |
Hilink optical Transceiver 100% compatibility: Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Mikrotik, Finisar, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
Applications
10G Fiber Channel
Other optical links
SONET/SDH
DWDM Systems
DWDM Solution Example

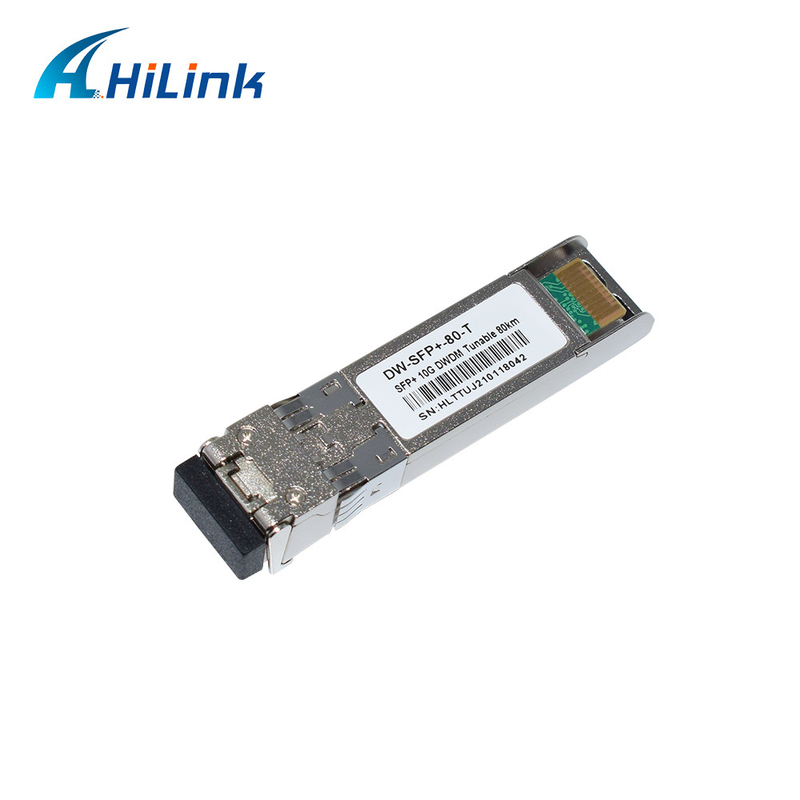

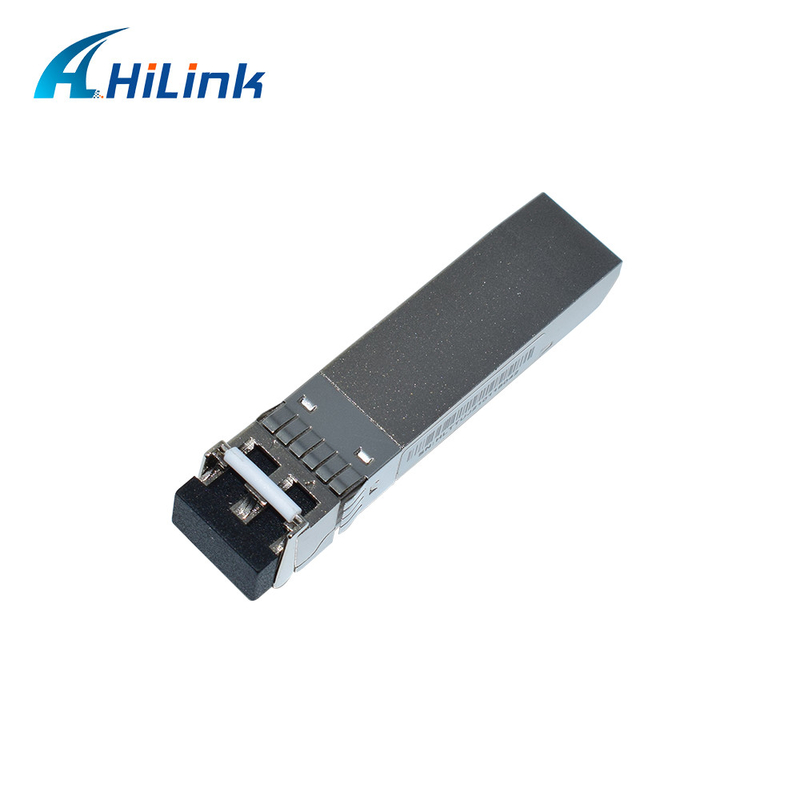

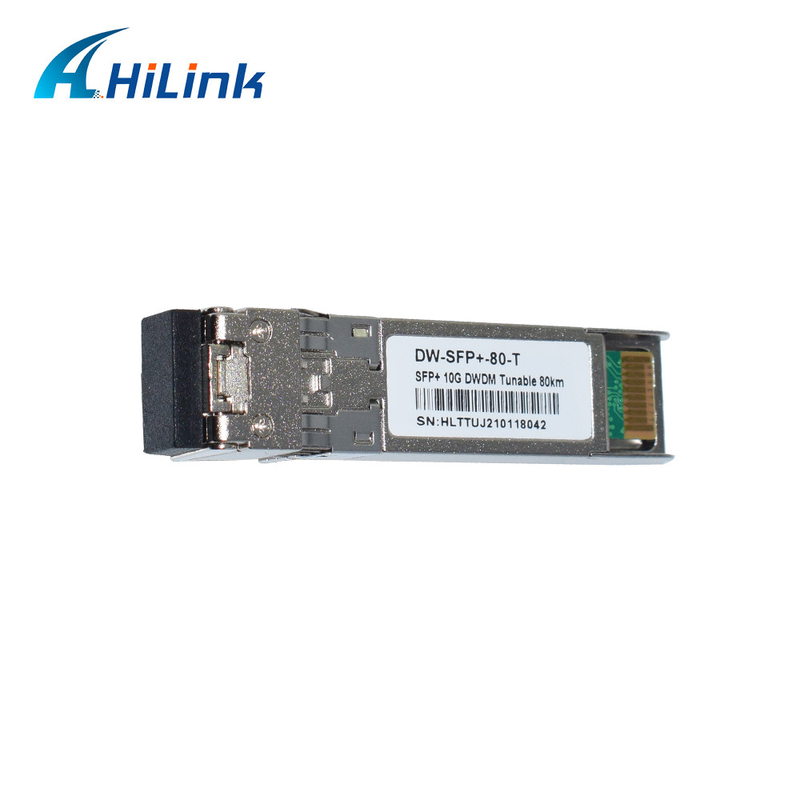

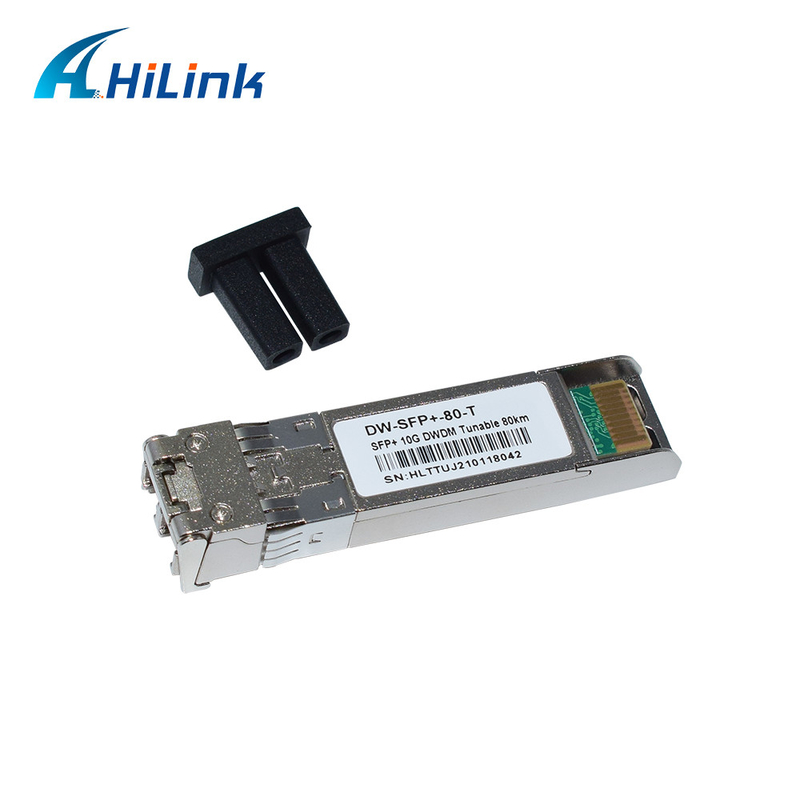

Details Photos
Hilink Advantage
1. Hilink establish in 2007,Specialize in this field with around 10-year experience.
2." Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our products are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our products from the date of shipment.
5. All of our products get through CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM with optical solutions.
