Product Description

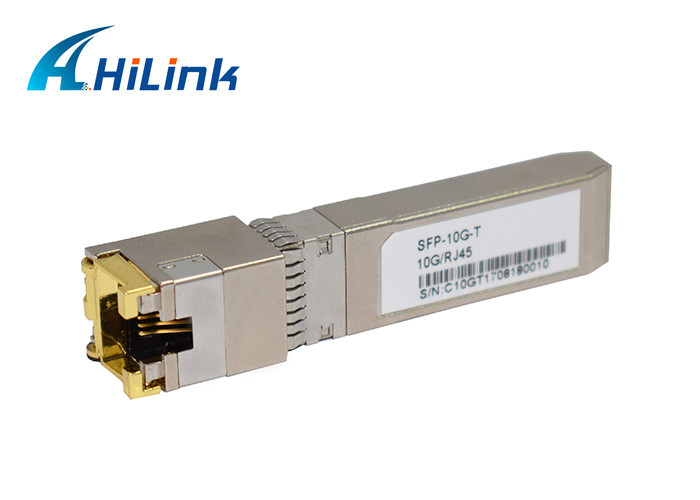

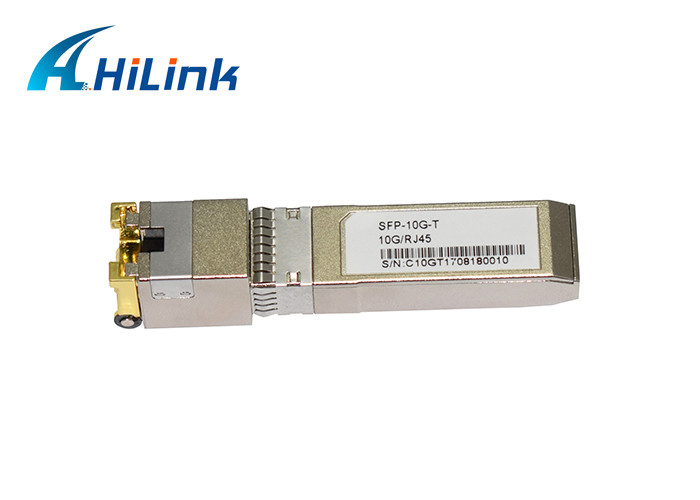

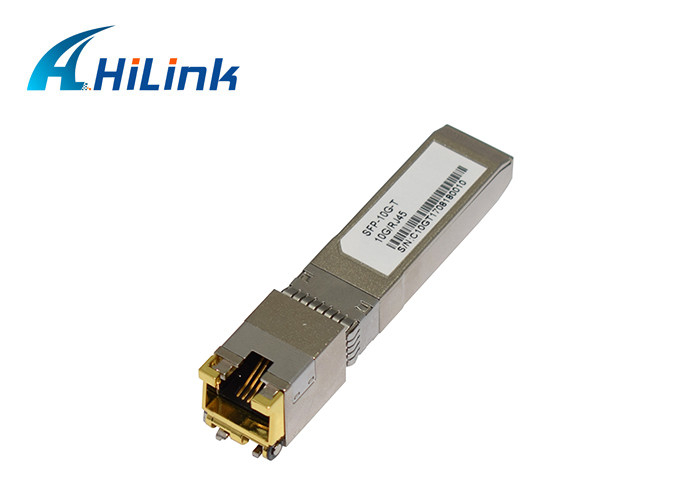

10G BASE-T RJ45 to 30~80 Meters CAT6 Copper SFP+ Transceivers

Hilink 10G Copper RJ45 SFP+ is designed for 10G Ethernet 10GBASE-T links over Cat6 RJ45 copper cable. 30meter and 80meter available.  SFP+-10GBASE-T Copper Small Form Pluggable (SFP) transceivers are based on the SFP Multi Source Agreement (MSA) . They are compatible with the 10Gbase-T / 5Gbase-T / 2.5Gbase-T / 1000base-T standards as specified in IEEE Std 802.3 . SFP+-10GBASE-T uses the SFP's RX_LOS pin for link indication. If pull up SFP's TX_DISABLE pin, PHY IC be reset.

Features

• Hot-pluggable SFP+ form factor

• Compliant with SFF-8431 and SFF-8432 MSA standards

• Compliant with IEEE 802.3az and 802.3an standards

• Compliant with IEEE 802.3bz 5GBASE-T and 2.5GBASE-T standards

• TX Disable and RX Los function

• Fully metallic enclosure for Low EMI Emissions

• Supports 100/1000BASE-T using Cat 5e cable or better

• MDI/MDIX Crossover

• Supports 10Gb/s data rate

• Auto-negotiates with other 10GBASE-T PHYs

• XFI/5GBASE-R/2500BASE-X/SGMII, SGMII Auto-Negotiation On

• Access to physical layer IC via 2-wire serial bus

• 2.5W maximum power dissipation @30m

• Compact RJ-45 connector assembly

• Multiple Loopback Modes for Testing and Troubleshooting

• Unshielded and Shielded cable support

• Single 3.3V power supply

• RoHS-6 compliant (lead free)

Compatibility

Hilink Advantage

1. Hilink establish in 2007,Specialize in this field with around 10-year experience.
2." Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our products are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our products from the date of shipment.
5. All of our products get through CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM with optical solutions.
