Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | HILINK |
| Certification: | CE FCC RoHS |
| Model Number: | HL-QSFP-SR4 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | Blister Packaging |
| Delivery Time: | 3-5 Working Days |
| Payment Terms: | T/T, Western Union, MoneyGram,Paypal |
| Supply Ability: | 100PCS Per Day |
|
Detail Information |
|||
| Data Rate: | 40G | Package: | QSFP+ |
|---|---|---|---|
| Power Supply: | 3.3V | Connector: | MPO/PC (8-strand Or 12-strand, Type B, Female Connector) |
| Reach Distance: | 100/150 M | Wavelength: | 850nm |
| DDM: | Supported | Logo: | Customized |
| High Light: | QSFP+ 40G 100M Optical Transceivers,Electrically Hot pluggable QSFP+ Transceiver |
||
Product Description

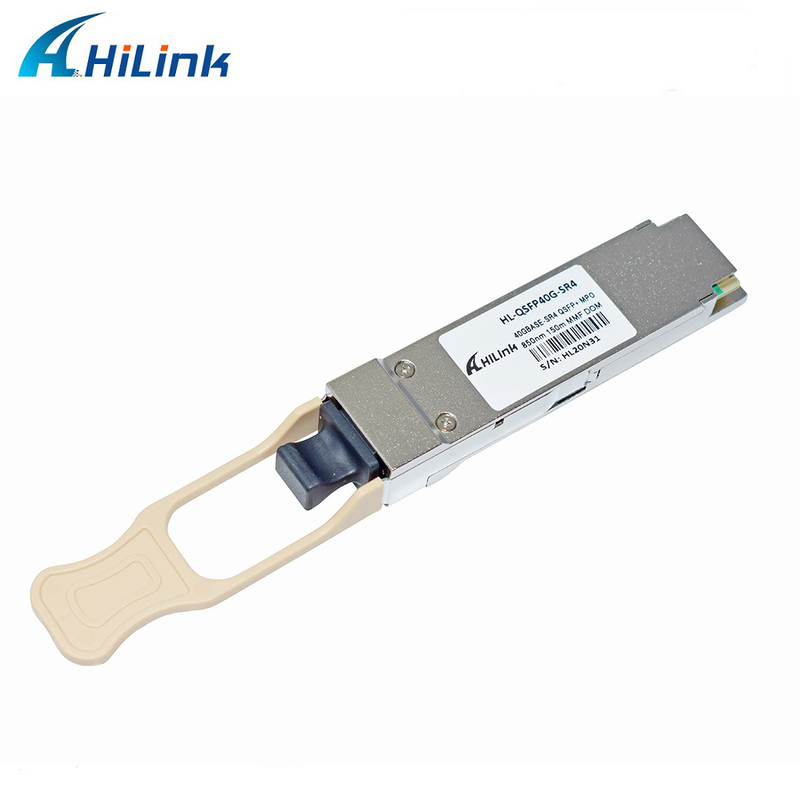

QSFP+ 40G SR4 MMF 850nm 100M OM3 150M OM4 MPO Connector Optical Transceivers
Hilink 40G 850nm OM3 100m QSFP SR4 Optical Transceiver uses an 12 fiber MPO connector.
Item |
Description |
|---|---|
|
Transceiver form factor |
QSFP+ |
|
Transmission speed |
40GE |
|
Center wavelength (nm) |
850 |
|
Standards compliance |
40GBASE-SR4 |
|
Connector type |
MPO/PC (8-strand or 12-strand, type B, female connector) |
|
Applicable cable and maximum transmission distance |
Multimode fiber (OM3): 0.1 km Multimode fiber (OM4): 0.15 km |
|
Transmit power (dBm) |
-7.6 to +2.4 |
|
Maximum receiver sensitivity(dBm) |
-5.4 |
|
Overload power (dBm) |
2.4 |
|
Extinction ratio (dB) |
3.0 |
|
Operating temperature |
0°C to 70°C (32°F to 158°F) |
Features
QSFP+ MSA, SFF-8436 compatible
MPO Connector
Distance up to 150m over OM4 Fiber
VCSEL array transmitter and PIN array receiver
Electrically Hot-pluggable
Single 3.3V Power Supply
Power Dissipation< 1.5W
Digital Diagnostics Monitoring Interface
Operating Case Temperature: 0-70℃
Applications
40GBASE-SR4
Server-Server Clusters, Super-computing interconnections
40G Applications backplane
InfiniBand SDR, DDR and QDR applications
Compatibility
Hilink optical Transceiver 100% compatibility: Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Mikrotik, Finisar, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.

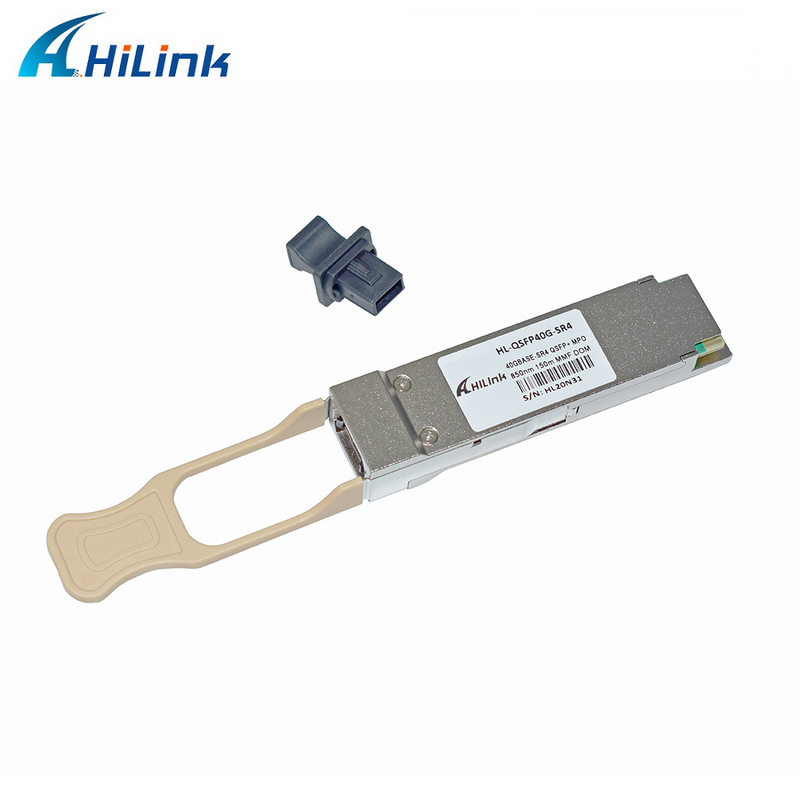

Details Photos
Hilink Advantage
1. Hilink establish in 2007,Specialize in this field with around 10-year experience.
2." Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our products are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our products from the date of shipment.
5. All of our products passed CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM with optical solutions.
