Product Description

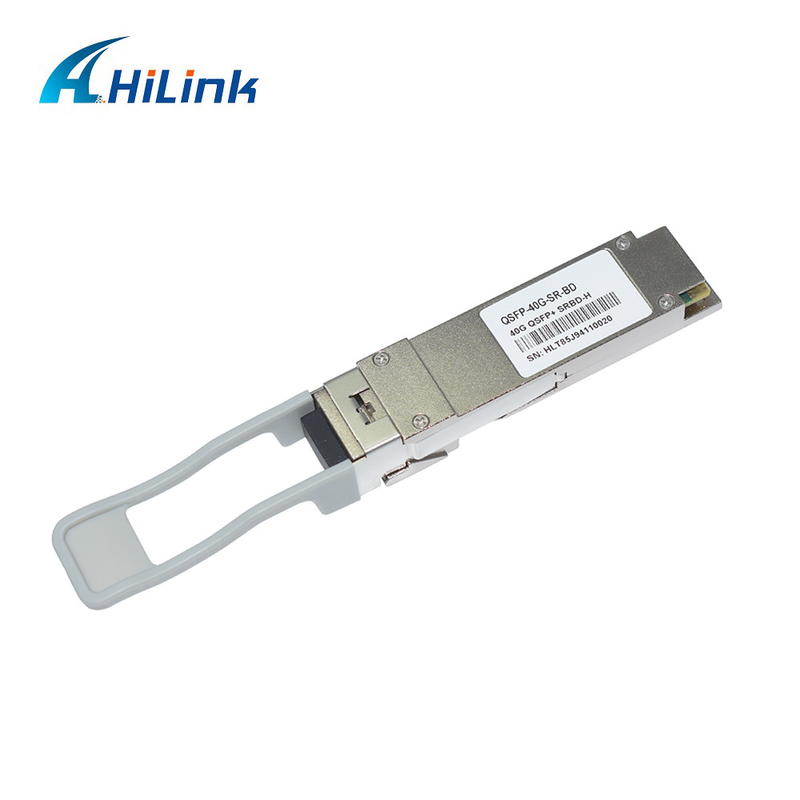

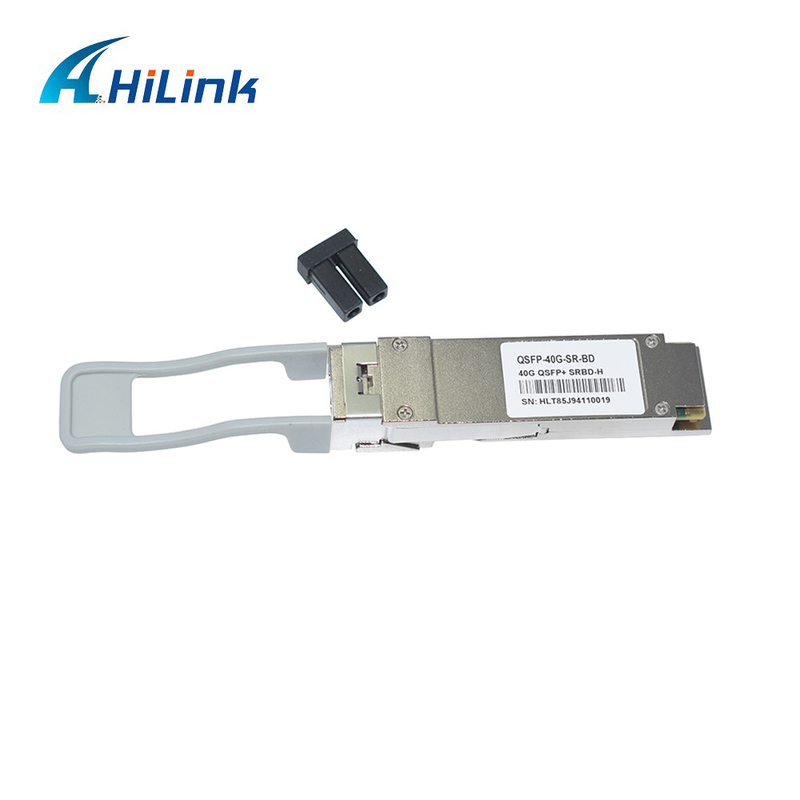

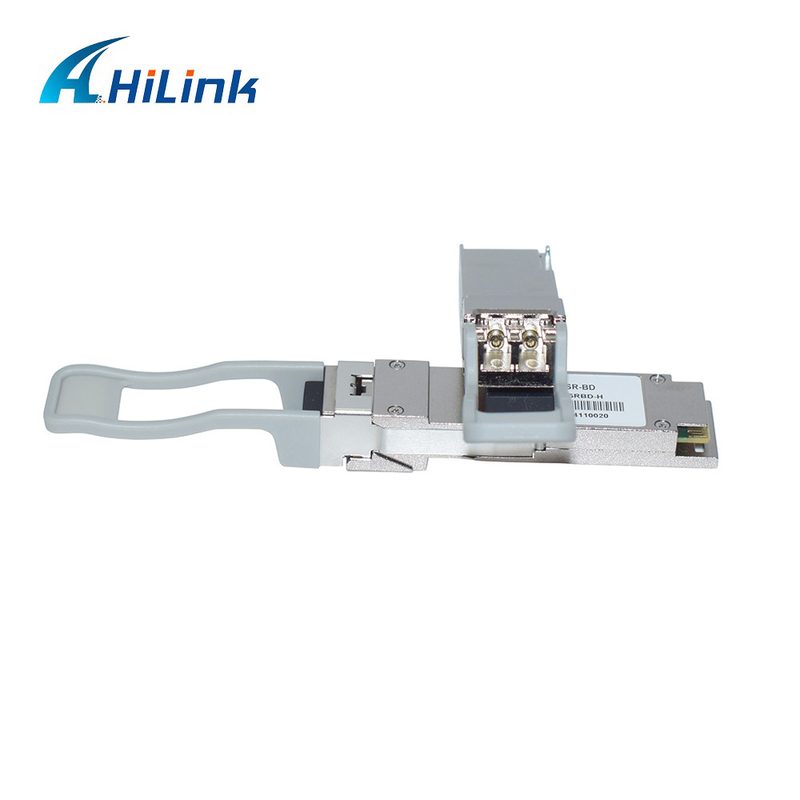

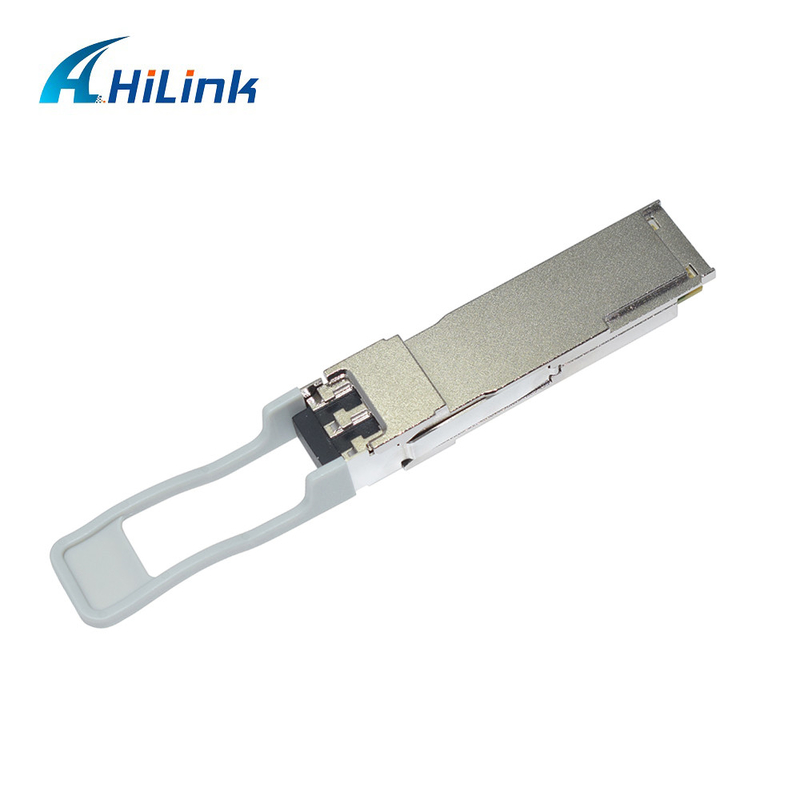

Hot Pluggable QSFP+ 40G SR Bidi 100M MMF 850nm/900nm Dual LC Optical Transceivers

Hilink QSFP BiDi SR is a Four-Channel, Pluggable, LC Duplex, Fiber-Optic QSFP+ Transceiver for 40 Gigabit Ethernet Applications. Link distances up to 100 m using OM3 and 150m using OM4 optical fiber are supported.

Features

• Compliant to the 40GbE XLPPI electrical specification per IEEE 802.3ba-2010

• Compliant to QSFP+ SFF-8436 Specification

• Aggregate bandwidth of > 40Gbps

• Operates at 10.3125 Gbps per electrical channel with 64b/66b encoded data

• QSFP MSA compliant

• Capable of over 100m transmission on OM3 Multimode Fiber (MMF)and 150m on OM4 MMF

• Single +3.3V power supply operating

• Without digital diagnostic functions

• Temperature range 0°C to 70°C

• RoHS Compliant Part

• Utilizes a standard LC duplex fiber cable allowing reuse of existing cable infrastructure

Applications

• 40 Gigabit Ethernet interconnects

• Datacom/Telecom switch & router connections

• Data aggregation and backplane applications

• Proprietary protocol and density applications

Compatibility

Hilink Advantage

1. Hilink establish in 2007,Specialize in this field with around 10-year experience.
2." Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our products are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our products from the date of shipment.
5. All of our products get through CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM with optical solutions.
