QSFP+ 40G IR4 2KM SMF/MMF 1270~1330nm PSM MPO Optical Transceivers

Product Details:
Place of Origin: China
Brand Name: HILINK
Certification: CE FCC RoHS
Model Number: HL-QSFP-IR4
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Blister Packaging
Delivery Time: 3-5 Working Days
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 100PCS Per Day
  • Detail Information
  • Product Description

Detail Information

Data Rate: 40G Package: QSFP+
Power Supply: 3.3V Connector: MPO
Reach Distance: 2KM Wavelength: 1270~1330nm
DDM: Supported Transmitter: VCSEL
High Light:

3.3V 40G QSFP+ Module

,

IR4 2KM 40G QSFP+ Transceiver

,

DDM 40G QSFP+ Transceiver

Product Description

QSFP+ 40G IR4 2KM SMF/MMF 1270~1330nm PSM MPO Optical Transceivers

QSFP+ 40G Series

Part Number Product Description
HiLink-QSFP-40G-SR4 QSFP+, 40Gb/s, 40GBASE-SR4, MMF, 850nm, 100M
HiLink-QSFP-40G-LR4 QSFP+, 40Gb/s, 40GBASE-LR4, SMF, 1310nm, 10KM
HiLink-QSFP-40G-IR4 QSFP+, 40Gb/s, 100GBASE-IR4, SMF, 1310nm, 2KM
HiLink-QSFP-40G-IR4 QSFP+, 40Gb/s, 100GBASE-IR4, SMF, 1310nm, 10KM





Features

  • Full duplex 4 channel 1310nm parallel module

  • Transmission data rate up to 11.3Gbit/s per channel

  • SFF-8436 QSFP+ compliant

  • Hot pluggable electrical interface

  • Singlemode fiber with MPO connectors

  • Differential AC-coupled high speed data interface

  • 4 channels 1310nm FP array ,4 channels PIN photo detector array

  • Maximum link length of 2km on G652 single mode fiber (SMF)

  • Maximum power consumption 3.5W

  • Housing isolated from connector ground

  • Operating case temperature 0°C to +70°C

  • 3.3V power supply voltage

  • RoHS 6 compliant



Applications

  • Infiniband Connectivity SDR/DDR/QDR

  • 10/40 Gigabit Ethernet

  • 2/4/8 Gbps Fiber Channel

  • Data Centers and Storage Array



Compatibility

  • Hilink optical Transceiver 100% compatibility: Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Mikrotik, Finisar, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.




Details Photos

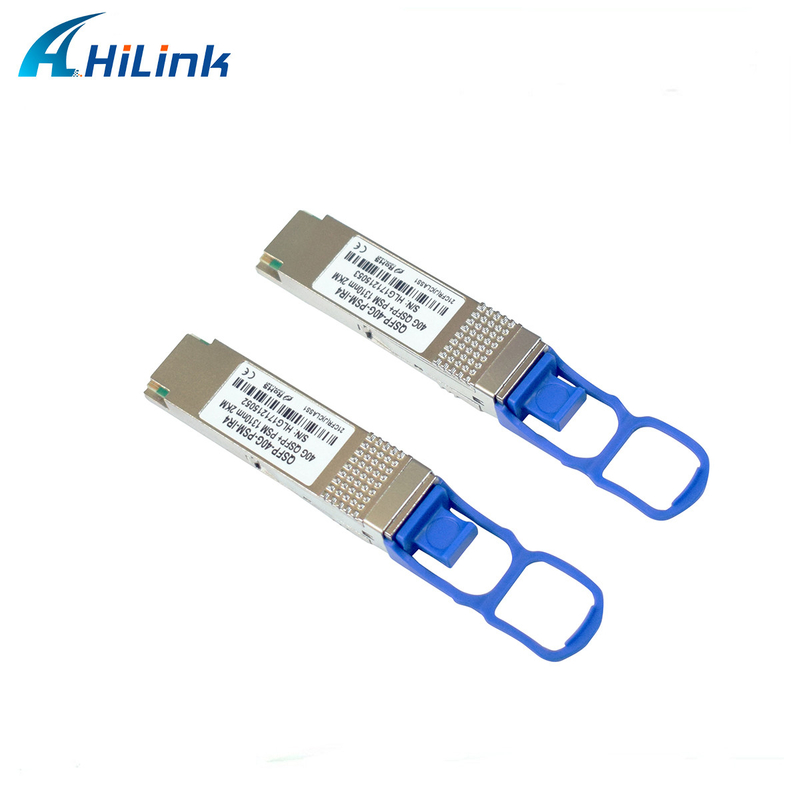

QSFP+ 40G IR4 2KM SMF/MMF 1270~1330nm PSM MPO Optical Transceivers 0

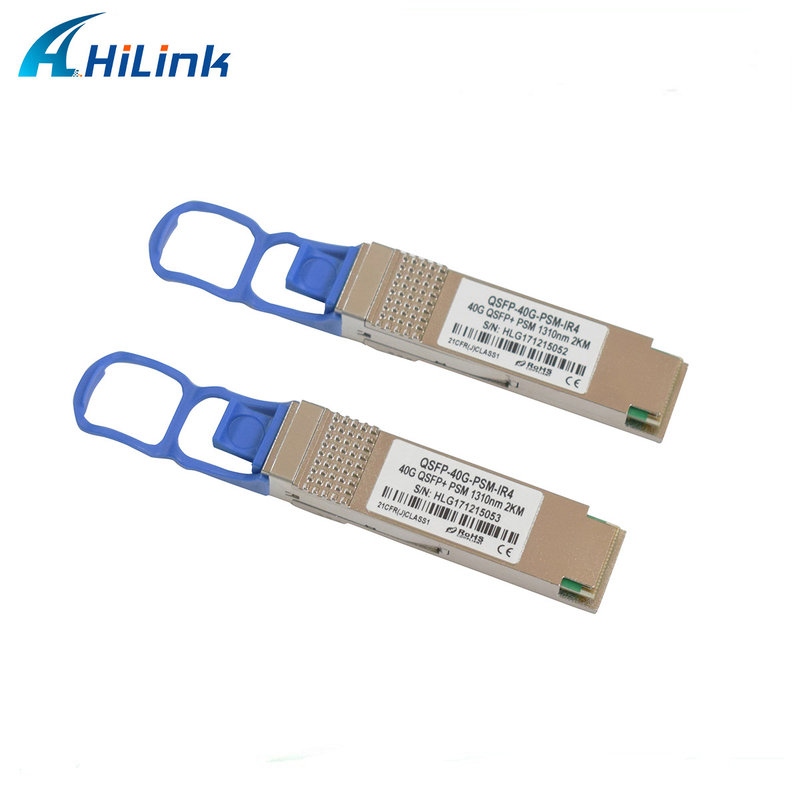

QSFP+ 40G IR4 2KM SMF/MMF 1270~1330nm PSM MPO Optical Transceivers 1

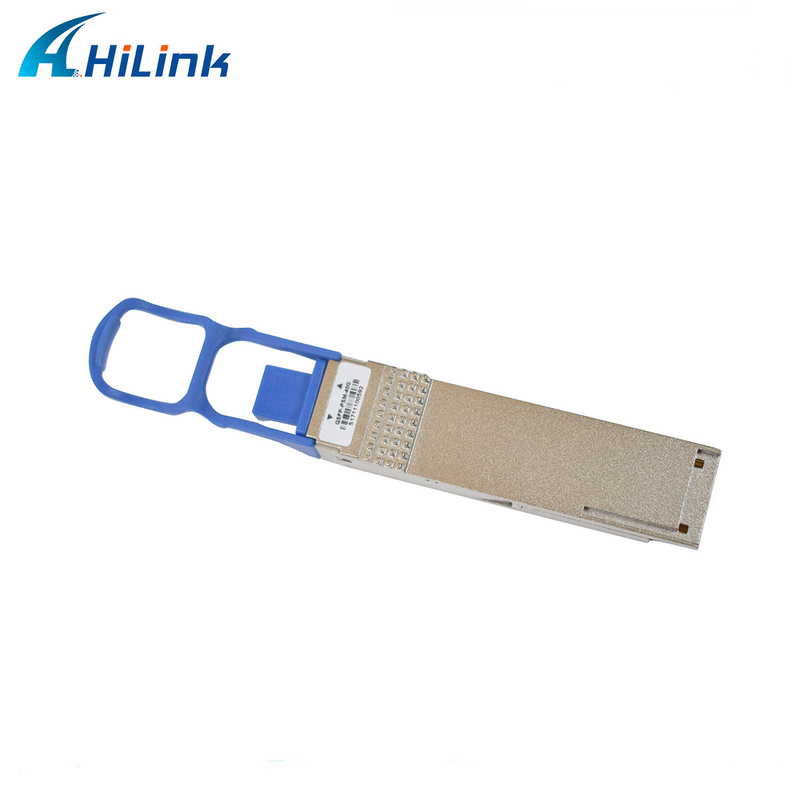

QSFP+ 40G IR4 2KM SMF/MMF 1270~1330nm PSM MPO Optical Transceivers 2

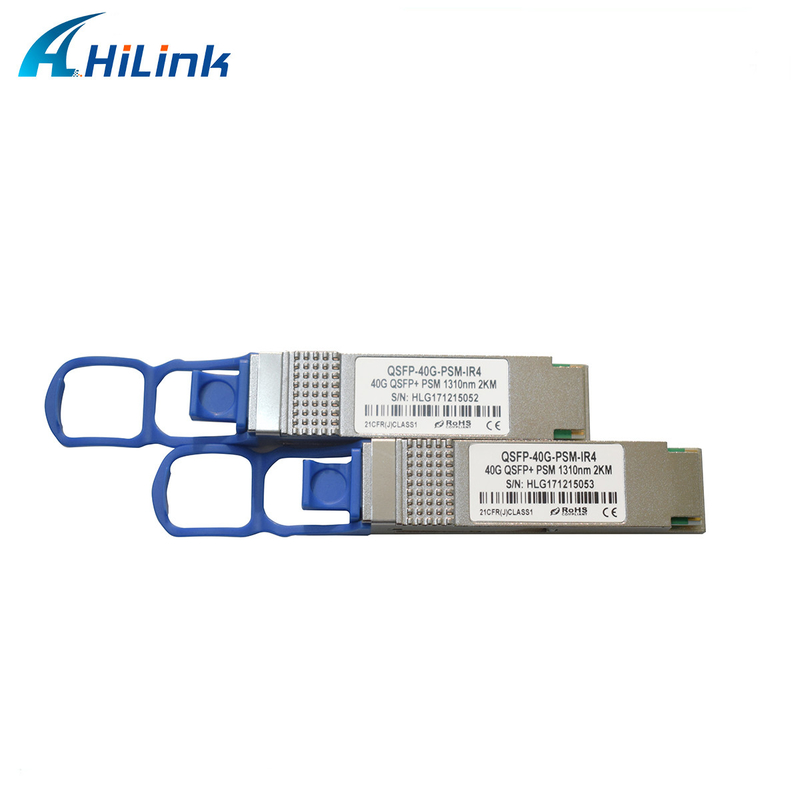

QSFP+ 40G IR4 2KM SMF/MMF 1270~1330nm PSM MPO Optical Transceivers 3





Hilink Advantage

1. Hilink establish in 2007,Specialize in this field with around 10-year experience.
2." Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our products are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our products from the date of shipment.
5. All of our products get through CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM with optical solutions.
