40G QSFP+ Transceiver Module SWDM4 850nm OM3 DOM DDM

40G QSFP+ Transceiver Module SWDM4 850nm OM3 DOM DDM

Product Details:

Place of Origin: China
Brand Name: HILINK
Certification: CE FCC Rohs
Model Number: HL-QSFP-40G-SW4LC

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Static bag, Plastic Flat, Retail box, by requires
Payment Terms: L/C, T/T, Western Union.Paypal
Supply Ability: 100/PCS/MONTH
Get Best Price Contact Now

Detail Information

Type: 40GBASE QSFP 850nm Distance: OM3 240M, OM4 350M
Wavelength: 850nm Connector: Duplex LC
Product Name: QSFP Transceiver Fiber Type: 40G SR4 QSFP+ Optical Transceiver
High Light:

40G QSFP+ Transceiver Module

,

SWDM4 850nm QSFP+ Transceiver Module

,

DOM DDM QSFP+ Transceiver Module

Product Description

New Arrival QSFP 40G QSFP+ Module SWDM4 850nm OM3 OM4 DOM DDM



PRODUCT DESCRIPTIONS



         The 40G QSFP+ SWDM4 transceiver modules are designed for use in transceiver modules are designed for use in 40G Ethernet links over duplex multimode fiber. Four channels/lanes in the 850-940nm region @ 10Gbps to transport the Ethernet signal. Digital diagnostics functions are available via an I2C interface, as specified by the QSFP+ MSA.



PRODUCT FEATURES

Compliant with QSFP+ MSA

Compliant with SWDM MSA

Compliant with SFF-8636

Compliant with IEEE 802.3ba

Hot-pluggable QSFP+ form factor

4x10Gb/s VCSEL-based SWDM transmitter

Supports 41.2Gbps aggregate bit rate

Power dissipation<3.5W

Maximum link length of 240m on OM3 MMF and 350m on OM4 MMF

Case temperature range of 0°C to 70°C

Duplex LC receptacles

XLPPI electrical interface

RoHS compliant



APPLICATIONS

40G Ethernet over Duplex MMF

Datacom/Telecom switch & router connections

Data aggregation and backplane applications

Proprietary protocol and density applications



QSFP SERIES



Part Number Product Description
HL-QSFP-40G-SR4 QSFP+,40Gb/s, 40GBASE-SR4, MMF, 850nm, 150M
HL-QSFP-40G-LR4 QSFP+, 40Gb/s, 40GBASE-LR4, SMF, 1310nm, 10KM
HL-QSFP-40G-ER4 QSFP+, 40Gb/s, 40GBASE-ER4, SMF, 1310nm, 40KM
HL-QSFP28-100G-SR4 QSFP+, 100Gb/s, 100GBASE-SR4, MMF, 850nm, 150M
HL-QSFP28-100G-LR4 QSFP+, 100Gb/s, 100GBASE-LR4, SMF, 1310nm, 10KM
HL-QSFP28-100G-ER4 QSFP+, 100Gb/s, 100GBASE-ER4, SMF, 1310nm, 40KM
HL-QSFP28-100G-ZR4 QSFP+, 100Gb/s, 100GBASE-ZR4, SMF, 1310nm, 80KM

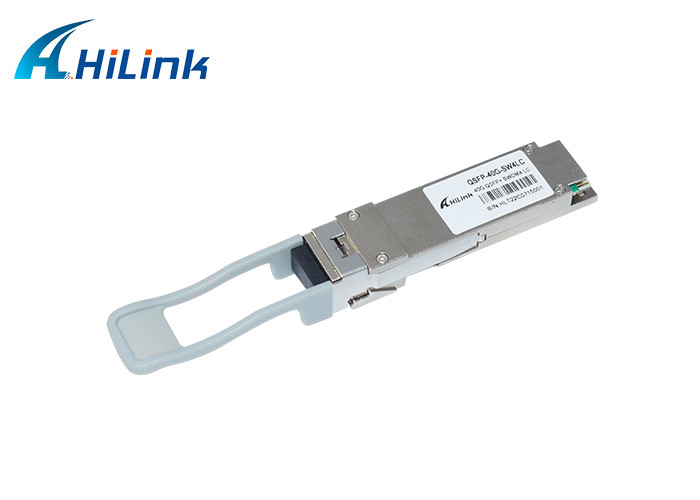

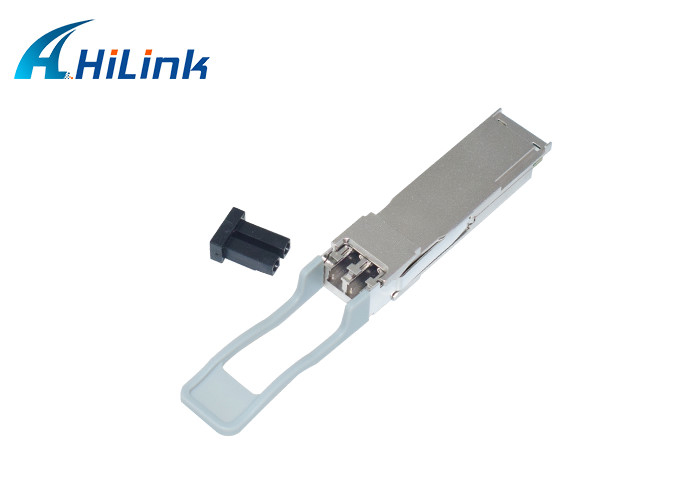

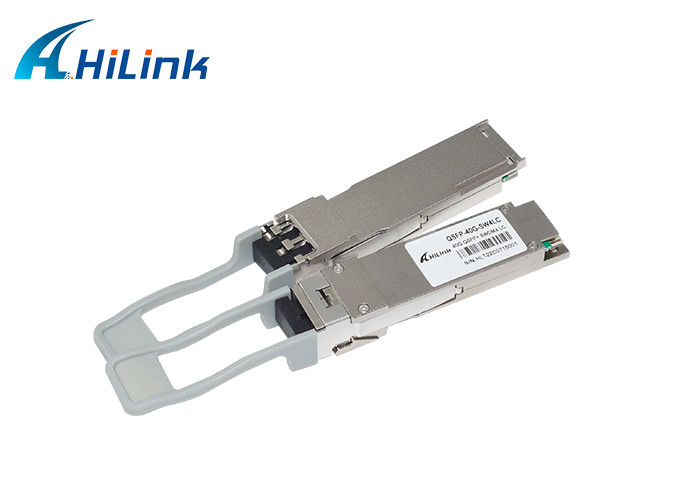

PRODUCT PICTURE SHOW

40G QSFP+ Transceiver Module SWDM4 850nm OM3 DOM DDM 040G QSFP+ Transceiver Module SWDM4 850nm OM3 DOM DDM 140G QSFP+ Transceiver Module SWDM4 850nm OM3 DOM DDM 240G QSFP+ Transceiver Module SWDM4 850nm OM3 DOM DDM 3





FAQ:



Q: Do you sell second-hand products?

A: No.All our products are brand new,we never use secont-hand components.



Q: What payment terms do you accept?

A: T/T,Paypal,Western Union are acceptable.



Q: What are the shipping ways can you offer?

A: Our usual shipping ways are DHL,FedEX,TNT,UPS,EMS etc.It will take 3-7days.



Q: Do your products come with warranty?

A: Yes,We provide 3 years warranty for all our products from the date of shipment.



Q: How to place an order?

A: 1> Order details confirmed,please tell us the model and quantity you need.
2> Proforma Invoice confirmed, the order will be arranged upon receipt of your payment.
3> Confirm and ship the goods, then tracking number will be sent to you promptly.
4> We will help to track your goods until you receive them safely.
