Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | HILINK |
| Certification: | CE FCC Rohs |
| Model Number: | HL-QSFP-40G-SW4LC |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | Static bag, Plastic Flat, Retail box, by requires |
| Payment Terms: | L/C, T/T, Western Union.Paypal |
| Supply Ability: | 100/PCS/MONTH |
|
Detail Information |
|||
| Type: | 40GBASE QSFP SWDM 850nm | Temperature: | 0-70℃ |
|---|---|---|---|
| Wavelength: | 850nm | Connector: | Duplex LC Connector |
| Product Name: | QSFP Transceiver | CE FCC: | Support |
| High Light: | QSFP+ SWDM4 Optical Transceiver,40G Ethernet Duplex Optical Transceiver,Optical Transceiver For Data Center |
||
Product Description
40G QSFP+ SWDM4 Optical Transceiver 40G Ethernet Duplex MMF For Data Center
PRODUCT DESCRIPTIONS
PRODUCT FEATURES
Compliant with QSFP+ MSA
Compliant with SWDM MSA
Compliant with SFF-8636
Compliant with IEEE 802.3ba
Hot-pluggable QSFP+ form factor
4x10Gb/s VCSEL-based SWDM transmitter
Supports 41.2Gbps aggregate bit rate
Power dissipation<3.5W
Maximum link length of 240m on OM3 MMF and 350m on OM4 MMF
Case temperature range of 0°C to 70°C
Duplex LC receptacles
XLPPI electrical interface
RoHS compliant
APPLICATIONS
40G Ethernet over Duplex MMF
Datacom/Telecom switch & router connections
Data aggregation and backplane applications
Proprietary protocol and density applications
QSFP SERIES
| Part Number | Product Description | |
| HL-QSFP-40G-SR4 | QSFP+,40Gb/s, 40GBASE-SR4, MMF, 850nm, 150M | |
| HL-QSFP-40G-LR4 | QSFP+, 40Gb/s, 40GBASE-LR4, SMF, 1310nm, 10KM | |
| HL-QSFP-40G-ER4 | QSFP+, 40Gb/s, 40GBASE-ER4, SMF, 1310nm, 40KM | |
| HL-QSFP28-100G-SR4 | QSFP+, 100Gb/s, 100GBASE-SR4, MMF, 850nm, 150M | |
| HL-QSFP28-100G-LR4 | QSFP+, 100Gb/s, 100GBASE-LR4, SMF, 1310nm, 10KM | |
| HL-QSFP28-100G-ER4 | QSFP+, 100Gb/s, 100GBASE-ER4, SMF, 1310nm, 40KM | |
| HL-QSFP28-100G-ZR4 | QSFP+, 100Gb/s, 100GBASE-ZR4, SMF, 1310nm, 80KM | |

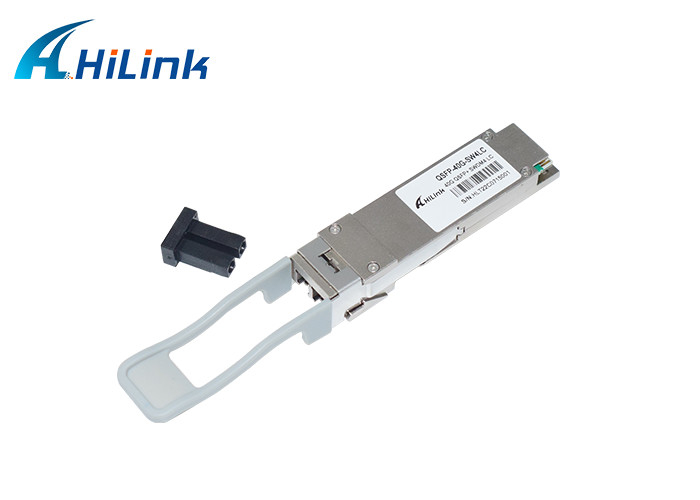

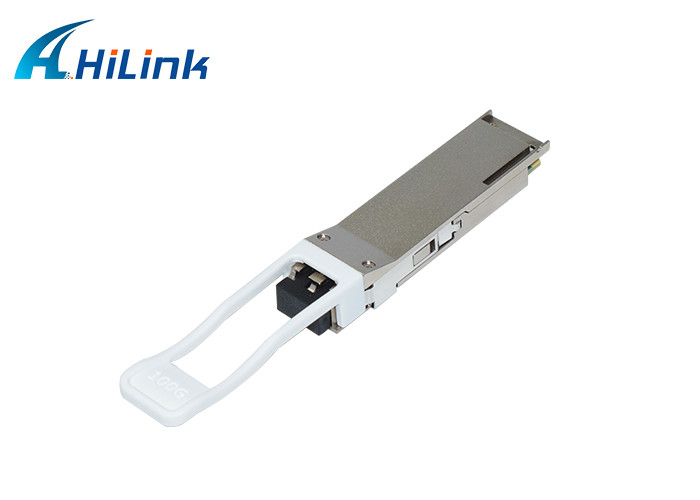

PRODUCT PICTURE SHOW
FAQ:
Q: Do you sell second-hand products?
A: No.All our products are brand new,we never use secont-hand components.
Q: What payment terms do you accept?
A: T/T,Paypal,Western Union are acceptable.
Q: What are the shipping ways can you offer?
A: Our usual shipping ways are DHL,FedEX,TNT,UPS,EMS etc.It will take 3-7days.
Q: Do your products come with warranty?
A: Yes,We provide 3 years warranty for all our products from the date of shipment.
Q: How to place an order?
A: 1> Order details confirmed,please tell us the model and quantity you need.
2> Proforma Invoice confirmed, the order will be arranged upon receipt of your payment.
3> Confirm and ship the goods, then tracking number will be sent to you promptly.
4> We will help to track your goods until you receive them safely.
