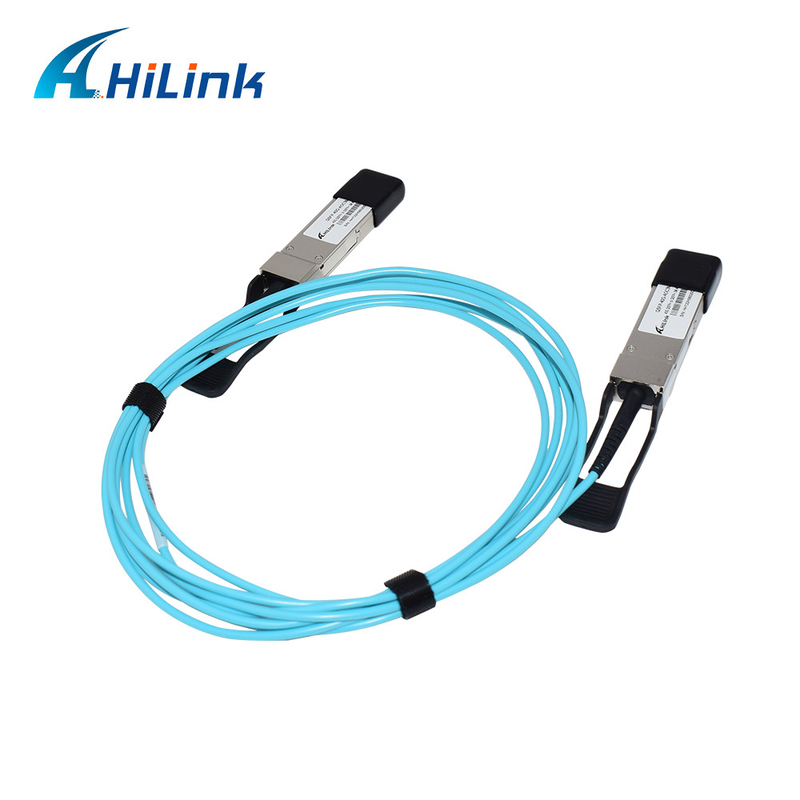

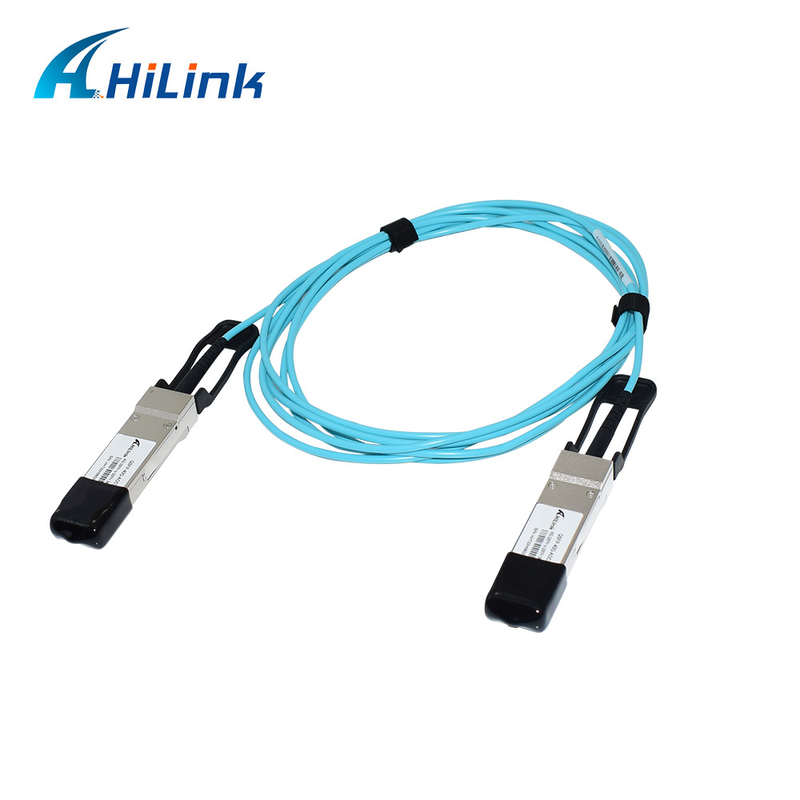

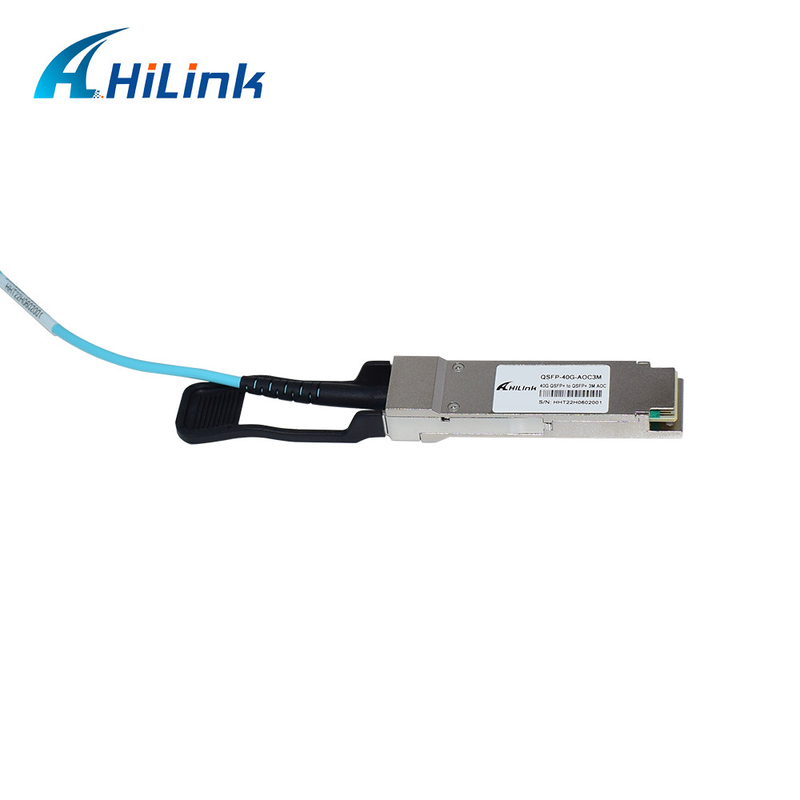

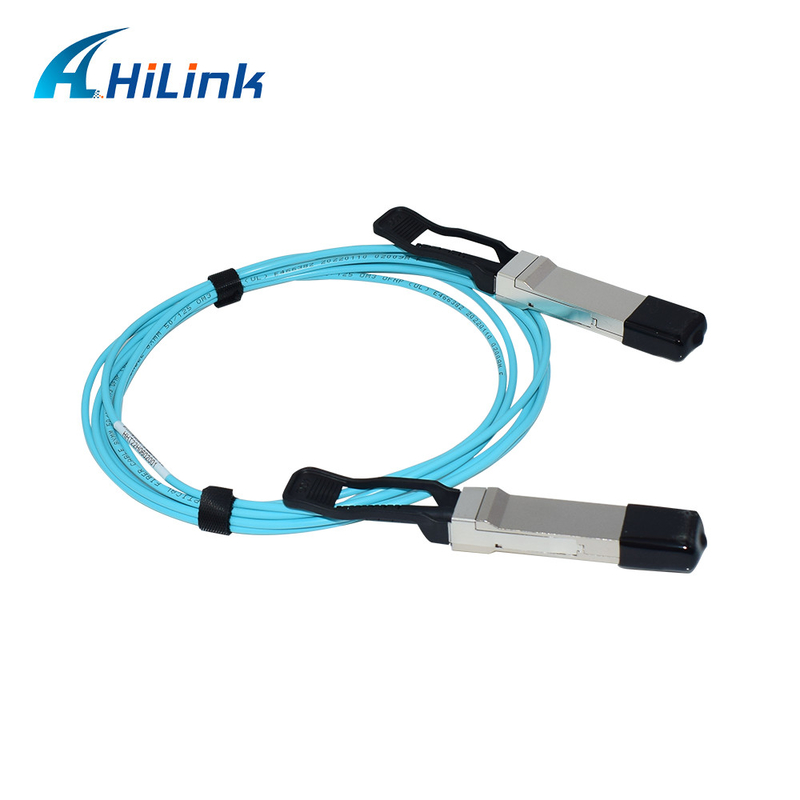

40G QSFP+ 3M Active Optical Cable 3m AOC QSFP-H40G-AOC1M

40G QSFP+ 3M Active Optical Cable 3m AOC QSFP-H40G-AOC1M

Product Details:

Place of Origin: China
Brand Name: HILINK
Certification: CE FCC Rohs
Model Number: HL-40G-AOC-3M

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Static bag, Plastic bag, Retail box or by required
Delivery Time: 5-7 days
Payment Terms: L/C, T/T, Western Union,Paypal
Supply Ability: 100pcs/week
Get Best Price Contact Now

Detail Information

Product Name: 40G QSFP AOC Data Transfer Rate: 40G
Length: 3m Or Customizted Warranty: 1 Year
Compatible: Cisco,Huawei,Finisar,Dlink Etc Application: Telecommunication
High Light:

QSFP+ 3M Active Optical Cable

,

3m AOC Active Optical Cable

,

Telecommunication Active Optical Cable

Product Description

Amazon Hot Sale Active Optical Cable 40G QSFP+ 3M 40G QSFP to QSFP AOC



QSFP active optical cables are a high performance, low power consumption, long reach interconnect solution supporting 40G Ethernet, fiber channel and PCIe. It is compliant with the QSFP MSA and IEEE P802.3ba 40GBASE-SR4. Fiberise QSFP AOC is an assembly of 4 full-duplex lanes, where each lane is capable of transmitting data at rates up to 10Gb/s, providing an aggregated rate of 40Gb/s.



Features

Connector 1: QSFP+ AOC

Connector 2: QSFP+ AOC

Supports 41.25Gb/s aggregate bit rate

4 channels 850nm VCSEL array

4 channels PIN photo detector array

1.5W maximum power dissipation per end

Maximum link length of 300m on OM3 MMF or 400m on OM4 MMF

QSFP+ MSA-compliant high-density connectors

Built-in digital diagnostic functions

Single 3.3V power supply

RoHS 6 compliant (lead free)


Specifications

Length: 10 Meters

Connector A: QSFP Active

Connector B: QSFP Active

Channels: 4 Lanes, bi-directional

Data Rate: 1 to 10.3125 Gbps/channel

Cable Type: SMF(Single Mode Fiber)

Supply Voltage: 3.1 to 3.5V

Storage Temperature: -20 to 85 ºC

Operating Temperature: 0 to 70 ºC

Humidity (non-condensing): 5% to 95%


Applications

InfiniBand SDR, DDR, QDR

Hubs, switches, routers, servers

Ethernet 10G,40G

4-channels 10Gb Ethernet or 8.5Gb Fiber Channel transmission

SAS, SATA 3G, 6G

Fibre Channel SAN 10G,20G, 40G

Myrinet 40G

Optical Backplanes

Rack-to-Rack, Shelf-to-Shelf Interconnect

Proprietary Cluster Interconnect

Data Centers


Standards Compliance

SFF-8431

SFF-8436

FCC Class B

EN55022: 2006 (Class B)

EN/IEC 61000-4-3

Safety: UL, CSA, CE

RoHS 6



Product Picture Show

40G QSFP+ 3M Active Optical Cable 3m AOC QSFP-H40G-AOC1M 040G QSFP+ 3M Active Optical Cable 3m AOC QSFP-H40G-AOC1M 140G QSFP+ 3M Active Optical Cable 3m AOC QSFP-H40G-AOC1M 2

QSFP Cable Series

Part Number Description
HL-QSFP+40G-Optical cable
HL-QSFP-40G-AOC1M QSFP+ to QSFP+, Active optical cable 1M
HL-QSFP-40G-AOC3M QSFP+ to QSFP+, Active optical cable 3M
HL-QSFP-40G-AOC5M QSFP+ to QSFP+, Active optical cable 5M
HL-QSFP-40G-AOC7M QSFP+ to QSFP+, Active optical cable 7M
HL-QSFP-40G-AOC10M QSFP+ to QSFP+, Active optical cable 10M
HL-QSFP-40G-AOC20M QSFP+ to QSFP+, Active optical cable 20M
HL-QSFP-40G-AOC30M QSFP+ to QSFP+, Active optical cable 30M
HL-QSFP-40G-AOC50M QSFP+ to QSFP+, Active optical cable 50M
HL-QSFP-40G-AOC100M QSFP+ to QSFP+, Active optical cable 100M
HL-QSFP+40G Copper Cable
HL-QSFP-H40G-CU1M QSFP+ to QSFP+ Passive Copper Cable 1M
HL-QSFP-H40G-CU2M QSFP+ to QSFP+ Passive Copper Cable 2M
HL-QSFP-H40G-CU3M QSFP+ to QSFP+ Passive Copper Cable 3M
HL-QSFP-H40G-CU4M QSFP+ to QSFP+ Passive Copper Cable 4M
HL-QSFP-H40G-CU5M QSFP+ to QSFP+ Passive Copper Cable 5M
HL-QSFP-H40G-ACU7M QSFP+ to QSFP+ Active Copper Cable
HL-QSFP-H40G-ACU10M QSFP+ to QSFP+ Active Copper Cable
HL-QSFP-4SFP+ Copper Cable
HL-QSFP-4SFP10G-CU0.5M QSFP+ to 4SFP+ Passive Copper Cable 0.5M
HL-QSFP-4SFP10G-CU1M QSFP+ to 4SFP+ Passive Copper Cable 1M
HL-QSFP-4SFP10G-CU3M QSFP+ to 4SFP+ Passive Copper Cable 3M
HL-QSFP-4SFP10G-CU5M QSFP+ to 4SFP+ Passive Copper Cable 5M
HL-QSFP-4SFP+ Optical cable
HL-QSFP-4SFP10G-AOC1M QSFP+ to 4SFP+ Active optical cable 1M
HL-QSFP-4SFP10G-AOC3M QSFP+ to 4SFP+ Active optical cable 3M
HL-QSFP-4SFP10G-AOC5M QSFP+ to 4SFP+ Active optical cable 5M
HL-QSFP-4SFP10G-AOC7M QSFP+ to 4SFP+ Active optical cable 7M
HL-QSFP-4SFP10G-AOC10M QSFP+ to 4SFP+ Active optical cable 10M
