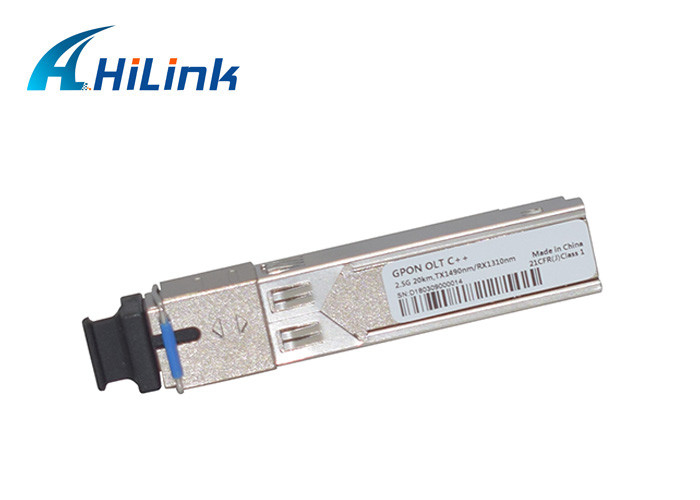

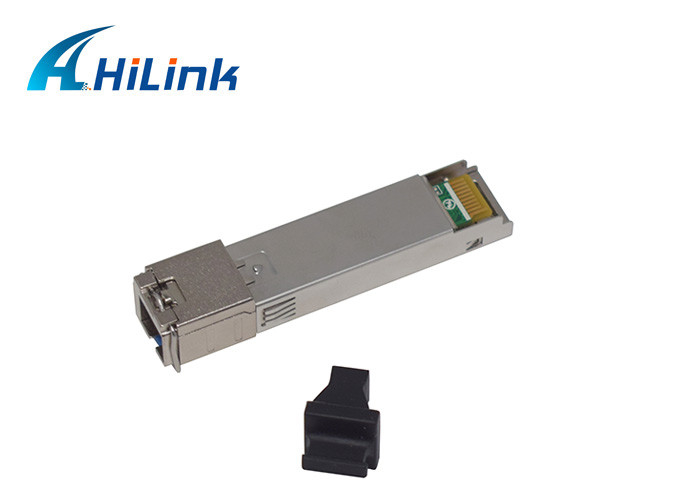

GPON OLT C++ 20km SFP BI Transceiver Module TX 1490nm 2.488Gbps RX 1.244Gbps
GPON OLT C++ 20km SFP BI Transceiver Module TX 1490nm 2.488Gbps RX 1.244Gbps GPON OLT C++ 20km SFP BI Transceiver Module TX 1490nm 2.488Gbps RX 1.244Gbps GPON OLT C++ 20km SFP BI Transceiver Module TX 1490nm 2.488Gbps RX 1.244Gbps GPON OLT C++ 20km SFP BI Transceiver Module TX 1490nm 2.488Gbps RX 1.244Gbps GPON OLT C++ 20km SFP BI Transceiver Module TX 1490nm 2.488Gbps RX 1.244Gbps

GPON OLT C++ 20km SFP BI Transceiver Module TX 1490nm 2.488Gbps RX 1.244Gbps

Product Details:
Brand Name: Hilink
Certification: CE Rohs
Model Number: GPON OLT C++
Payment & Shipping Terms:
Minimum Order Quantity: 1 pieces
Price: Need to negotiate
Packaging Details: Plastic box+Carton
Delivery Time: 5-8 working day
Payment Terms: T/T, Western Union,Alipay, Paypal/Wechat/Trade Assurance
Supply Ability: 2000 Pieces/Week
Contact Now
  • Detail Information
  • Product Description

Detail Information
Place Of Origin: Guangdong, China Use: Data Center
Data Rate: 1.25G/2.5G Connector: SC/UPC
Distance: 20km Wavelength: 1310/1490
Brand: Hilink Warranty: 3 Years
Package: Plastic Box Temperature: 0-70
High Light:

SFP BI Transceiver Module

,

TX 1490nm Transceiver Module

,

1.244Gbps Transceiver Module

Product Description

GPON OLT C++, 20km, TX 1490nm 2.488Gbps, RX 1310nm 1.244Gbps, SFP, BIDI SC/UPC Receptacle, Commercial Temperature

Product Description

Features

  • Single fiber bi-directional data links asymmetric TX 2488Mbps/RX1244Mbps application
  • 1490nm continuous-mode DFB laser transmitter and 1310nm burst-mode APD-TIA receiver
  • Small Form Factor Pluggable package with SC/UPC Connector
  • 0 to 70°C operating temperature
  • Single 3.3V power supply
  • Digital diagnostic monitoring interface
  • Digital burst RSSI function to monitor the input optical power level
  • LVPECL compatible data input/output interface
  • LVTTL transmitter disable control
  • LVTTL transmitter laser fault alarm
  • Fast LVTTL receiver Signal Detect (SD) indication response
  • Low EMI and excellent ESD protection
  • Class I laser safety standard IEC-60825 compliant
  • RoHS6 Compliance



Applications

  • Gigabit-capable Passive Optical Networks (GPON)



Standards

  • Complies with SFP Multi-Source Agreement (MSA) SFF-8074i
  • Complies with ITU-T G.984.2 Amendment 1
  • Complies with FCC 47 CFR Part 15, Class B
  • Complies with FDA 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007
  • Complies with SFF-8472
  • Compatible with TR-NWT-000870 4.1 ESD sensitivity classification Class2.

Compatible with Telcordia GR-468-CORE



Ordering information

Part. No Specifications
Package Class

Temperature

(°C)

Reach

(km)

 DDM
GPON-OLT-B+ SFP GPON OLT Class B+ -5~70 20 Y
GPON-OLT-B+ IT SFP GPON OLT Class B+ -40~85 20 Y
GPON-OLT-C+ SFP GPON OLT Class C+ -5~70 20 Y
GPON-OLT-C+ IT SFP GPON OLT Class C+ -40~85 20 Y
GPON-OLT-C++ SFP GPON OLT Class C++ -5~70 20 Y
GPON-OLT-C+++ SFP GPON OLT Class C+++ 7dBm -5~70 20 Y






Optical transmitter Characteristics
Parameter Symbol Min Typical Max Unit Notes
Launched Power (avg.) POUT +1.5   +5 dBm GPON-OLT-B+
    +3   +7   GPON-OLT-C+
    +4.5   +8   GPON-OLT-C++
    +6 +7 +10   GPON-OLT-C+++
Operating Wavelength Range λC 1480   1500 nm
Spectral Width (-20dB) ∆λ     1 nm
Side Mode Suppression Ratio SMSR 30
Extinction Ratio ER 8.2     dB PRBS 223-1+72CID @2.488Gbit/s
Transmitter and Dispersion Penalty TDP     1 dB Transmit on 20km SMF
Optical Output Power after TX Disable PDIS     -39 dBm
Output Eye Diagram Compliant with ITU-T G.984.2
Transmitter Reflectance       -10 dB
Optical Receiver Characteristics
Parameter Symbol Min Typical Max Unit Notes
Wavelength Range λC 1260   1360 nm
Receiver Sensitivity SEN     -28 dBm GPON-OLT-B+
        -30   GPON-OLT-C+
        -32   GPON-OLT-C++
        -32   GPON-OLT-C+++
Optical Power Input Overload SAT -8     dBm GPON-OLT-B+
    -12       GPON-OLT-C+
    -15       GPON-OLT-C++
    -15       GPON-OLT-C+++
Dynamic Range   15     dB Figure 1
Receiver Reflectance       -15 dB


Note 1: PRBS 223-1+72CID @1244Mbps, transmitter is operating, BER ≤1×10-10

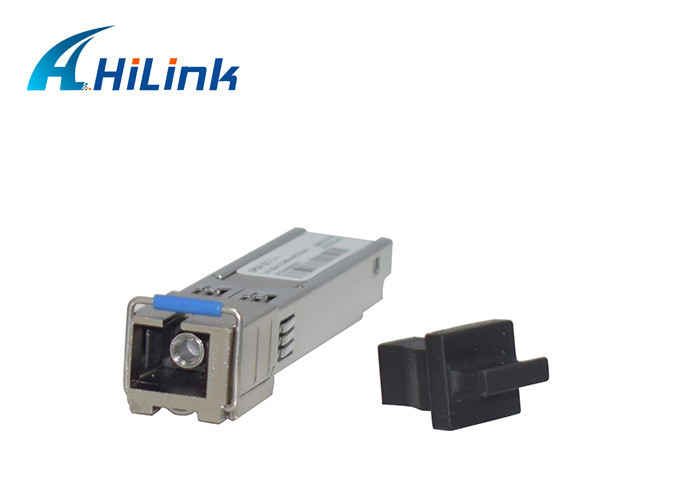

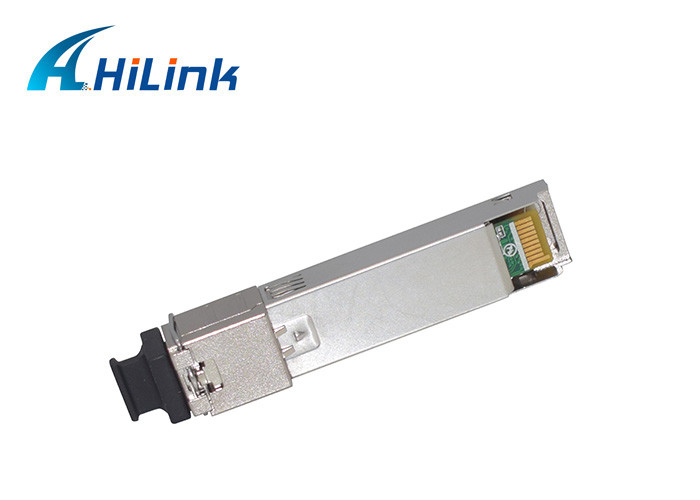

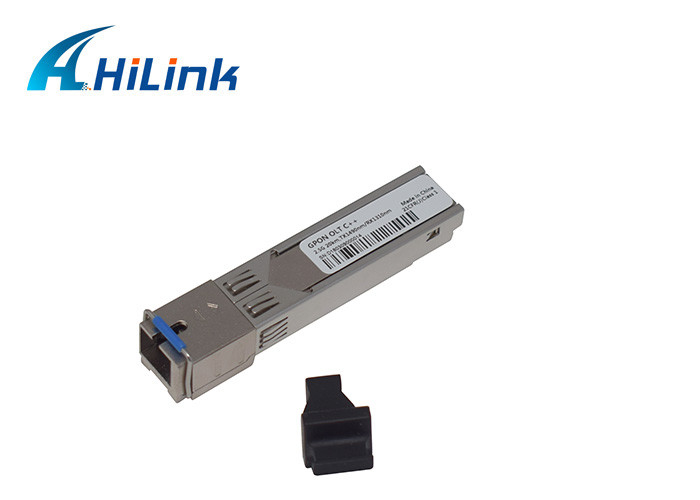

Real Picture





















GPON OLT C++ 20km SFP BI Transceiver Module TX 1490nm 2.488Gbps RX 1.244Gbps 0

GPON OLT C++ 20km SFP BI Transceiver Module TX 1490nm 2.488Gbps RX 1.244Gbps 1

GPON OLT C++ 20km SFP BI Transceiver Module TX 1490nm 2.488Gbps RX 1.244Gbps 2



























Package & Shipping

We provide safe and reliable packaging:Plastic box+Carton
Delivery time:2-5 working days

International Express: DHL, FedEx,EMS,TNT, UPS and so on. It takes 3-7 days.



Our Service

OEM/ODM order is available



We promise all the advertised optical modules are brand new and absolutely never use old and refurbished materials. All the optical modules have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.
