|Place of Origin:||China|
|Certification:||CE FCC Rohs|
Payment & Shipping Terms:
|Minimum Order Quantity:||1pcs|
|Packaging Details:||Blister Packaging, 10pcs/ tray|
|Delivery Time:||3-6 days|
|Payment Terms:||T/T, Western Union|
|Supply Ability:||100pcs/ week|
|Form Type:||XFP||Wavelength:||DWDM Wavelength|
|Data Rate:||10Gbs||Optical Components:||Eml Dwdm|
|Cable Type:||SMF||DOM Support:||Yes|
|TX Power:||0-4dBm||Temperature Range:||0 To 70°C|

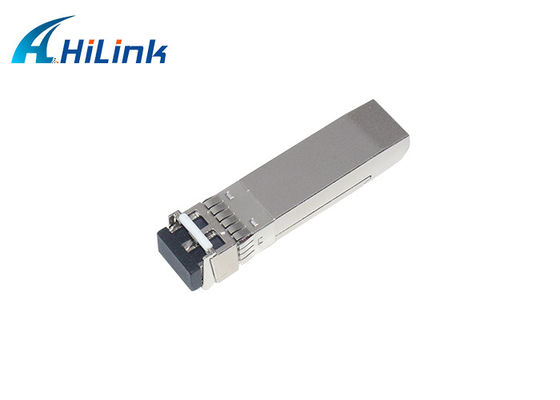

DWDM SFP+ Transceiver Module,
10Gbps ZR SFP+ Transceiver Module,
5G Data Center SFP+ Transceiver Module
Hilink DWDM SFP/SFP+ optical transceiver series conform to the international standards (ITU-T and IEEE), and strictly follow the MSA
(Multi-Source Protocol), which are compatible with the interfaces of all brands optical equipment manufacturers.
They are widely used in optical transport network (DWDM/OTN equipment), 5G back haul and front haul network, and cloudy, data center interconnection.
DWDM upto 10GBASE-ZR/ZW (with/without FEC)
10G Fiber Channel (with/without FEC)
DWDM PON network
Spectral Attenuation Measurement
WDM systems are divided into different wavelength patterns, conventional/coarse (CWDM) and dense (DWDM). Conventional WDM systems provide up to 8 channels in the 3rd transmission window (C-Band) of silica fibers around 1550nm.
Dense wavelength division multiplexing (DWDM) uses the same transmission window but with denser channel spacing. Channel plans vary, but a typical system would use 40 channels at 100 GHz spacing or 80 channels with 50 GHz spacing.
Dense wavelength division multiplexing (DWDM) refers originally to optical signals multiplexed within the 1550nm band so as to leverage the capabilities (and cost) of erbium doped fiber amplifiers (EDFAs), which are effective for wavelengths between approximately 1525–1565nm (C band), or 1570–1610nm (L band).
